3. Cabinet Front and Optical Filter Removal
4. Panel Module Removal
Fig. 6
1) Proceed 1 to 3 to remove Cabinet Back,
Chassis and Cabinet Front.
2) Remove screws (8pcs) of Chassis Base and take it
from Panel Module.
(Fig. 7)
Note: Units of Fig.8 are included with Panel for PDP
Module. Do not remove them from Panel. For
removal of Panel, it is necessary to change
these all units together. Main Power Module is
included with Panel Module too. Do not
remove Main Power Module from Panel Module.

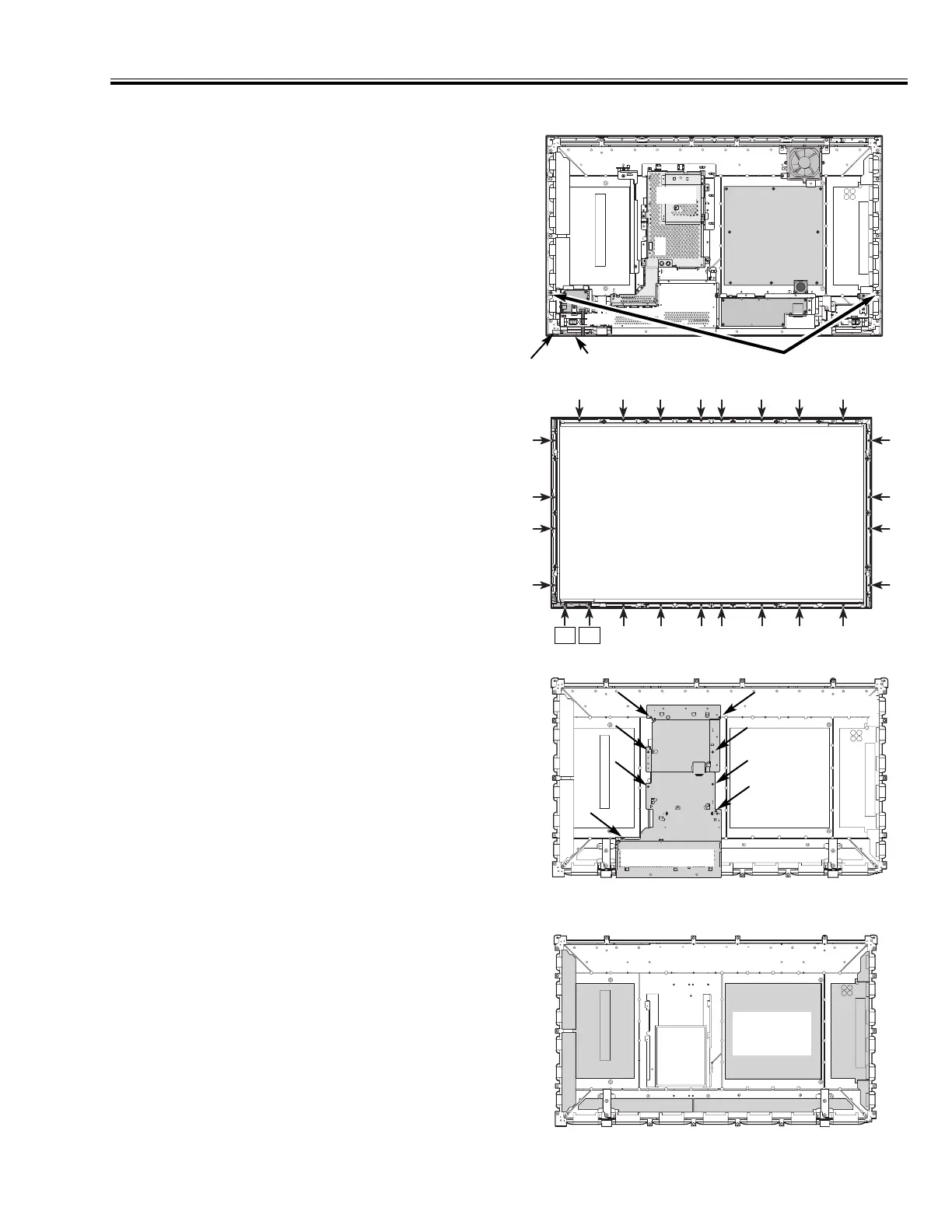

Mechanical Disassemblies
Fig. 5
Mounting Filter Plate-U
Mounting Filter Plate-D
Mounting Filter Plate-L
Mounting Filter Plate-R
C1
C1
Cabinet Front includes Optical Filter to protect the dam-
age of Panel, improve picture quality, or prevent expo-
sure of interference.
Note: The Optical Filter is easy to be damaged. Do not
touch directly by hand. If there is the dust,
remove it by watery neutral detergent.
3-1 Cabinet Front Removal (Fig. 5)
1) Remove the lead wire of Control board from Main
Board (K8J).
2) Remove the lead wire of Membrane Switch from
Jack-B board (K1104).
✽ Membrane Switch is fixed on the Cabinet Front by
two-sided tape.
3) Remove screws (2pcs) of Fig.5 and take Cabinet
Front off.
3-2 Control Board and Optical Filter Removal
(Fig. 6)
1) Remove screws (C1: 2pcs, Others: 7pcs) of
Mounting Filter Plate-D and take Mounting Filter
Plate-D and Control Board off.
2) Remove screws (16pcs) of Mounting Filter Plate-A,
B and C and take Mounting Filter Plate-A, B and C
and Optical Filter off.
Control
Membrane
Switch
Main
K8J
K1104
Fig. 7
Chassis Base
PDP Module
Fig. 8
PDP Module
Main Power
Module
To Next Page
