Installation
Connecting to Video Equipment
Cables used for connection
• Video and Audio Cable (RCA x 3) ✽
• S-VIDEO Cable ✽
• Audio Cable (Mini Plug: stereo) ✽
(✽ = Not supplied with this projector.)
Note:
When connecting the cable, the power cords of both the projector and
the external equipment should be disconnected from AC outlet.
✔Note:
• If both the S-VIDEO jack and the VIDEO jack are connected at the same time when
AUTO is chosen in the Input Menu, the S-VIDEO jack will override the signal from
the VIDEO jack.
• When connecting AUDIO OUT to external audio equipment, the projector's built-in
speaker is disconnected.

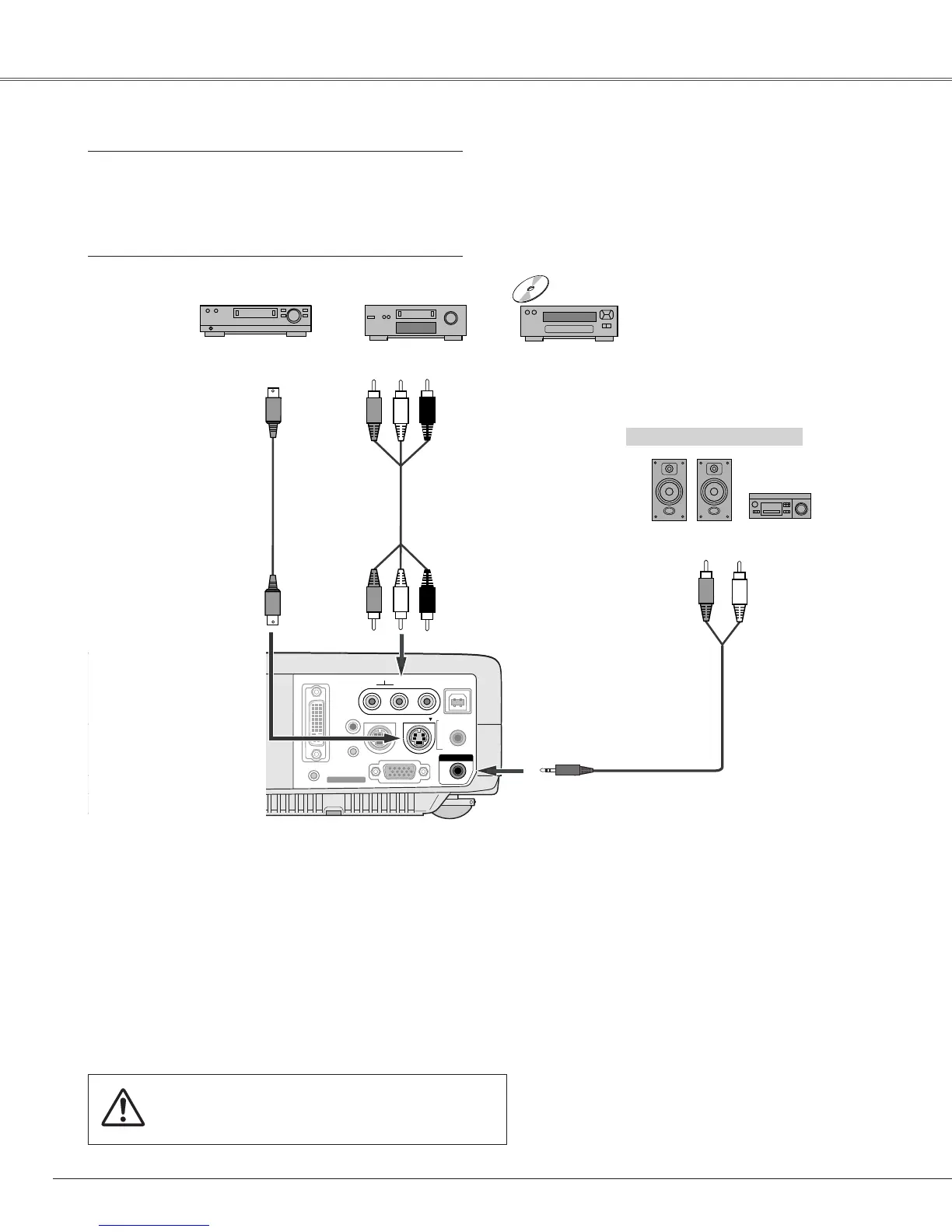

External Audio Equipment
Audio cable ✽
(stereo)
VIDEOS-VIDEO
S-Video cable ✽
Video and audio cable✽
Composite Video and
Audio Output
S-Video Output
AUDIO IN
Audio Input
AUDIO OUT
(stereo)
(R)
(L)
(R) (L) (Video)
