Sanyo PLC-XD2200 - Dimensions

77
Appendix

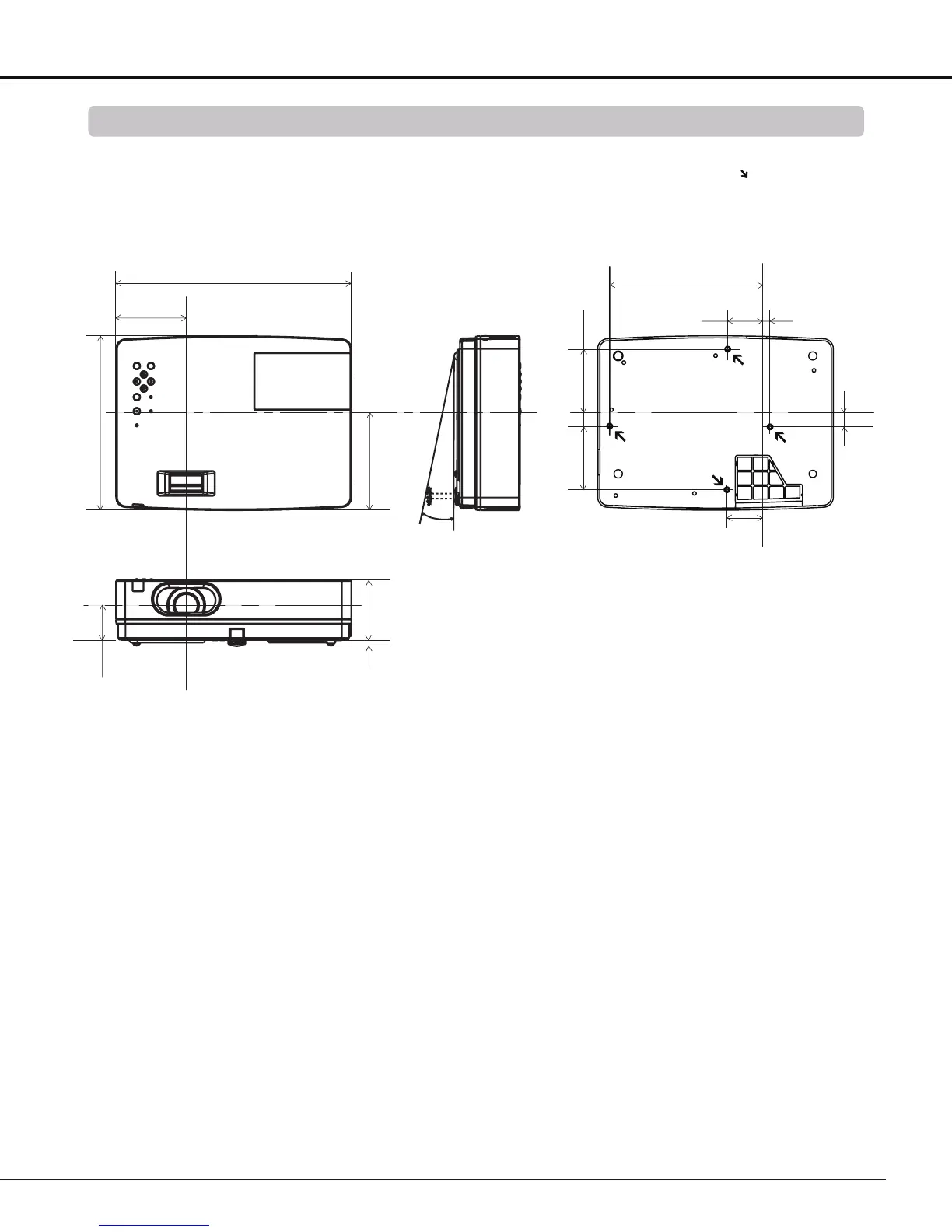

Dimensions
Unit: mm(inch)
Screw Holes for Ceiling Mount
Screw: M4
Depth: 10.0(0.39)
99.5
(3.92)
46.0 (1.81)
9.0 (0.35)
85.2 (3.35)
138.0 (5.43)
247.0 (9.72)
333.5
(13.13)
º
10 MAX
50.0
(1.97)
90.0 (3.54)
19.0 (0.75)
90.0 (3.54)
217.0
(8.54)
51.0
(2.01)
10.0
(0.39)
20.0 (0.79)
