-16-

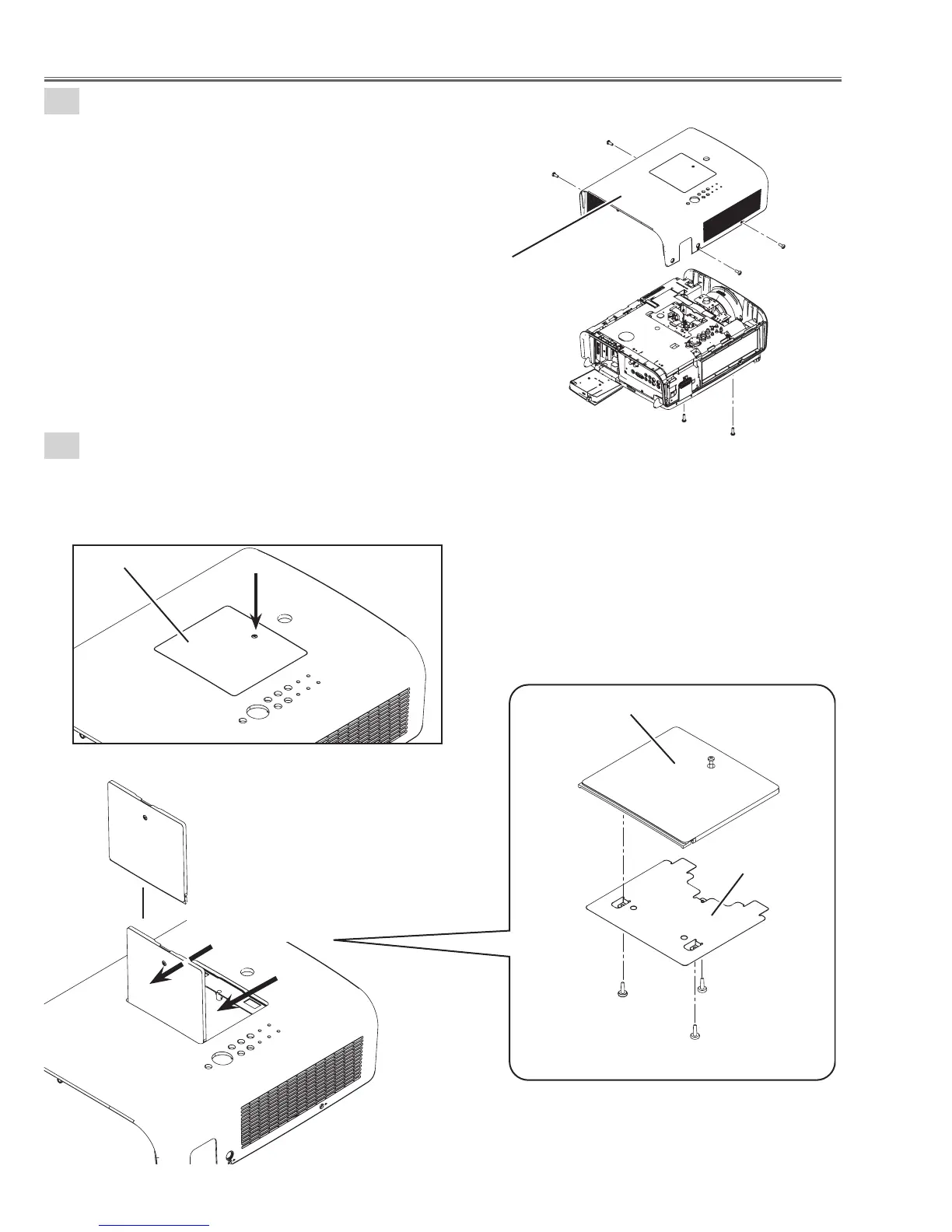

Mechanical Disassembly
Fig. 1-4
Fig. 1-4a
Fig. 1-3
A
B
B
B
A
A
A
A
A
Cabinet top ass'y
A
Prism cover panel
1. Remove 6 screws-A(M3X8) and remove the Cabinet top
ass'y.
Prism cover panel
Shield plate
1-3
Cabinet top ass'y removal-3.
1-4
Cabinet top ass'y removal-4.
1. Loosen screw-A(M3X11) and open the Prism cover panel.
(Press 2 places (unhook) and remove the Prism cover panel upward.)
2. Remove 3 screws-B(T3X8) and remove the shield plate.
Press the 2 places
(unhook) and upward

Sanyo PLC-XT20 Specifications

General

Projection technology	LCD
Contrast ratio (typical)	1000:1
Projector native resolution	XGA (1024x768)
Resolution	1024 x 768 pixels
Dimensions (WxDxH)	302 x 422 x 162 mm
Display diagonal	1 \
Lamp type	UHP
Lamp power	300 W
Light source type	Lamp
Market positioning	Portable

Weight and Dimensions

Weight	9200 g
