Sanyo PLC-XT20 User Manual

-17-
Mechanical Disassembly
2

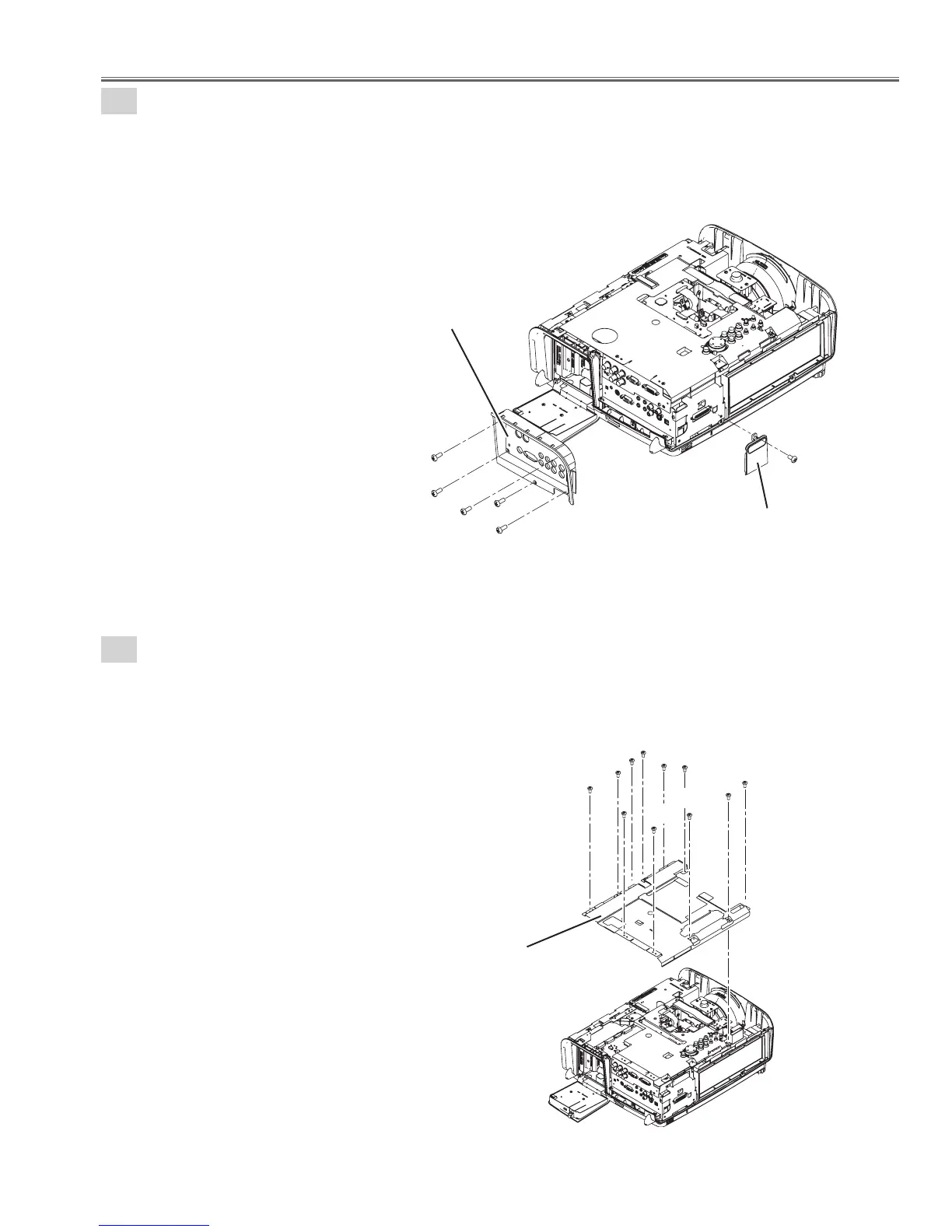

AV Panel and Side Panel removal.
1. Remove 5 screws-A(M3X8) and remove the AV Panel.
2. Remove 1 screw-B(M3X6) and remove the Side Panel.
Fig. 2
Fig. 3
3
Shield plate top-A removal.
1. Remove 11 screws-A(M3X6) and remove the Shield plate top-A.
A
A
A
A
A
A
A
A
A
A
A
A
A
A
B
Side panel
Shield plate top-A
AV panel
A
A

Sanyo PLC-XT20 Specifications

General

Projection technology	LCD
Contrast ratio (typical)	1000:1
Projector native resolution	XGA (1024x768)
Resolution	1024 x 768 pixels
Dimensions (WxDxH)	302 x 422 x 162 mm
Display diagonal	1 \
Lamp type	UHP
Lamp power	300 W
Light source type	Lamp
Market positioning	Portable

Weight and Dimensions

Weight	9200 g
