Sanyo PLC-XT20 User Manual

-20-
Mechanical Disassembly
5

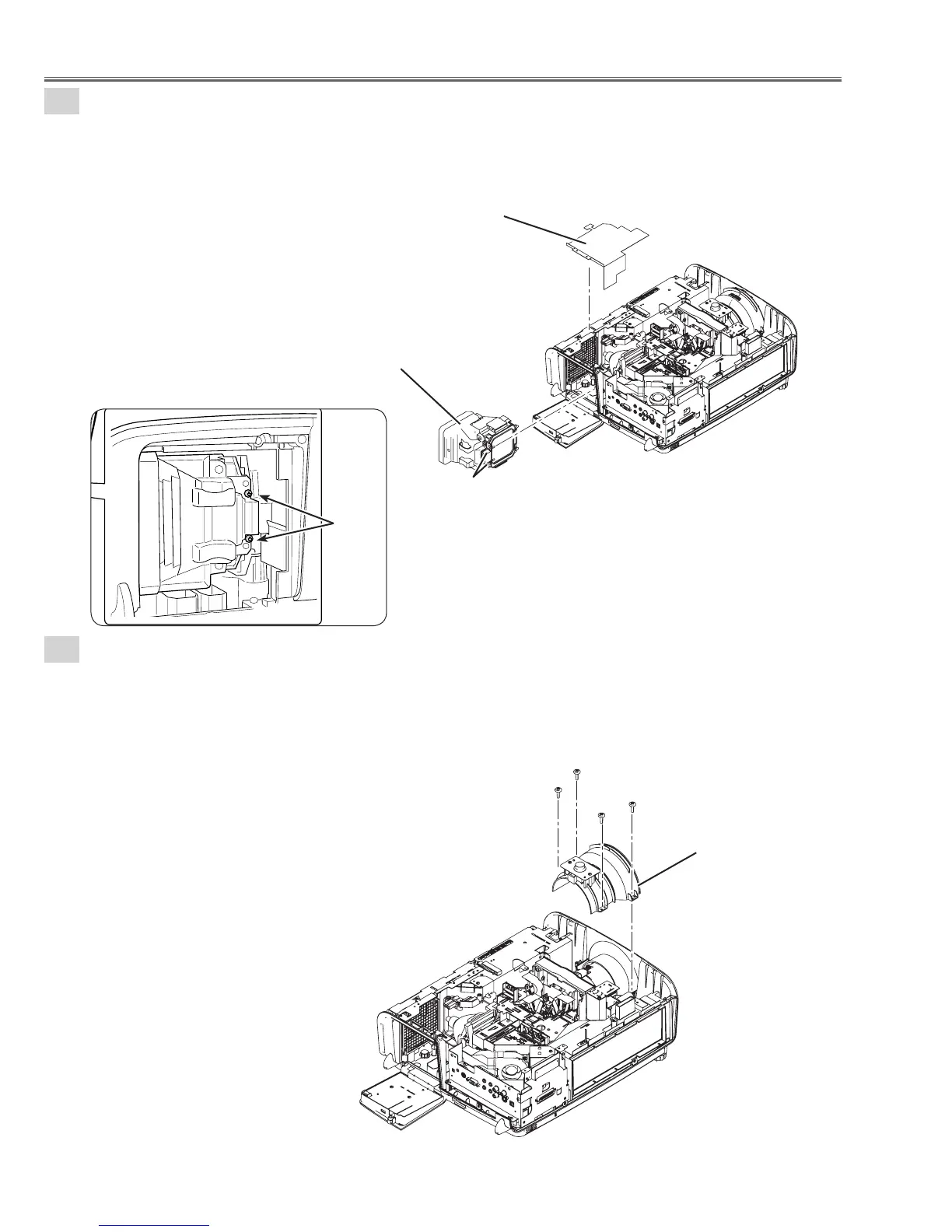

Lamp ass'y removal.
1. Loosen 2 screws-A(M3X13) and remove the Lamp ass'y.
2. Remove the Spacer sheet.
6-1
Lens cover ass'y removal-1.
1. Remove 4 screws-A(T3X8) and remove the Lens cover ass'y.
Fig. 5
A
Spacer sheet
Lamp ass'y
A
A
A
A
Fig. 6-1
Lens cover ass'y
A

Sanyo PLC-XT20 Specifications

General

Projection technology	LCD
Contrast ratio (typical)	1000:1
Projector native resolution	XGA (1024x768)
Resolution	1024 x 768 pixels
Dimensions (WxDxH)	302 x 422 x 162 mm
Display diagonal	1 \
Lamp type	UHP
Lamp power	300 W
Light source type	Lamp
Market positioning	Portable

Weight and Dimensions

Weight	9200 g
