-21-
Mechanical Disassembly
6-2

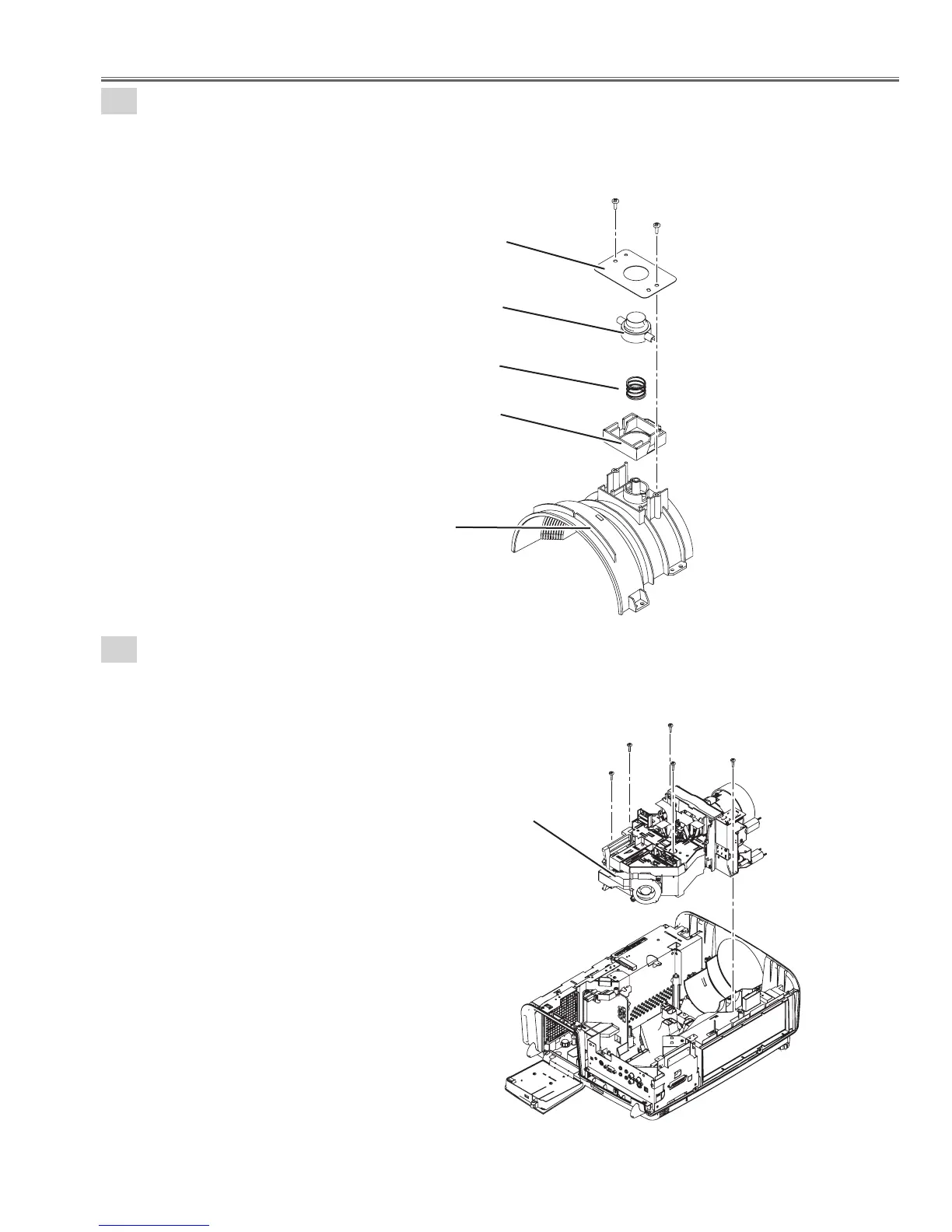

Lens cover ass'y removal-2.
1. Remove 2 screws-A(T3X8) and remove the Stopper button.
2. Remove the Button, remove the Spring and remove the Holder.
7
Optical engine removal.
1. Remove 5 screws-A(T3X10) and remove the Optical engine.
A
A
A
A
A
A
A
Fig. 6-2
Fig. 7
Stopper button
Button
Spring
Holder
Lens cover top
Optical engine

Sanyo PLC-XT20 Specifications

General

Projection technology	LCD
Contrast ratio (typical)	1000:1
Projector native resolution	XGA (1024x768)
Resolution	1024 x 768 pixels
Dimensions (WxDxH)	302 x 422 x 162 mm
Display diagonal	1 \
Lamp type	UHP
Lamp power	300 W
Light source type	Lamp
Market positioning	Portable

Weight and Dimensions

Weight	9200 g
