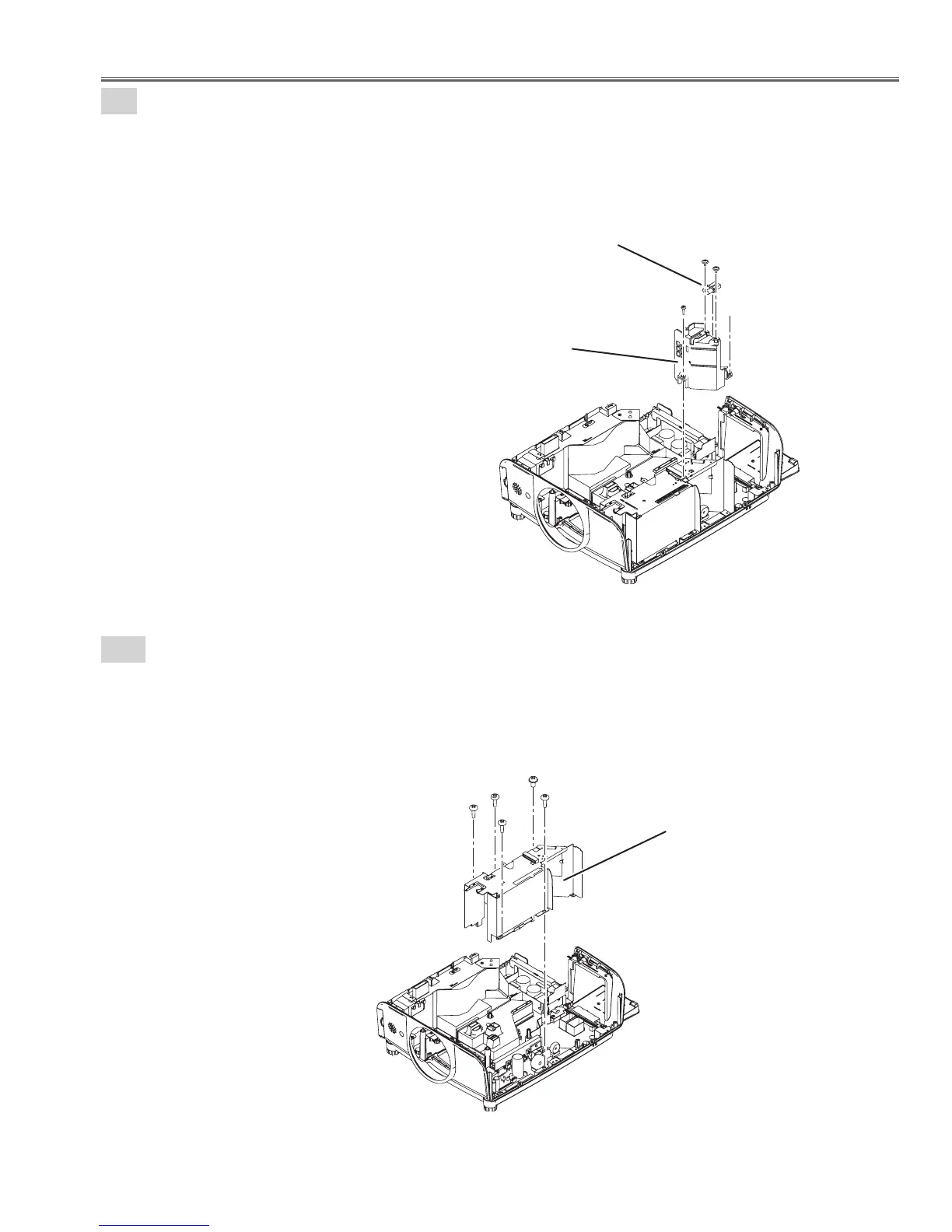

Mechanical Disassembly
12
Exhaust Fan duct removal.
1. Remove 2 screws-A(T3X6) and remove the Lamp ballast connector.
2. Remove 2 screws-B(T3X10) and remove Exhaust Fan duct.
13-1
Power board(Ballast) ass'y removal-1.
1. Remove 1 screw-A(M3X6), 4 screws-B(T3X8) and remove the Power board(Ballast) ass'y.
A
A
B
A
B
B
B
B
B
Fig.12
Fig.13-1
Exhaust Fan duct
Power board(Ballast) ass'y
Lamp ballast connector

Sanyo PLC-XT20 Specifications

General

Projection technology	LCD
Contrast ratio (typical)	1000:1
Projector native resolution	XGA (1024x768)
Resolution	1024 x 768 pixels
Dimensions (WxDxH)	302 x 422 x 162 mm
Display diagonal	1 \
Lamp type	UHP
Lamp power	300 W
Light source type	Lamp
Market positioning	Portable

Weight and Dimensions

Weight	9200 g
