-28-

Mechanical Disassembly

13-2

Power board(Ballast) ass'y removal-2.

1. Remove 2 Fixer clamp and remove the Power board(Ballast).

2. Remove the Spacer sheet.

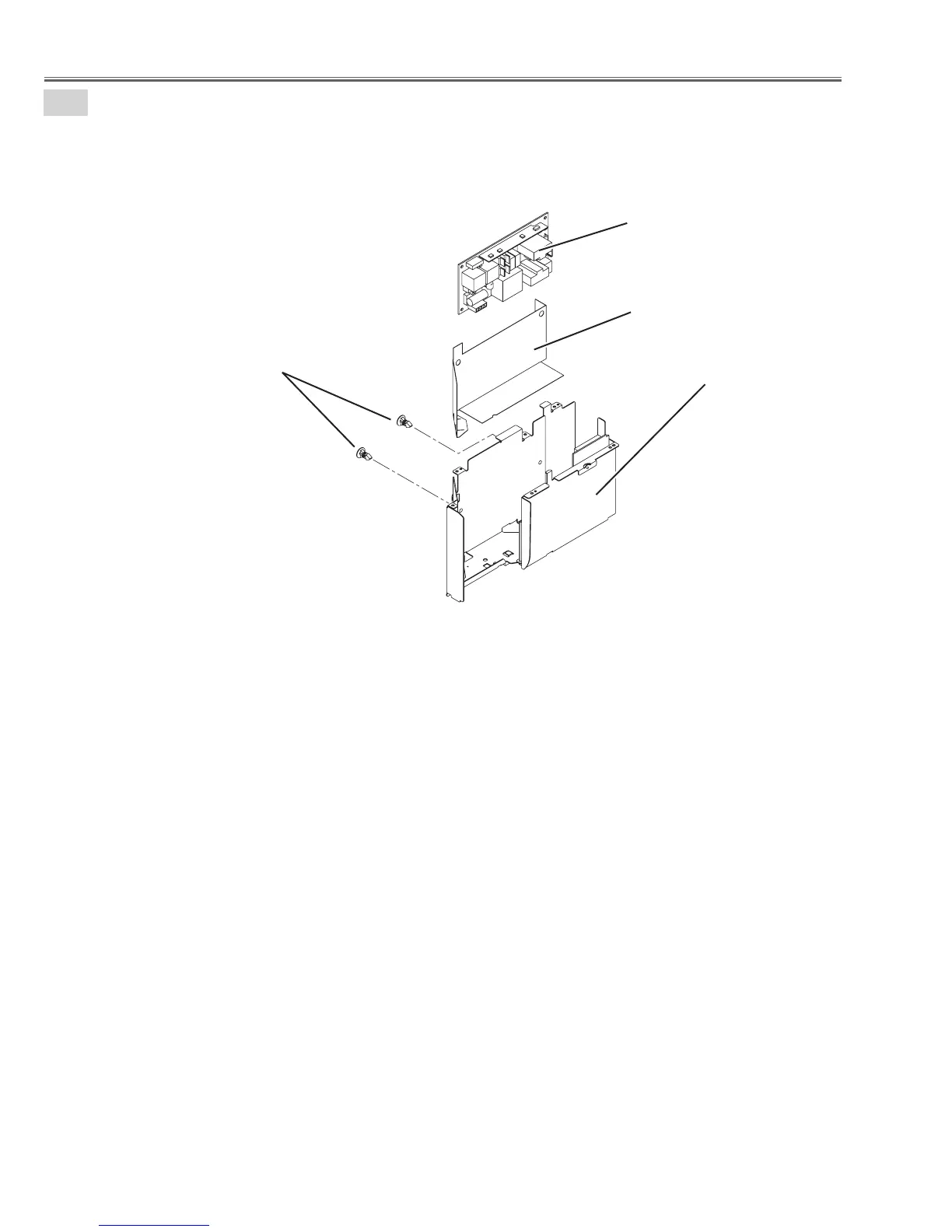

Fig.13-2

Ballast board

(A901)

Fixer clamp

Spacer sheet

Shield plate main power
