Sanyo PLC-XT20 User Manual

-29-
Mechanical Disassembly
14

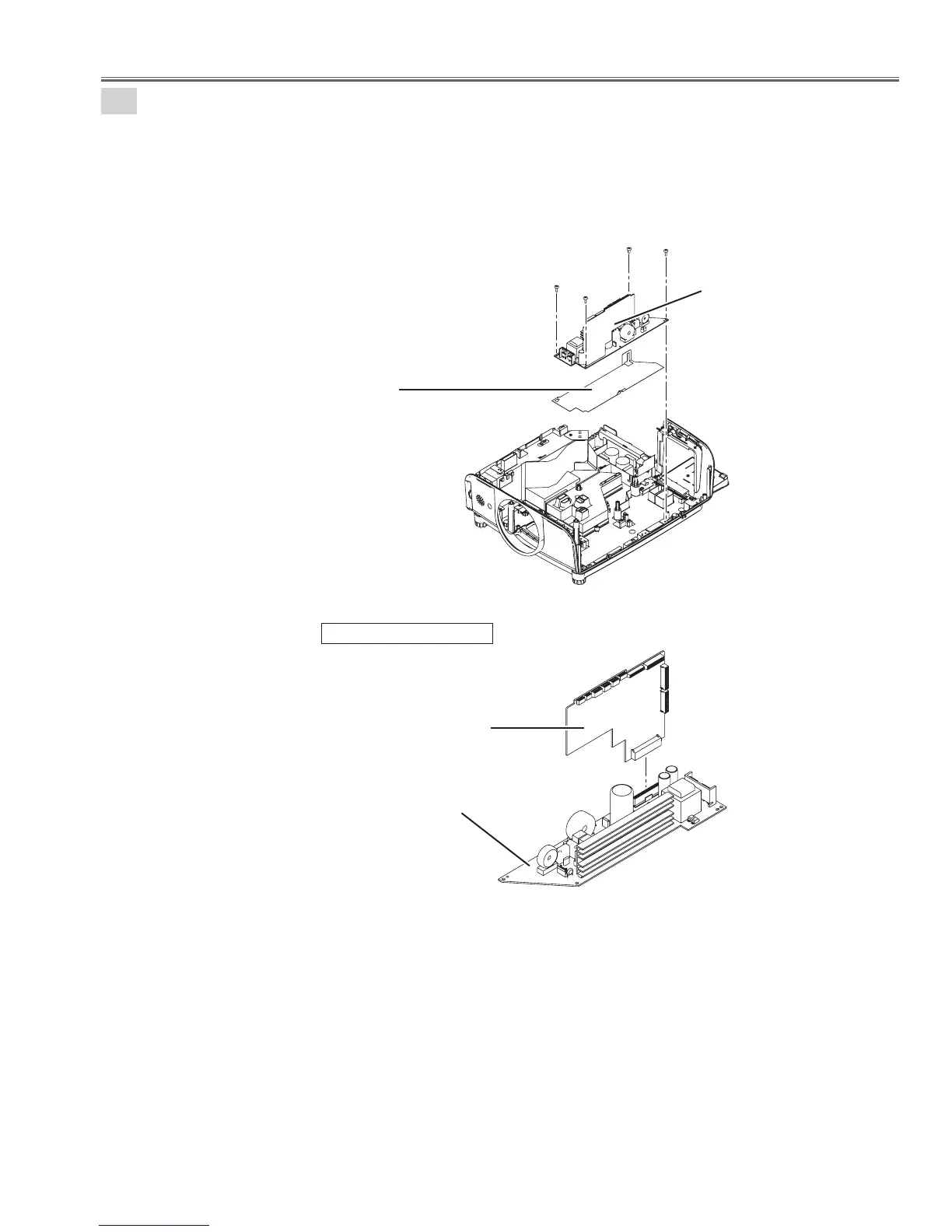

Power board ass'y removal.
1. Remove 1 screw-A(M3X8), 3 screws-B(T3X8) and remove the Power board ass'y.
2. Remove the Spacer sheet.
Fig.14a
Fig.14b
Power board ass'y
Power board ass'y
Power board(DC)
(A903)
Power board(AC)
(A902)
Spacer sheet
A
B
B
B

Sanyo PLC-XT20 Specifications

General

Projection technology	LCD
Contrast ratio (typical)	1000:1
Projector native resolution	XGA (1024x768)
Resolution	1024 x 768 pixels
Dimensions (WxDxH)	302 x 422 x 162 mm
Display diagonal	1 \
Lamp type	UHP
Lamp power	300 W
Light source type	Lamp
Market positioning	Portable

Weight and Dimensions

Weight	9200 g
