Sanyo PLC-XT20 User Manual

-30-

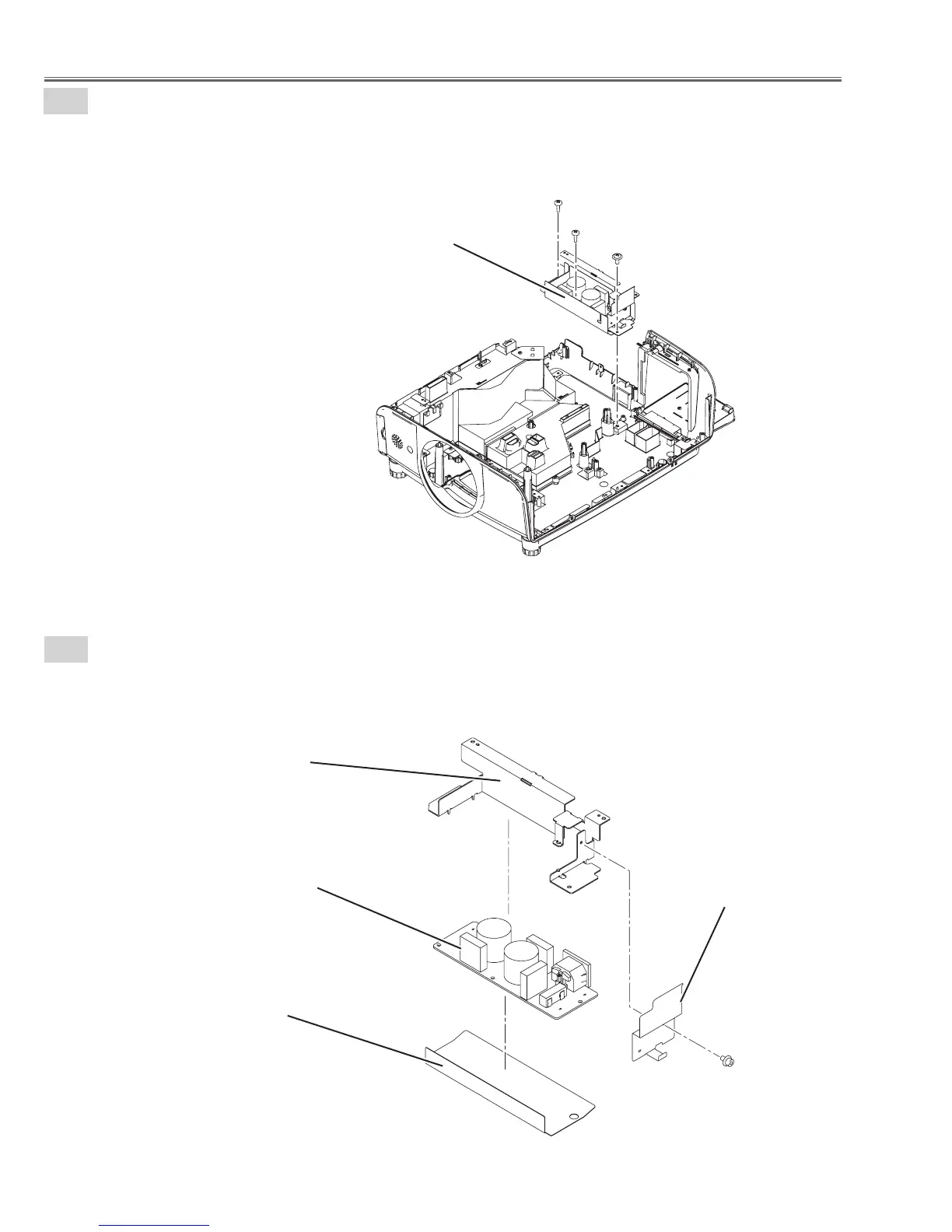

Mechanical Disassembly
15-1
Power board(Filter) ass'y removal-1.
1. Remove 1 screw-A(M3X6), 2 screws-B(T3X8) and remove the Power board(Filter) ass'y.
15-2
Power board(Filter) ass'y removal-2.
1. Remove 1 screw-A(M2.5X5) and remove the Fuse cover.
2. Remove the Holder PWB, remove the Spacer sheet and remove the Power board(Filter).
Fig.15-1
Fig.15-2
Power board(Filter) ass'y
Power board(Filter)
(A904)
Spacer sheet
Holder PWB
Fuse cover
A
A
B
B

Sanyo PLC-XT20 Specifications

General

Projection technology	LCD
Contrast ratio (typical)	1000:1
Projector native resolution	XGA (1024x768)
Resolution	1024 x 768 pixels
Dimensions (WxDxH)	302 x 422 x 162 mm
Display diagonal	1 \
Lamp type	UHP
Lamp power	300 W
Light source type	Lamp
Market positioning	Portable

Weight and Dimensions

Weight	9200 g
