Sanyo PLC-XT20 User Manual

-31-
Mechanical Disassembly
16-1

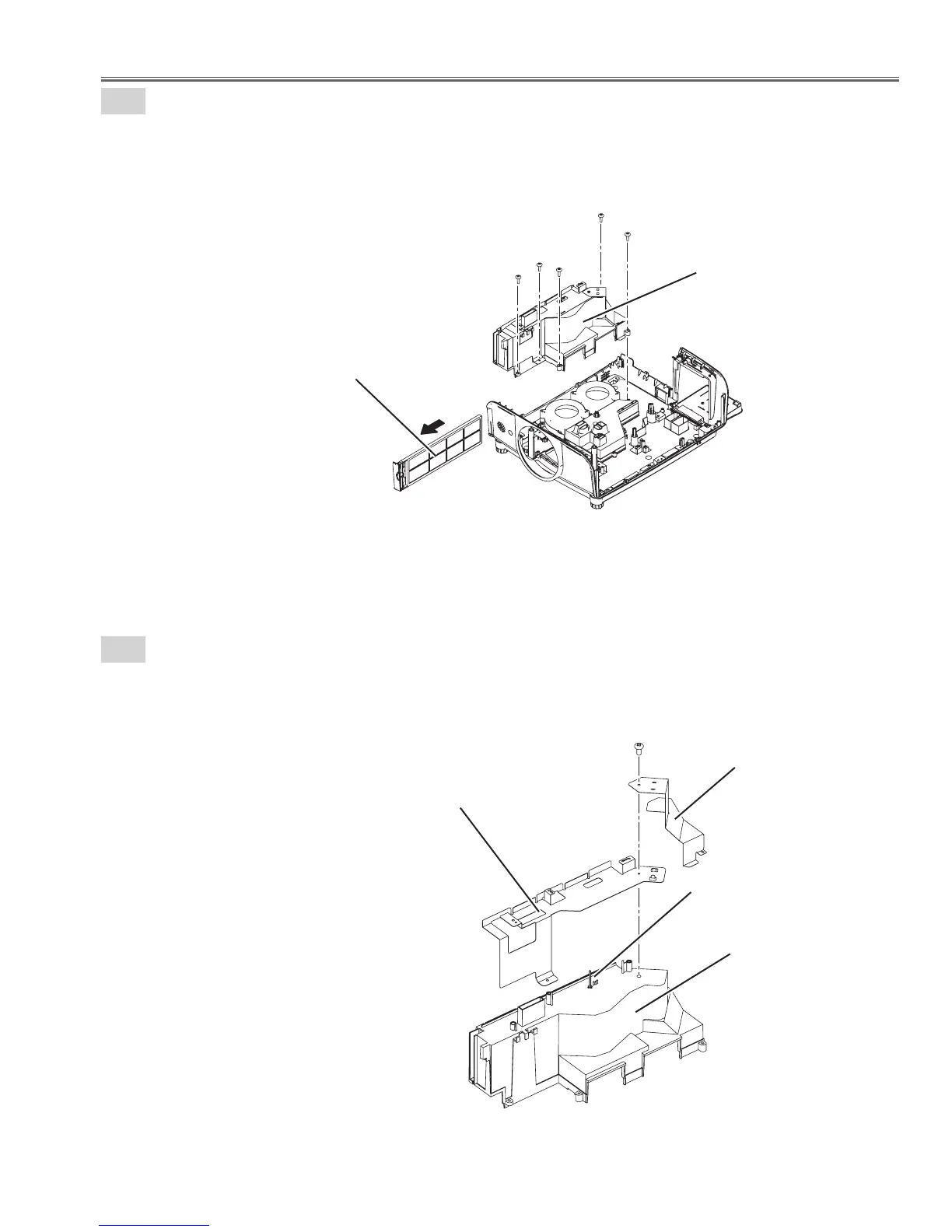

Intake Fan(FN904,FN905)removal-1.
1. Pull out air filter base ass'y.
2. Remove 5 screws-A(T3X8) and remove the intake duct ass'y.
16-2
Intake Fan(FN904,FN905)removal-2.
1. Remove 1 screw-A(M3X6), the Shield plate-A and remove the Shield plate-B.
Fig.16-1
Fig.16-2
Intake duct ass'y
Shield plate-A
Thermistor(TH901)
Shield plate-B
Intake duct
Filter base ass'y
A
A
A
A
A
A

Sanyo PLC-XT20 Specifications

General

Projection technology	LCD
Contrast ratio (typical)	1000:1
Projector native resolution	XGA (1024x768)
Resolution	1024 x 768 pixels
Dimensions (WxDxH)	302 x 422 x 162 mm
Display diagonal	1 \
Lamp type	UHP
Lamp power	300 W
Light source type	Lamp
Market positioning	Portable

Weight and Dimensions

Weight	9200 g
