Sanyo PLC-XT20 User Manual

-32-
Mechanical Disassembly
16-3

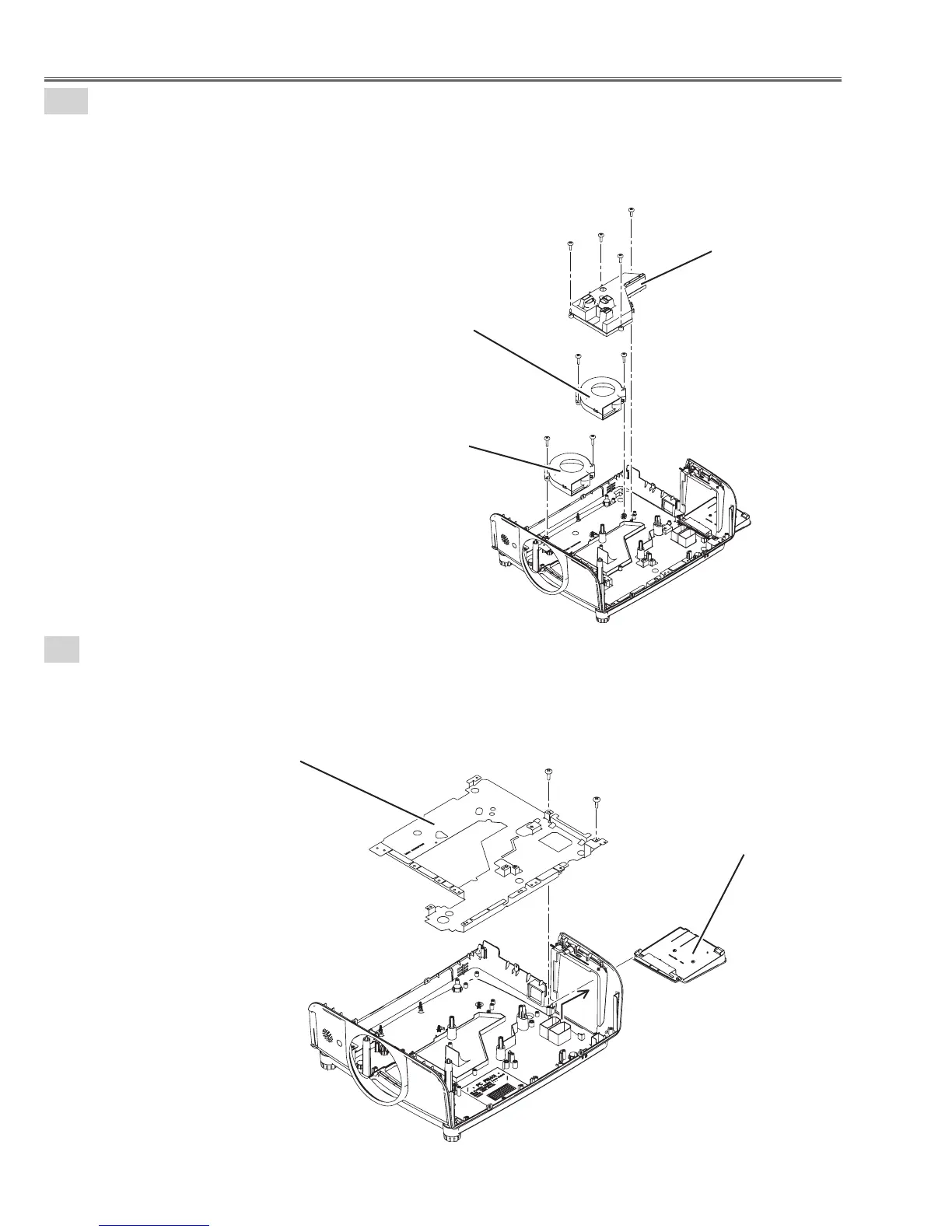

Intake Fan(FN904,FN905)removal-3.
1. Remove 4 screws-A(T3X8) and remove the Panel duct.
2. Remove 2 screws-B(T3X10) and remove the Fan(FN904).
2. Remove 2 screws-C(T3X10) and remove the Fan(FN905).
17
Shield plate BTM removal.
1. Remove 2 screws-A(T3X8) and remove the Shield plate BTM.
2. Remove the Lamp cover ass'y.
Fig.16-3
Fig.17
Panel duct
FN904
FN905
A
Lamp cover ass'y
Shield plate BTM
A
A
A
A
A
B
B
C
C

Sanyo PLC-XT20 Specifications

General

Projection technology	LCD
Contrast ratio (typical)	1000:1
Projector native resolution	XGA (1024x768)
Resolution	1024 x 768 pixels
Dimensions (WxDxH)	302 x 422 x 162 mm
Display diagonal	1 \
Lamp type	UHP
Lamp power	300 W
Light source type	Lamp
Market positioning	Portable

Weight and Dimensions

Weight	9200 g
