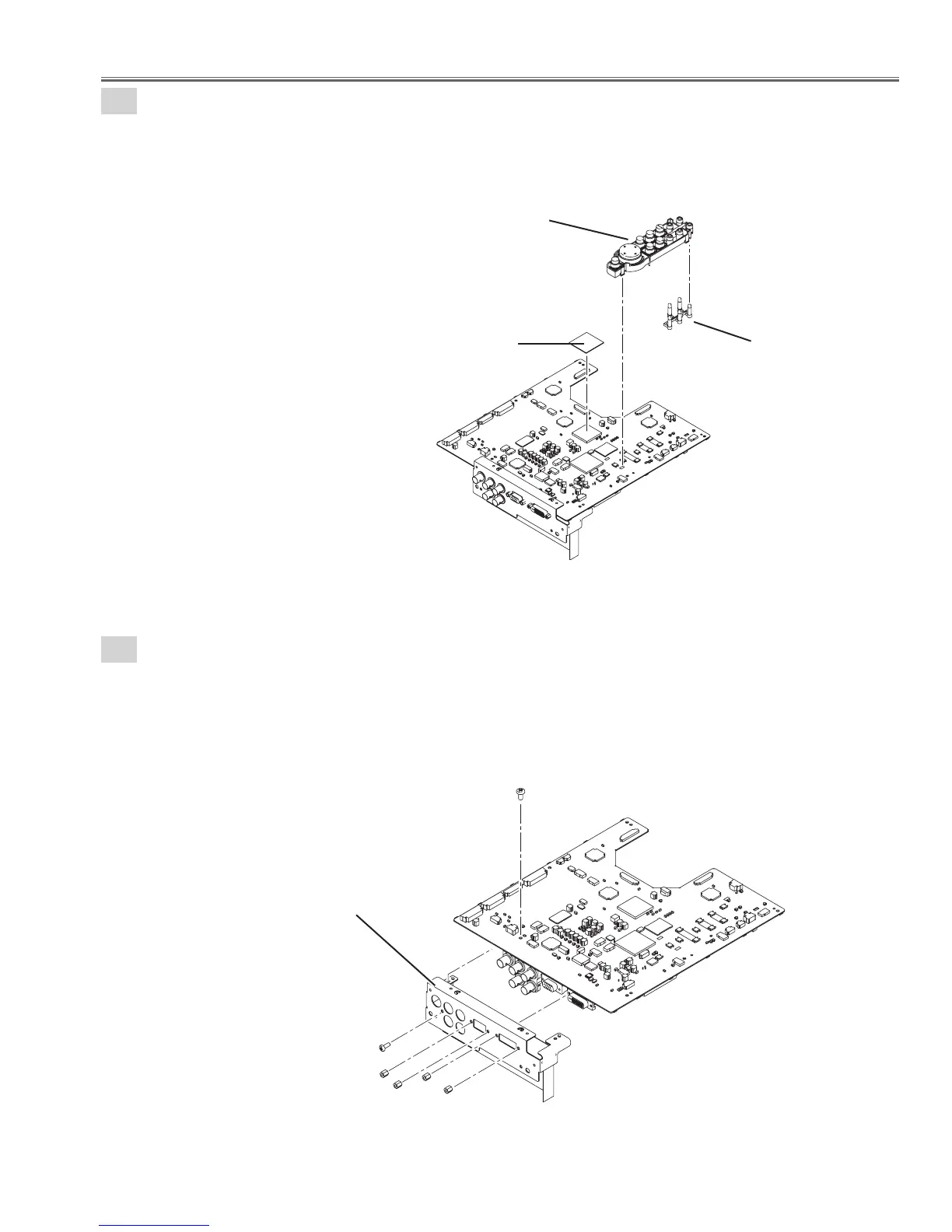

Mechanical Disassembly
4-2
Main board ass'y removal-2.
1. Unhook and remove the Button upward.
2. Remove the DEC inlay.
3. Remove the Heat sink sheet-A.
4-3
Main board ass'y removal-3.
1. Remove 1 screw-A(M3X6).
2. Remove 2 nuts-B, 2 nuts-C, 1 screw-D and remove the Main PWB Holder.
Fig. 4-2
Fig. 4-3
Button
Heat sink sheet-A
DEC inlay
A
B
C
C
B
Main PWB Holder
D
