-63-
Electrical Adjustment
K8G
K8H
K35B
K8L
IC501
K35R
IC561
TP35R
K8F
K35G
TP35G
K801
K8E
IC301
K8A
K8M
K8N
K8J
K7201
K8P
TPFAN4
K8D
TPFAN1
TPFAN2
TPFAN3
K8B
K8C
IC531
IC401
TP35B
TPDVS
TPHRST
TPDCLK
TPDHS
TPVRST
MAIN BOARD

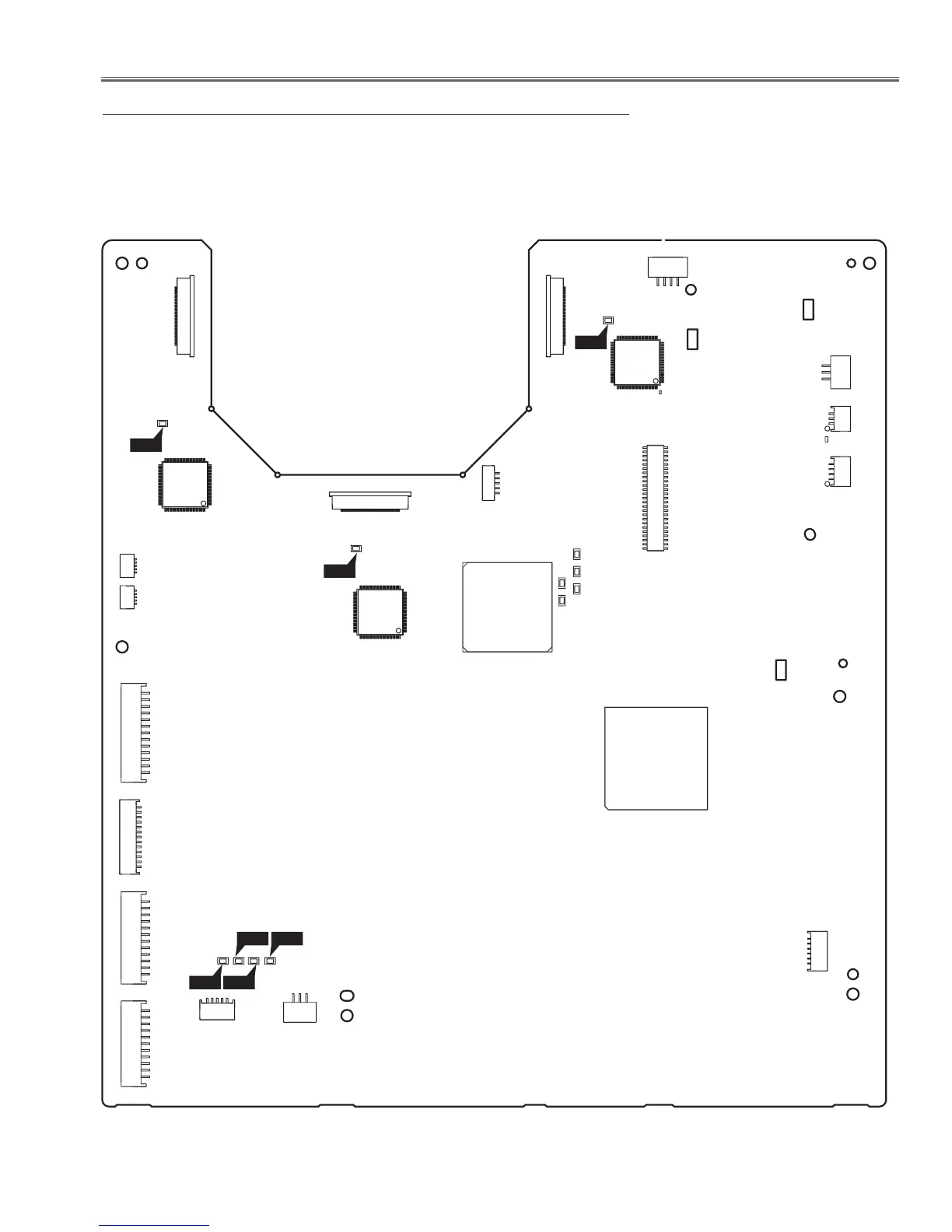

Test Points and Locations
