Optical Parts Disassembly
26

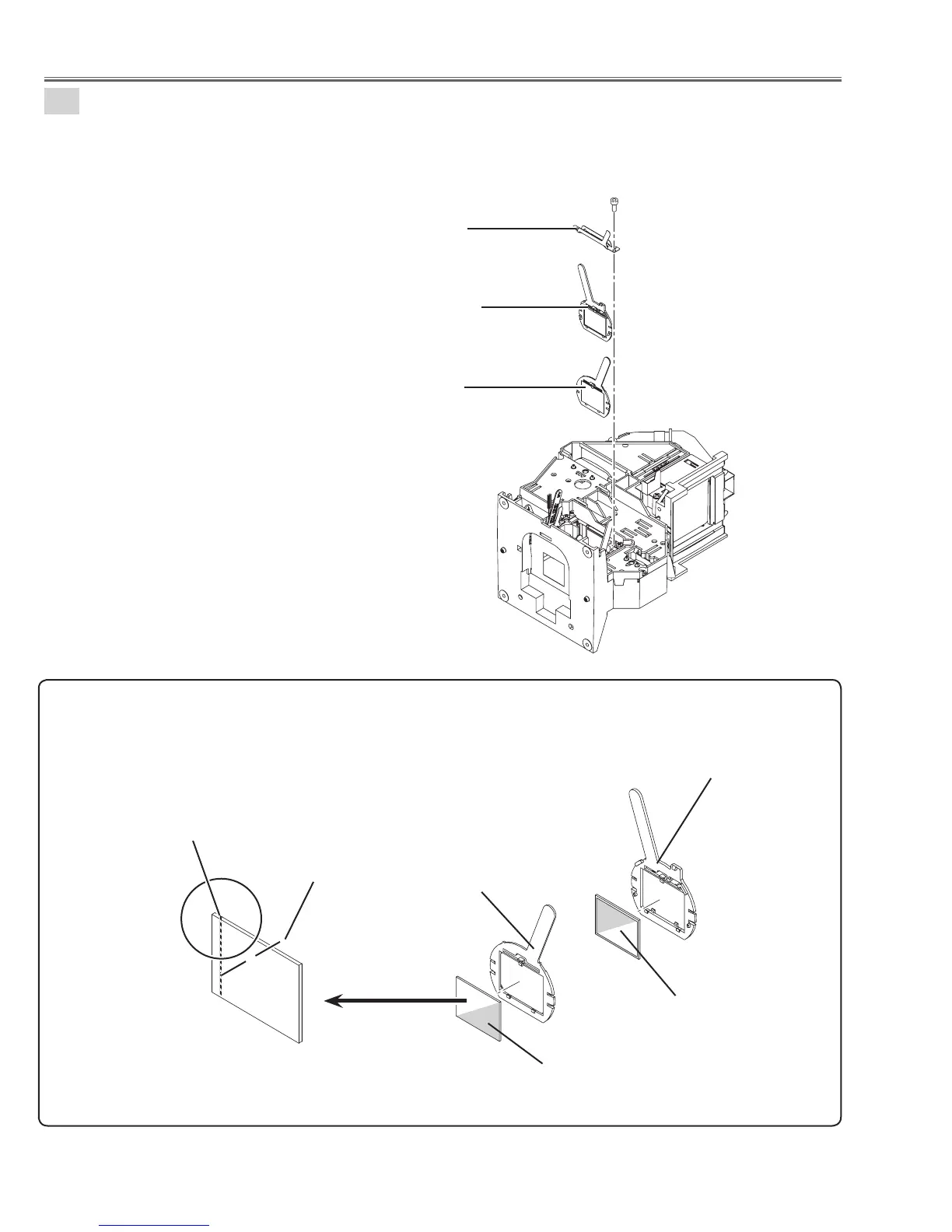

Green Polarized glass ass'y and Optical filter ass'y removal.
1. Remove 1 screw-A(M2.5X6) and remove the stopper.
2. Remove the Polarized glass ass'y and remove the Optical filter ass'y.
Fig.26a
Fig.26b
Stopper
Polarized glass ass'y
Optical filter ass'y
A
wv
P
O
L
Film attached side
comes this side.
Slit comes Polarized
glass side.
Marker comes this
top side.
Holder POL
Polarized glass
Marker comes this top
side. (Green glass)
Optical filter
Holder WV
