Sanyo PLC-XU301 - Mechanical Disassembly; Cabinet Top, Front, R;C Board Removal

-12-
z Cabinet Top, Front, R/C Board removal
Mechanical Disassembly
Mechanical disassembly should be made following procedures in numerical or-
der.
Following steps show the basic procedures, therefore unnecessary step may
be ignored.
Caution:
The parts and screws should be placed exactly the same position as the original
otherwise it may cause loss of performance and product safety.
Screws Expression
(Type Diameter x Length) mm
T type M Type
B (M3x8)x5

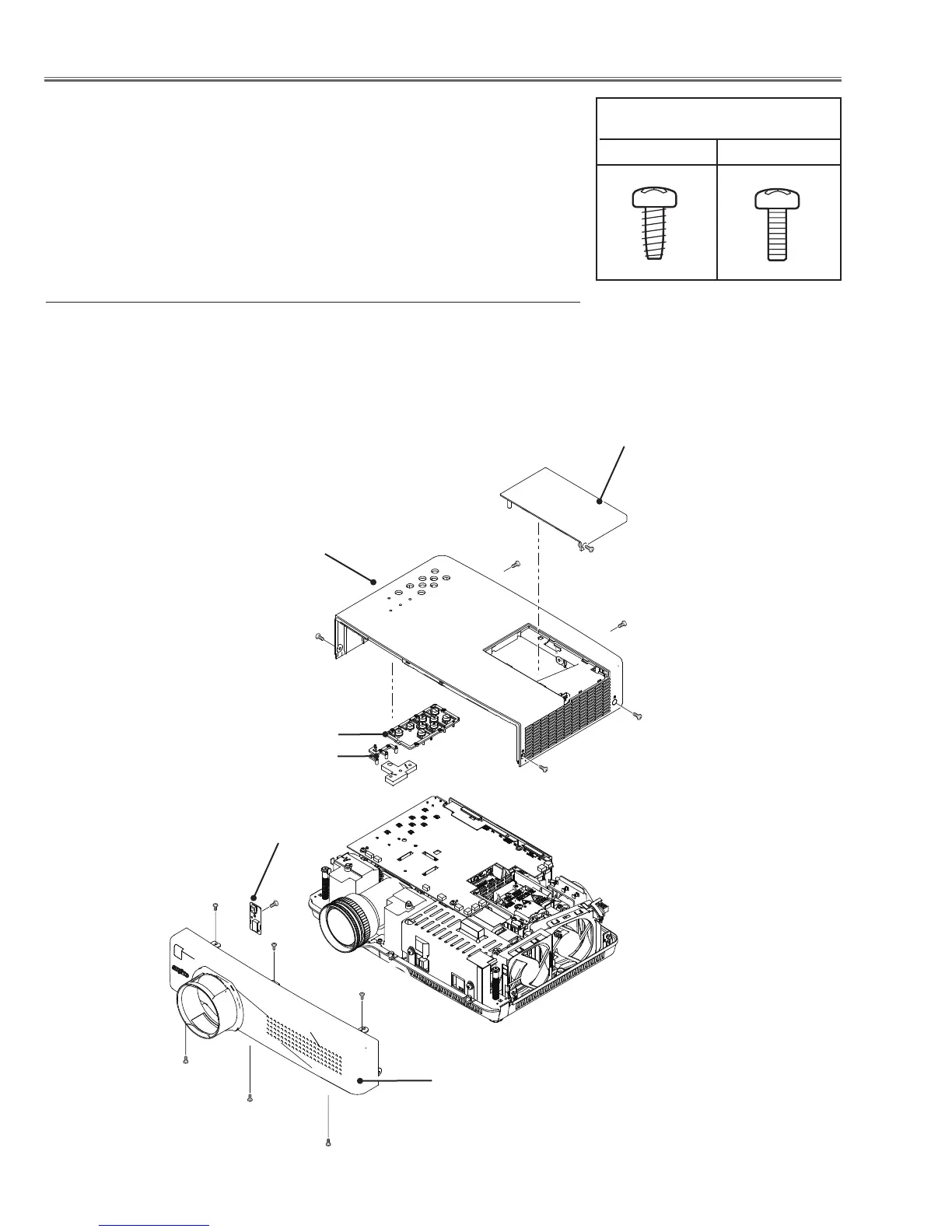

R/C Board
Fig.1
Cabinet top
D (T3X8)x3
1. Loose screw A (M3x8 ) to remove the Lamp Cover.
2. Remove 5 screws B (M3x8 ) to remove the Cabinet top.
3. Remove the Control Buttons and Dec Inlay LED.
4. Remove 3 screws C (M3x6) and 3 screws D (T3x8 ) to
remove the Cabinet Front.
5. Remove screw E (T3x6 ) to remove the R/C Board.
Control Buttons
Lamp Cover
A (M3x8)
B
B
B
B
D
D
C (M3X6)x3
C
C
E (T3X6)
Dec Inlay LED
Cabinet Front
