MS5-XU7000
-57-
Electrical Parts List
-57-

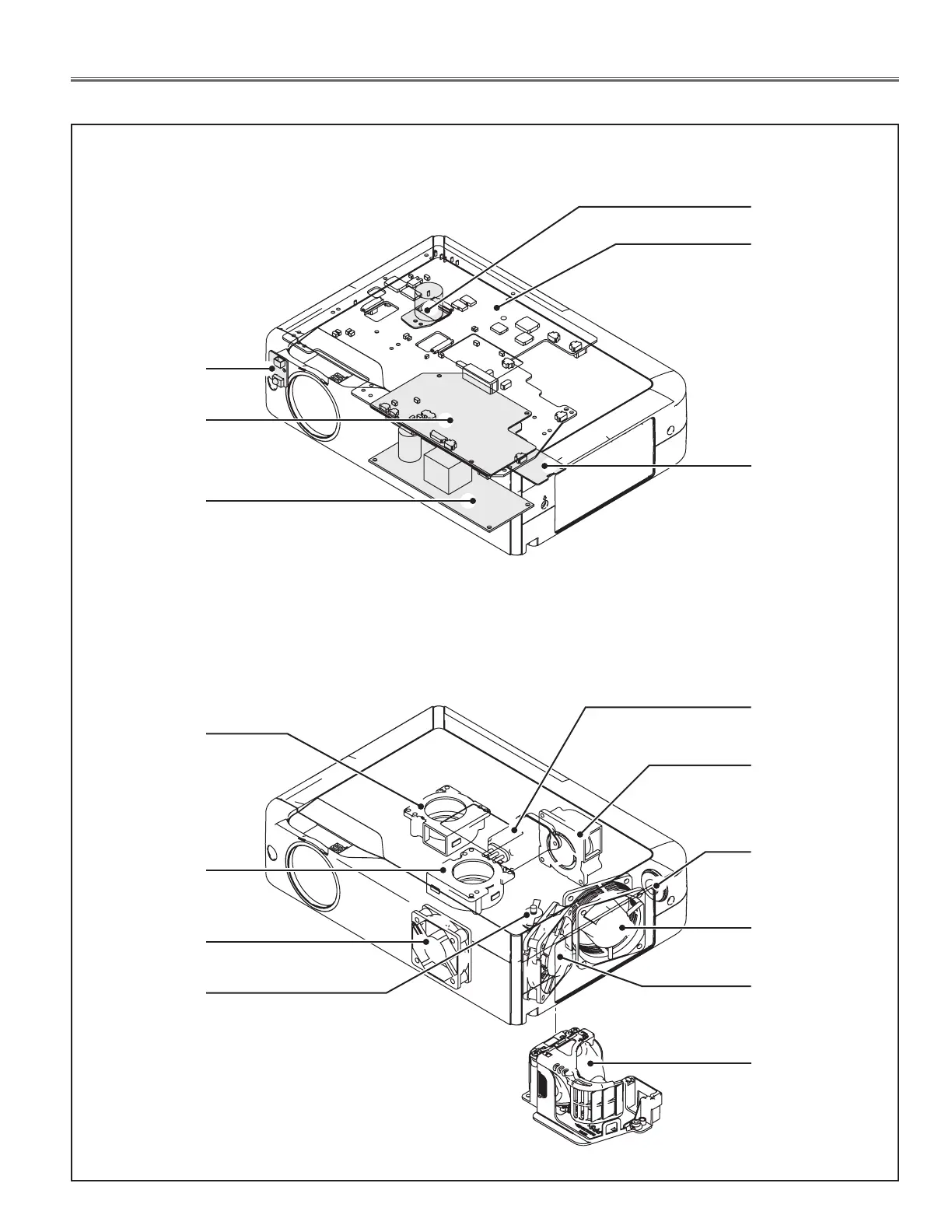

Electrical Parts Location
● Assemblied Boards
SW902
Thermal Switch
FN905
Cooling Fan(PBS)
FN904
Cooling Fan(G)
Line Filter Board
Main Board
A901
Ballast Board
SP901
Speaker
R/C Board
FN902 Cooling
Fan(Power)
FN906
Cooling Fan(EX)
FN901
Cooling Fan(Main)
LP900
Lamp Ass’y
LF901
Noise Filter
Power Board
FN903
Cooling Fan(B)
Sub Power Board
● OUT OF CIRCUIT BOARD
