-9-

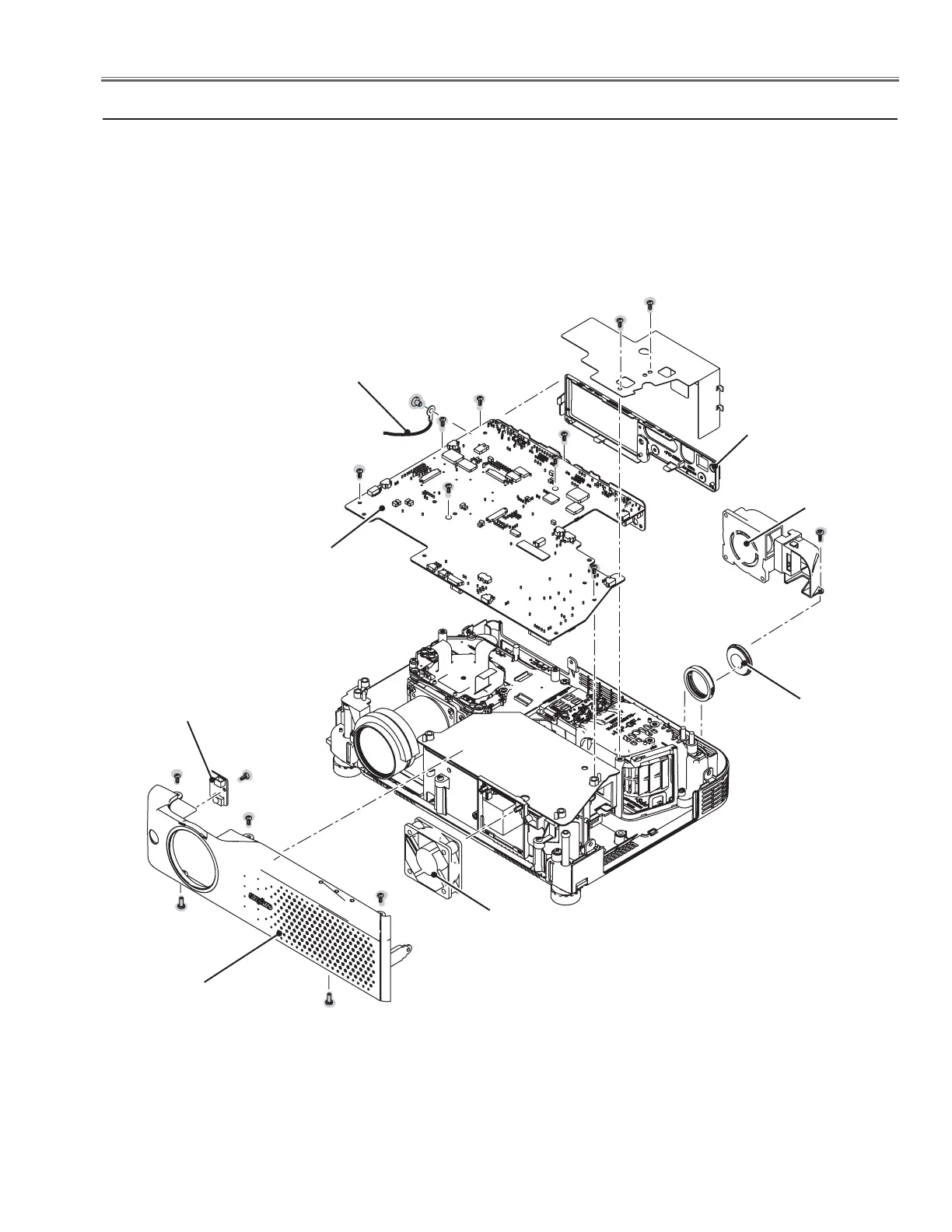

x Cabinet Front, R/C Board, Main Board, Fans(FN905,FN906), SP901 removal
Mechanical Disassembly
Main board
Rear panel
FN905
SP901
Cabinet front
R/C board
(M2.5x6)
(M2.5x6)x7
(M4x5)
(T3x8)
(T3x6)
Fig.2
FN906
Grounding
lead
(M3x8)
(M3x8)
(M2.5x6)
(M2.5x6)
(M2.5x6)x2
