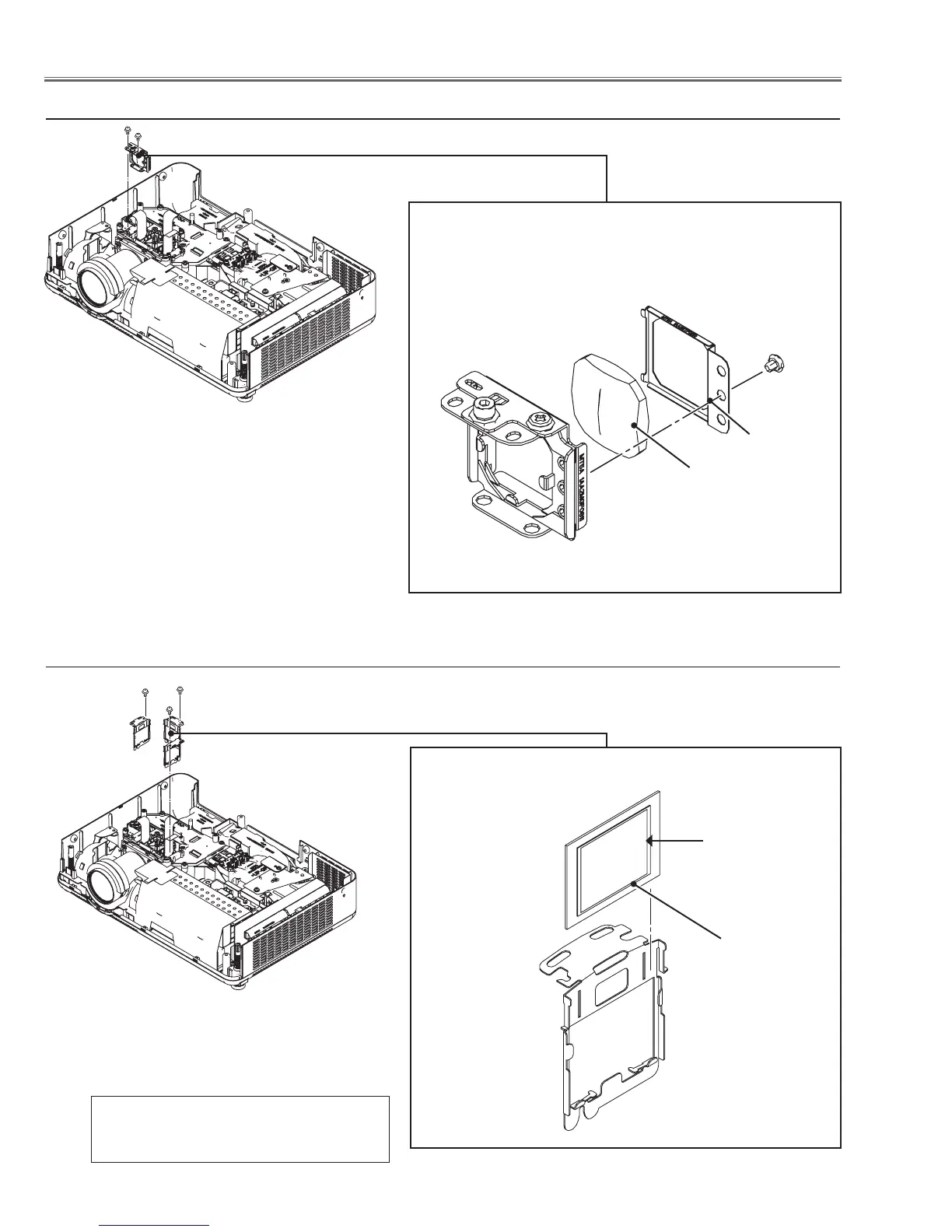

c Relay lens disassembly
Relay lens
Relay lens Ass'y
(M2.5x5)x2
Spring
v Polarized glass-in disassembly
Polarized glass
Polarized glass-in Ass'y
(M2.5x5)x1
Film side
* Mount the polarized glasses as the film
attached side comes to the prism side.
Fig.3
Fig.4
