Sanyo PLC-XU75

-18-
L3P06X-85G00
1-B-1234A1
-85G00
L3P06X-86G00
1-B-1234A1
-86G00
L3P06X-65G00
1-B-1234A1
-65G00
L3P06X-66G00
1-B-1234A1
-66G00
G-LCD PANEL
Optical Parts Disassembly
Panel Type Check
There are 2 types of LCD Panel/Prism Ass'y for this model. Either L-Type or R-Type LCD Panel/Prism Ass'y is used
on the projector. Check which type of LCD Panel/Prism Ass'y is used with the figure below.
When replacing the LCD Panel/Prism Ass'y, you need to take "Panel Type Check and Setting" on the Electrical Adjust-
ment for the replaced LCD Panel/Prism Ass'y.
The gamma-characteristics is different between L-Type and R-Type LCD Panel/Prism Ass'y.

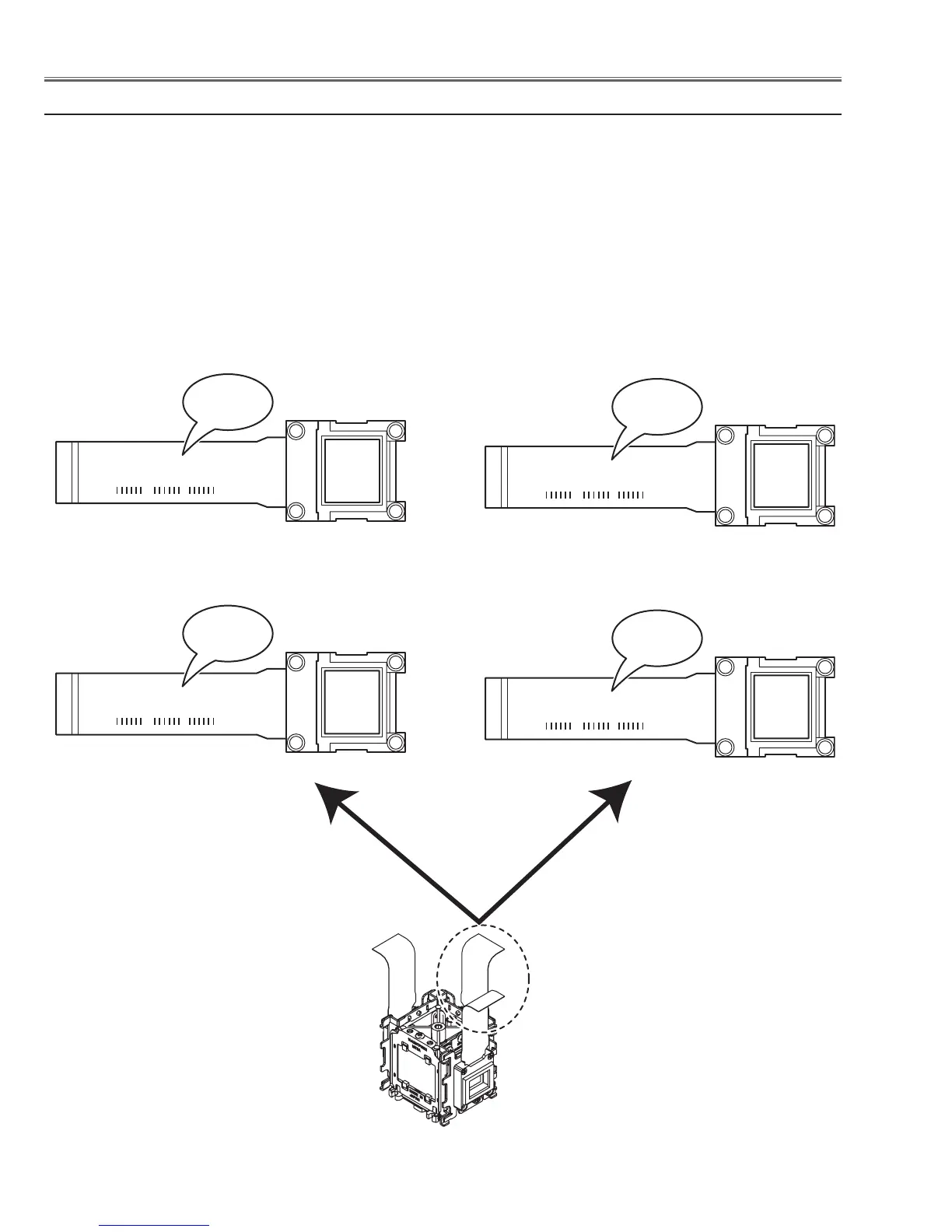

How to check the type of LCDPanel/Prism Ass'y
Check the printed number on the flat cable of the G-LCD Panel.
L-Type LCD Panel/Prism Ass'y R-Type LCD Panel/Prism Ass'y
Fig.5-2
Model PLC-XU78
Model PLC-XU75
