Sanyo PLC-XW55A - Page 31

-31-
Electrical Adjustments
Group/
Item
Item Name Function Initial Range Note
1 Noise Region 0 <NSREGIONY0> / <NSREGIONUV0> 12 0 - 1023
2 Noise Region 1 <NSREGIONY1> / <NSREGIONUV1> 24 0 - 1023
3 Noise Region 2 <NSREGIONY2> / <NSREGIONUV2> 40 0 - 1023
4 Noise Gain Level <NSFILTERY**> / <NSFILTERUV**> 100 0 - 255
Group 50 2:2pull down setting
0 22Film Mode Sensitivity Film Detection Sensitivity <FILMSTVT22> 4 1 - 5
1 22Film Mode Threshold Low <FILMTHRD22A> 80 0 - 32767
2 22Film Mode Threshold High <FILMTHRD22B> 120 0 - 32767
3 VOFTHR13 <VOFTHR13> 124 0 - 1023 Read only
4 VOFTHR12 <VOFTHR12> 124 0 - 1023 Read only
5 VOFTHR23 <VOFTHR23> 124 0 - 1023 Read only
6 Video Motion Window Start X <VOFSTARX> 10 0 - 2047 Range of detective for Film mode
7 Video Motion Window Stop X <VOFSTOPX> 10 0 - 2047 Range of detective for Film mode
8 Video Motion Window Start Y <VOFSTARY> 10 0 - 1023 Range of detective for Film mode
9 Video Motion Window Stop Y <VOFSTOPY> 10 0 - 1023 Range of detective for Film mode
Group 51 2:3pull down setting
0 Global Motion Sensitivity Film Detection Sensitivity <FILMSTVT23> 4 1 - 5
1 Video Motion Sensitivity Film Detection Sensitivity <VOFSTVT> 4 1 - 5
2 Video Motion Threshold Low <VOFTHRDA> 120 0 - 32767
3 Video Motion Threshold High <VOFTHRDB> 180 0 - 32767
4 Global Motion Threshold <GMDTHRD> 124 0 - 1024
5 23Film Mode Threshold <FILMTHRD23> 100 0 - 32767
6 Global Motion Window Start X <GMDSTARX> 10 0 - 2047 Range of detective for Film mode
7 Global Motion Window Stop X <GMDSTOPX> 10 0 - 2047 Range of detective for Film mode
8 Global Motion Window Start Y <GMDSTARY> 10 0 - 1023 Range of detective for Film mode
9 Global Motion Window Stop Y <GMDSTOPY> 10 0 - 1023 Range of detective for Film mode

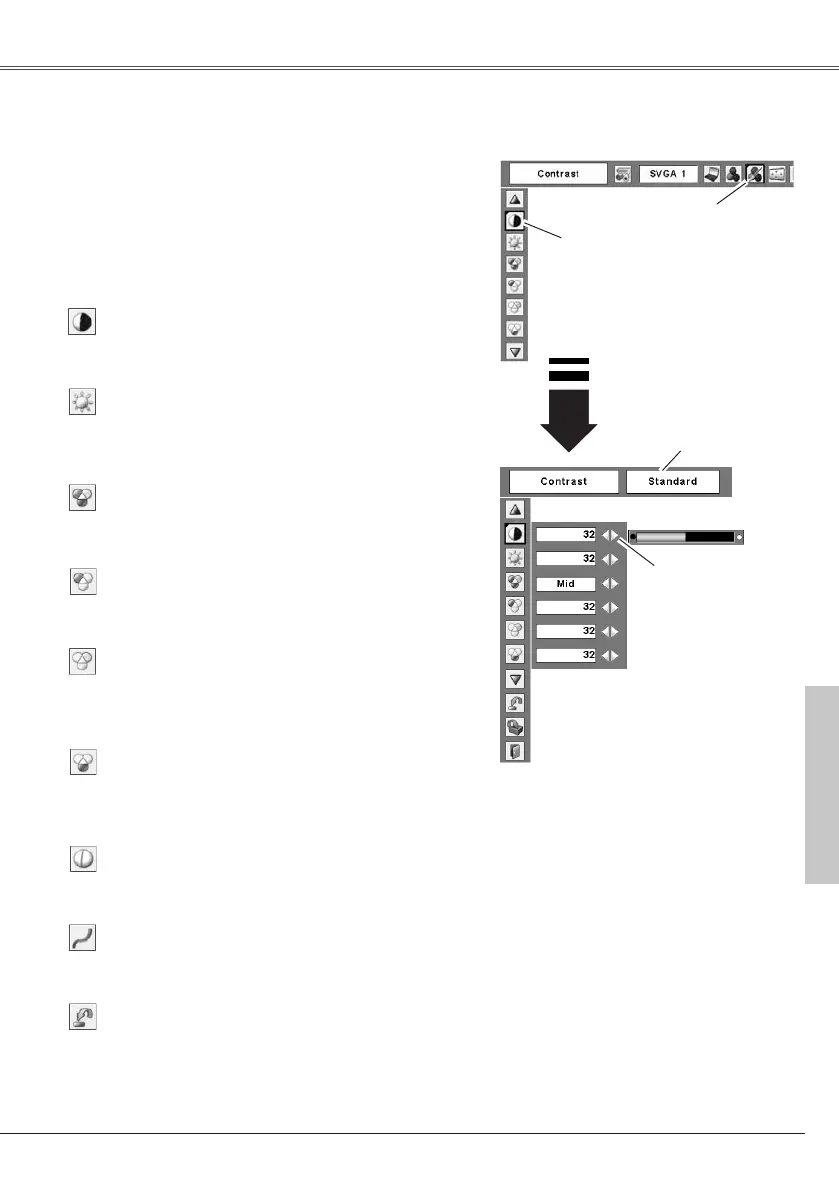

Group 60 Image
0 Center Contrast 512/556/534/534/492/492 0 - 1023
Video(S-Video) / Component / SCART /
ANALOG / DIGITAL / HDCP
Setting Value=
(MENU Value - MENU Center Value ) x
Alpha / 10 + Center
[Setting Value to PW]
Contrast [Max] 1023 [Min] 0
Brightness [Max] 1023 [Min] 0
Color [Max] 1023 [Min] 0
Tint [Max] 180 [Min] 0
Sharpness [Max] 57 [Min] 0
1 Center Brightness 512/480/512/500/512/512 0 - 1023
2 Center Color 512/534/512/512/512/512 0 - 1023
3 Center Tint 90/90/90/90/90/90 0-180
4 Center Sharpness 16/16/16/16/16/16 7-49
5 Alpha Contrast 40/40/40/40/40/40 0-1000
6 Alpha Brightness 140/140/140/140/140/140 0-1000
7 Alpha Color 70/70/70/70/70/70 0-1000
8 Alpha Tint 10/10/10/10/10/10 0-1000
9 Alpha Sharpness 10/10/10/10/10/10 0-1000
Group 100 Panel Contorl
0 G-SubGain PC/DVI/HDCP/Component/Video 512/512/512/512/512 0 - 1023
R and B linked to G
1 R-SubGain PC/DVI/HDCP/Component/Video 512/512/512/512/512 0 - 1023
2 B-SubGain PC/DVI/HDCP/Component/Video 512/512/512/512/512 0 - 1023
3 G-SubBright 0 0 - 1023
4 R-SubBright 0 0 - 1023
5 B-SubBright 0 0 - 1023
6 G-GammaShift PC/DVI/HDCP/VIDEO 512/512/512/512 0 - 1023
R and B linked to G, DVI linled to PC, HDCP
linked to AV * 50% White Adjustment
7 R-GammaShift PC/DVI/HDCP/VIDEO 512/512/512/512 0 - 1023 * White Balance Adjustment
8 B-GammaShift PC/DVI/HDCP/VIDEO 512/512/512/512 0 - 1023 * White Balance Adjustment
9 R_ReferH (NRS Level) Normal-Mount / Rear-Ceiling 950 /950 0 - 1023
R and B linked to G
10 G_ReferH (NRS Level) Normal-Mount / Rear-Ceiling 950 /950 0 - 1023
11 B_ReferH (NRS Level) Normal-Mount / Rear-Ceiling 950 /950 0 - 1023
12 R_ReferL (NRS Level) Normal-Mount / Rear-Ceiling 250 / 250 0 - 1023
R and B linked to G
13 G_ReferL (NRS Level) Normal-Mount / Rear-Ceiling 250 / 250 0 - 1023
14 B_ReferL (NRS Level) Normal-Mount / Rear-Ceiling 250 / 250 0 - 1023
15 DXOUTR (H Screen Position) 473 0 - 1023
16 DXOUTG (H Screen Position) 473 0 - 1023
17 DXOUTB (H Screen Position) 473 0 - 1023
18 ENBX*R Phase 4 0 - 127
19 ENBX*G Phase 4 0 - 127
20 ENBX*B Phase 4 0 - 127
21 ENBX*(RGB) Width 3 0 - 63
22 h_change_pos (CLY H-Position) 28 0 - 31
23 DYOUTR (V Screen Position) 22 0 - 511
R and B linked to G
24 DYOUTG (V Screen Position) 22 0 - 511
25 DYOUTB (V Screen Position) 22 0 - 511
26 dxout_base_pos 1 0-1
27 sh_base_pos_b (SH Position) 546 0 - 4095
28 NRG Position 47 0 - 127
29 NRG Width 116 0 - 255
30 OSD (Insert Position) 2 0 - 3
