20

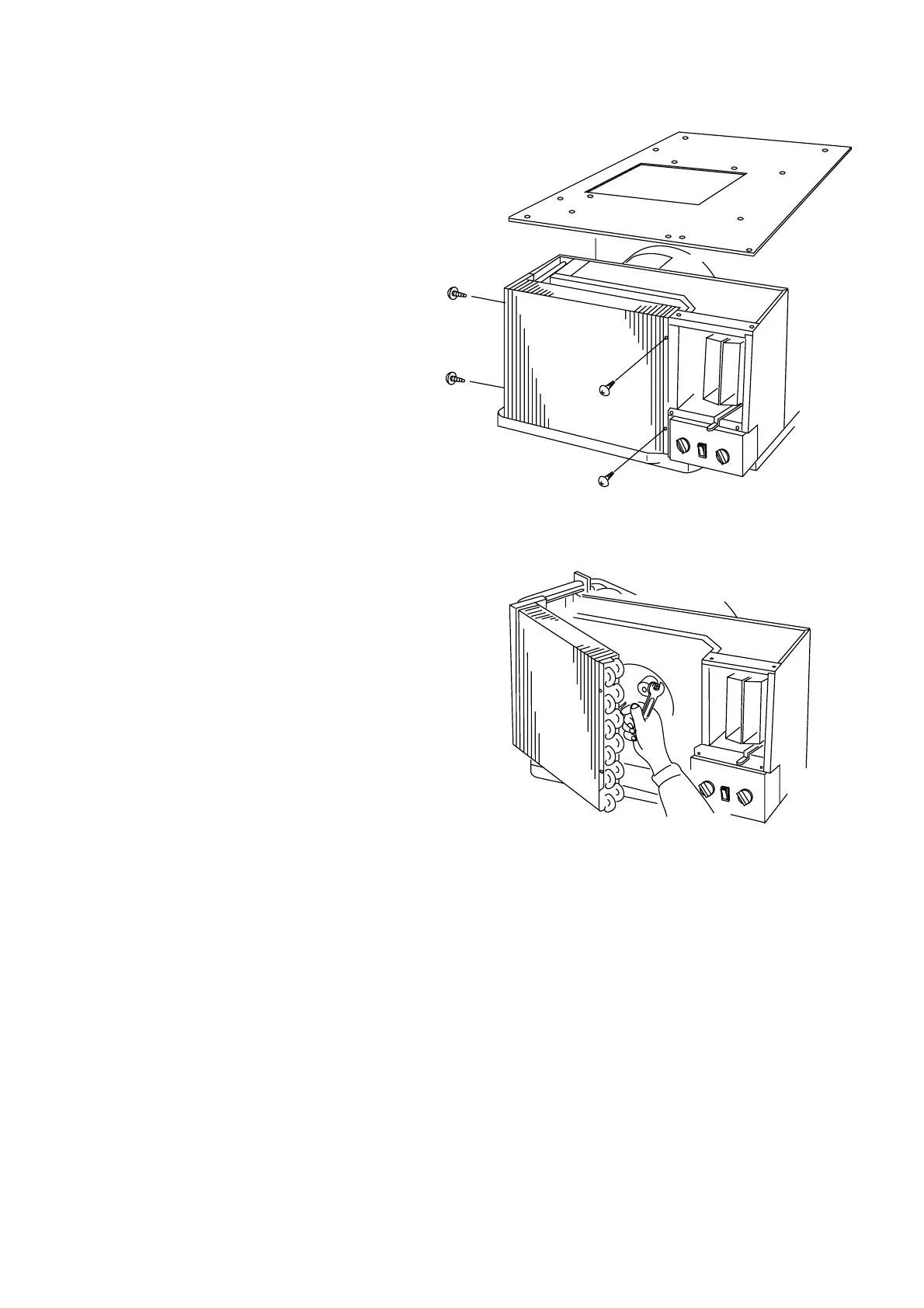

Fig. 11
Fig. 12
9-4. Removing Evaporator
(1) Remove the top plate. (Fig. 11)
(2) Remove screws holding evaporator. (Fig. 11)
(3) Grasp lower portion of the evaporator with both
hands and tilt it slightly and lift it carefully from
the drain pan so as not to distort the copper
tube.
9-5. Removing Blower Wheel
(1) Loosen a nut holding blower wheel on motor
shaft using hex. wrench. (Fig. 12)
(2) Extract the blower wheel from the motor shaft.
To Next Page
