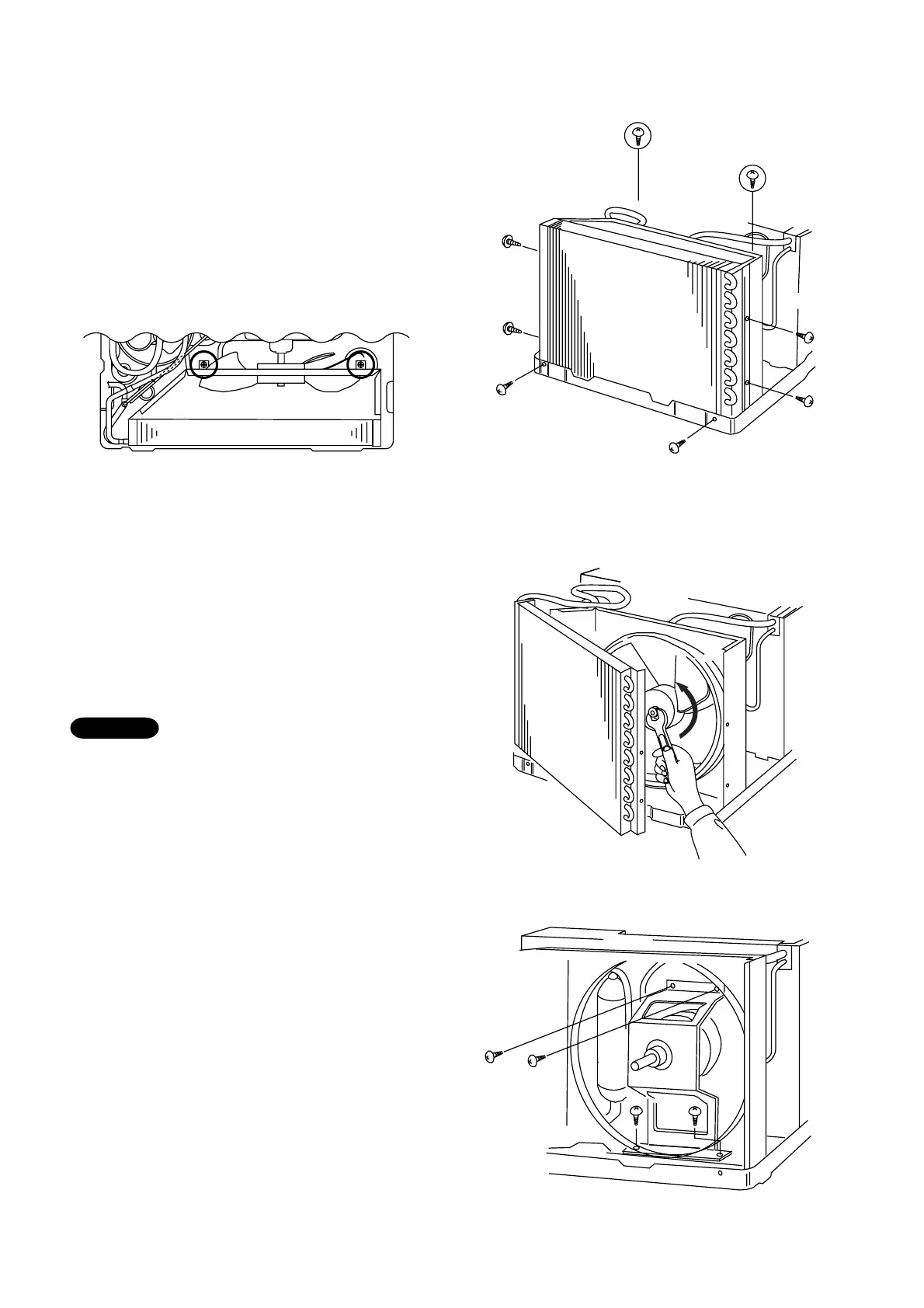

9-6. Removing Condenser
(1) Remove the top plate. (Fig. 11)
(2) Remove screws holding condenser. (Fig. 13)
(3) Grasp lower portion of the condenser with both
hands and tilt it slightly and lift it carefully from the
base pan so as not to distort the copper tube.
9-7. Removing Propeller Fan
(1) Remove the condenser.
Refer to "9-6. Removing Condenser"
(2) Loosen a nut holding propeller fan on motor shaft
using hex. wrench. (Fig. 15)
To loose the nut securing the propeller fan, hold the fan
with one hand and turn the nut COUNTERCLOCKWISE
with another hand.
(3) Extract the propeller fan from the motor shaft.
9-8. Removing Fan Motor
(1) Remove blower wheel.
Refer to "9-5. Removing Blower Wheel"
(2) Remove propeller fan.
Refer to "9-7. Removing Propeller Fan"
(3) Disconnect motor lead wires.
(4) Remove 4 screws of the fan motor mounting plate
with a philip screwdriver. (Fig. 16)
(5) Disengage the fan motor from the mounting plate.
(Fig. 11)
