4 Maintenance and care
4.1 Changing the batteries
Before changing the batteries, turn off the instrument.
To change the batteries, open the battery compartment on the back of the case.

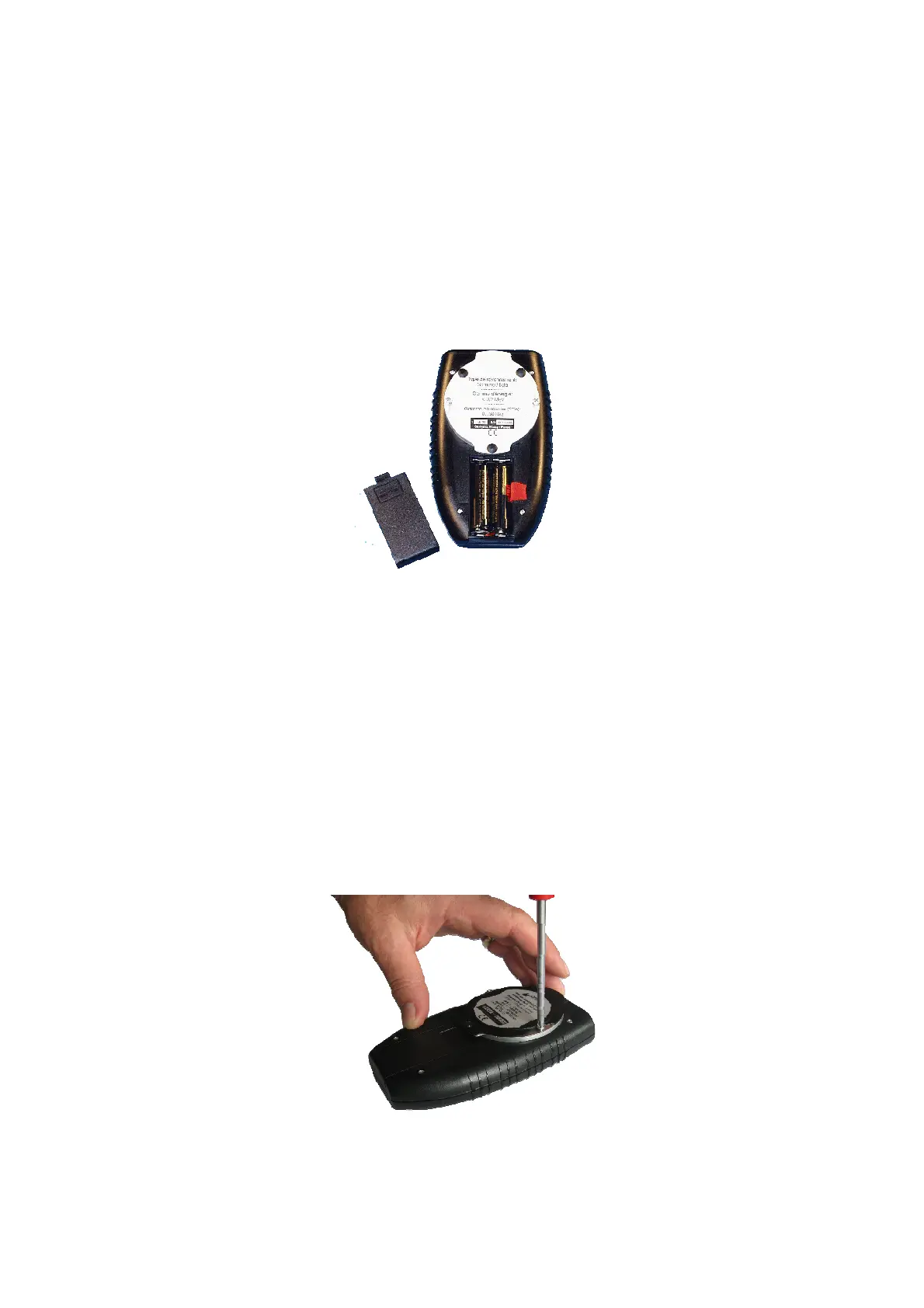

Figure 30: Changing the batteries
Now the batteries (type: MN 1500, LR6, AA) can be replaced. The diagram in the battery
compartment indicates how to place the batteries correctly. The instrument is protected
against damage to its polarity and thus cannot be harmed by the incorrect placement of the
batteries.
4.2 Cleaning (Decontaminating) MiniTRACE CSDF
4.2.1 Removing the grid
Be very careful when removing the grid. First, close the protective lid, in order to avoid
damaging the counter tube (with a screwdriver, for example). Now the two screws that hold
the grid in place can be loosened.
Figure 31: Removing the grid (part 1)
