SAPHYMO MiniTRACE CSDF - Figure 33: Energy Response of the Minitrace CSDF (Based on Cs-137, with Lid Closed and GM Tube Energy Compensated); Figure 34: Energy Response of the Minitrace CSDF (with Open Lid, NOT Energy Compensated)

Instruction Manual for MiniTRACE CSDF
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Page 32 08/2012
Note
: Calibration values and technical data are only valid when the protective rubber
casing is not in use.
0,0
0,2
0,4
0,6
0,8
1,0
1,2
1,4
1,6
1,8
2,0
10 100 1000
[keV]
Energy response
Ansprechvermögen

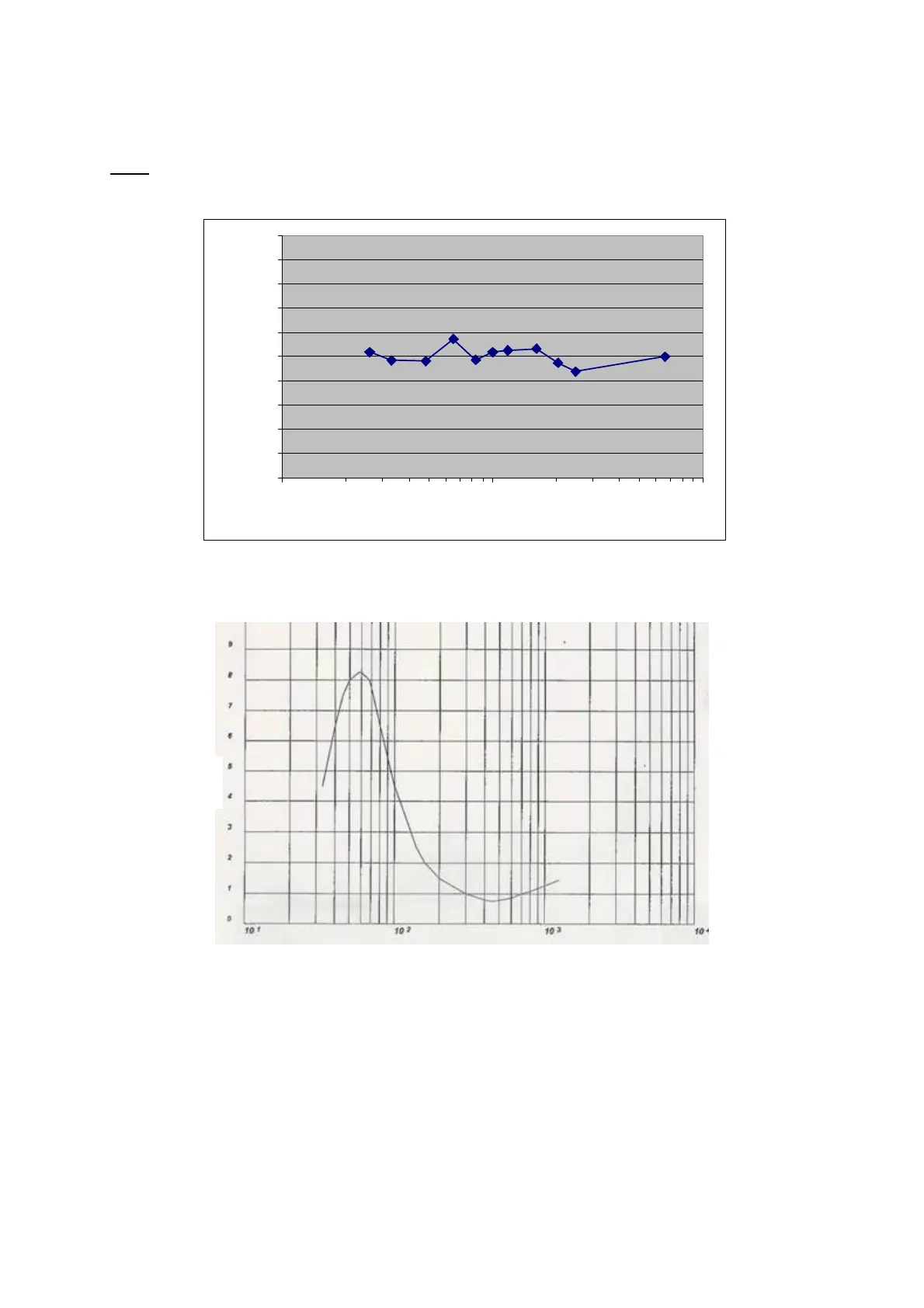

Figure 33: Energy response of the MiniTRACE CSDF
(based on Cs-137, with lid closed and GM tube energy compensated)
Energy [keV]
Figure 34: Energy response of the MiniTRACE CSDF
(with open lid, NOT energy compensated)
Relative
Count rate
