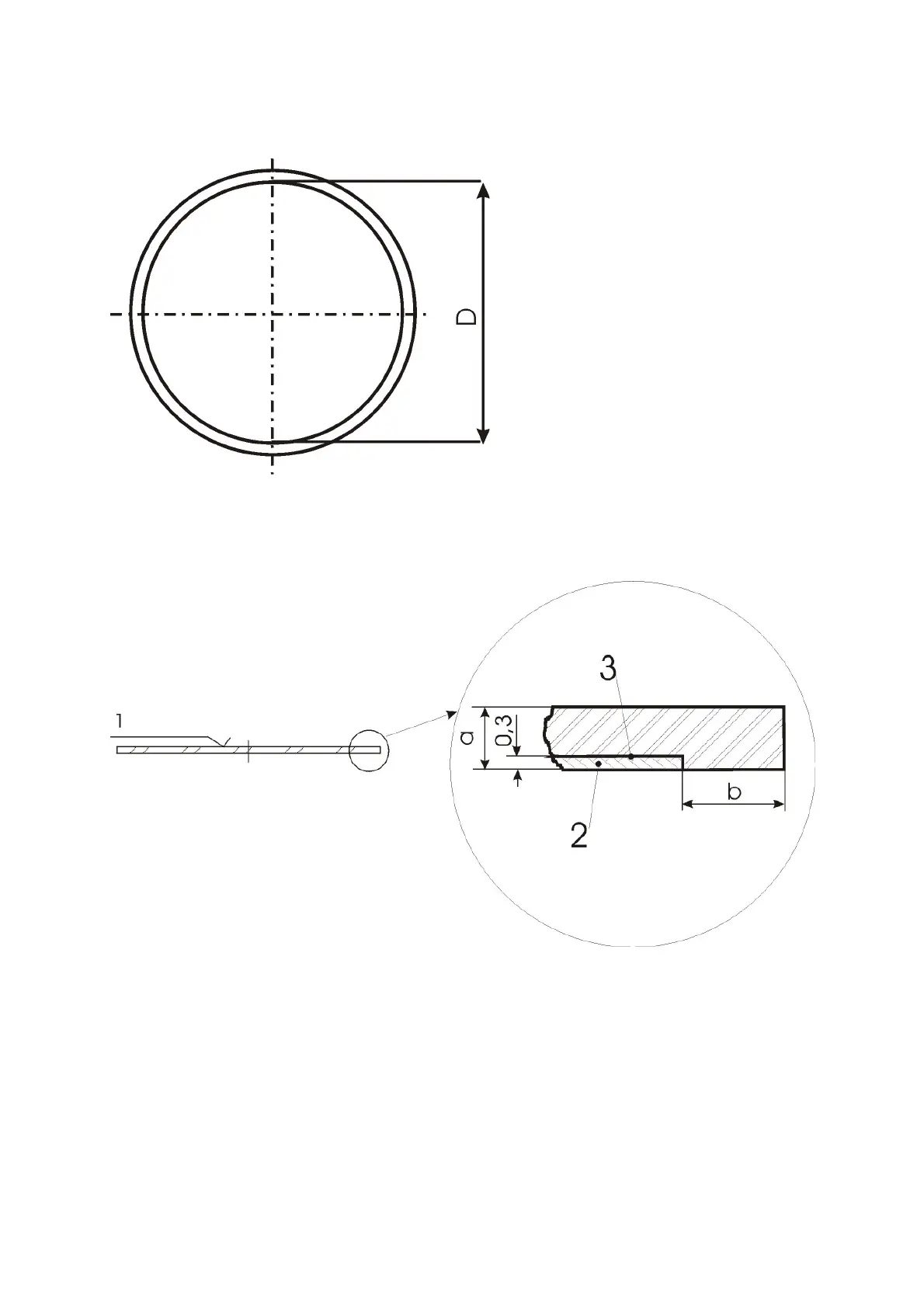

Top view of reference emitter
D: Active diameter = 45 mm
Total size: Ø 50 mm x 3 mm
Cross-section of the reference emitter
1. Imprint
2. Eloxided aluminum foil
Thickness of the active coating: about 5 µm
3. Attached with Epoxy
a. Thickness: 3.0 mm
b. Inactive ring: 2.5 mm
