lnstallation
Display
Remove
the
large
"eye-bolt"
located
on top
of the
milling machine column
(see
Figure 1). Mount the
arm onto
the
machine
and the display
onto the arm
with the
5/16-18
bolt
provided
in
the Sargon
hardware kit
(see
Figure
1).
Should
you
wish to
mount the display
under the arm, open
the display
and
reverse
the
top and
bottom
halves
of the
case
(see
Figure 2).
Bolt
the display
underthe arm using
the 5/16-18
bolt
provided
in
the Sargon
hardware kit
(see
Figure
3).

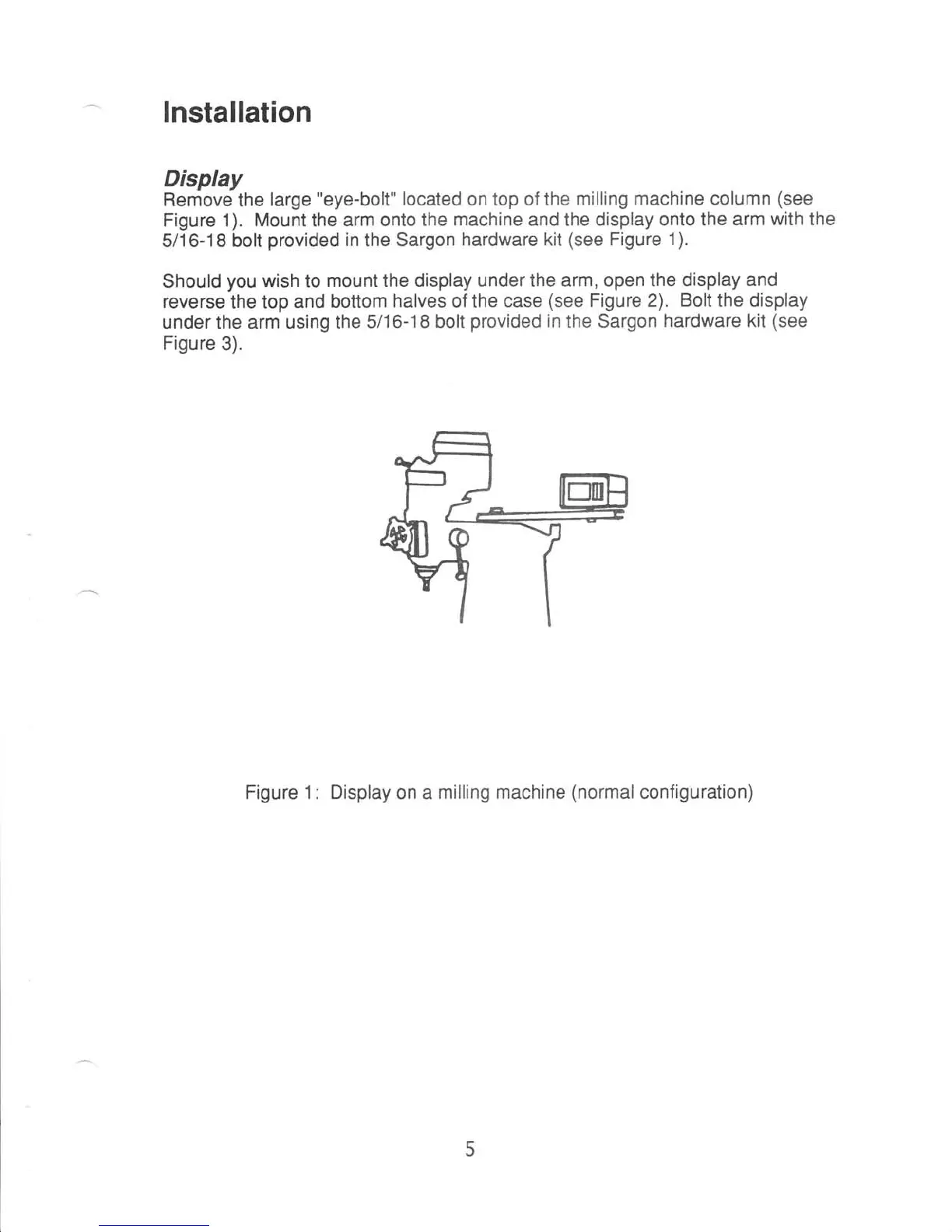

Figure
1: Display
on a
milling machine
(normal
configuration)
5
