Sartorius LE series - Cabling Diagram

58

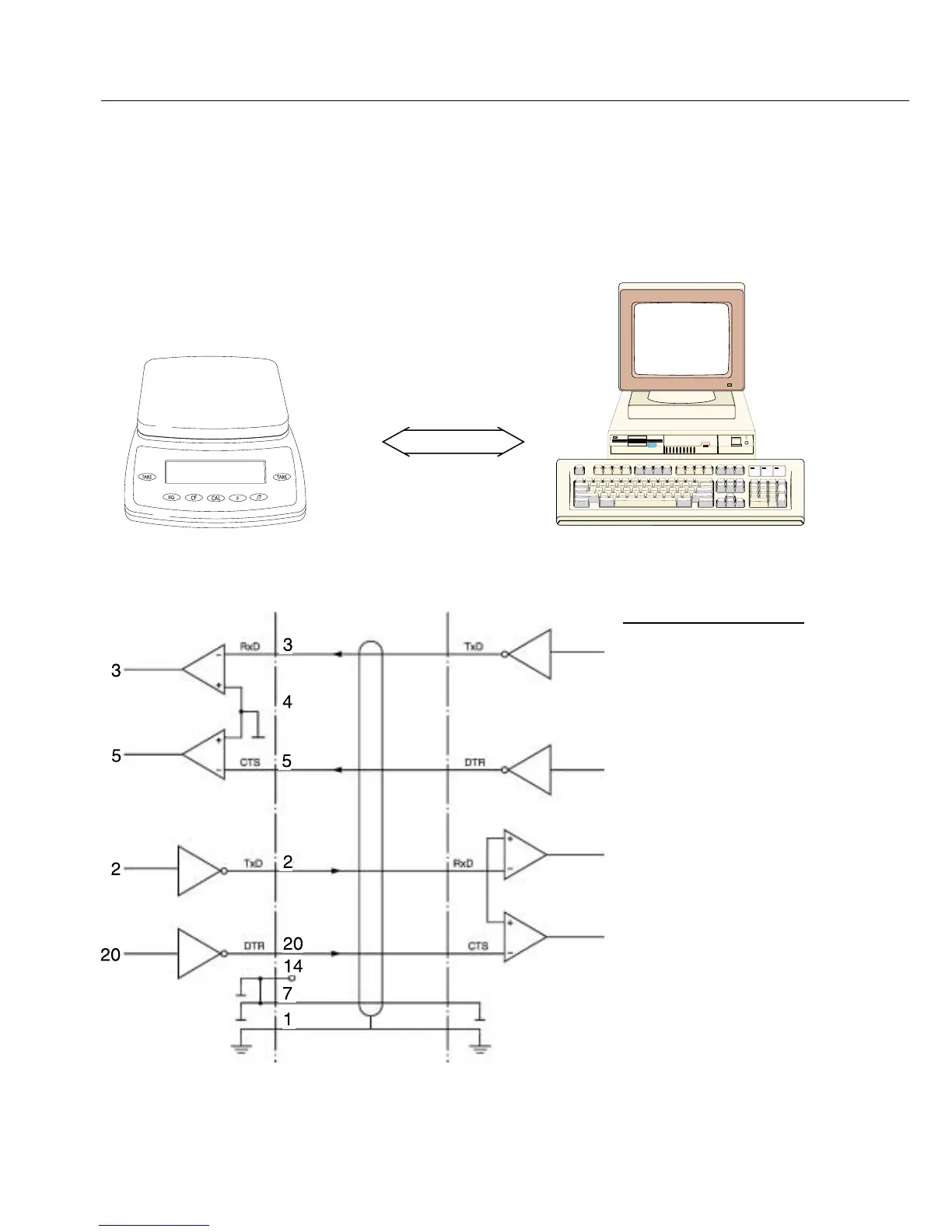

Cabling Diagram
Peripheral device
PC PC
25-pin or 9-pin
23
20 4
32
58
66
75
Cable type: AWG 24 specification
– For connecting a computer or other peripheral device to the balance using the
RS-232C/V24 protocol and cables up to 15 m (50 ft.) long.
V24
Balance
