Getting Started
Cubis MSE Operating Instructions 11
Assembly
Installing the Analytical Draft Shield Labeled DA, DI, and DU
Assembling the Balance

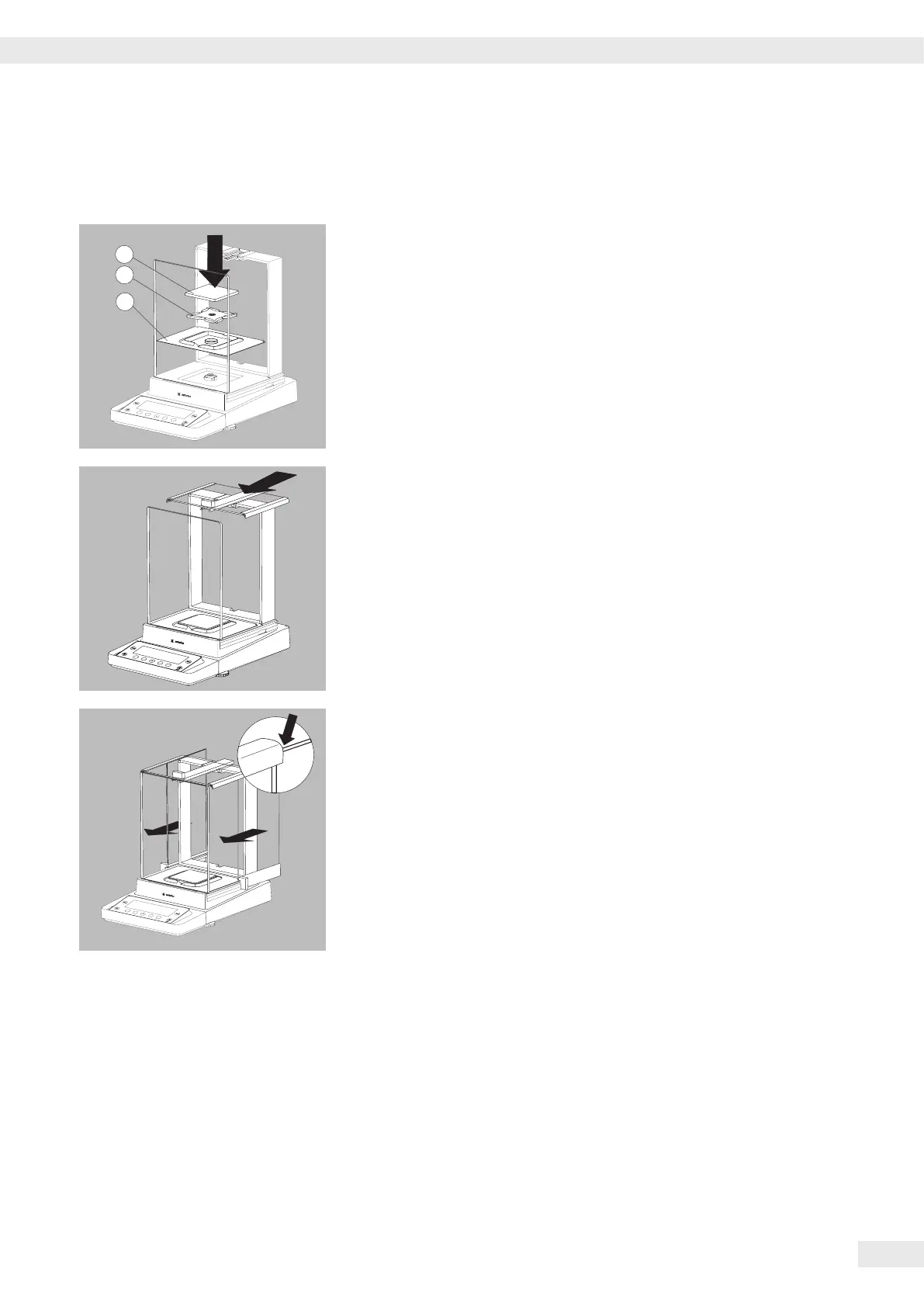

t Fit parts onto the balance as shown in the picture�
1. Shield plate
2. Pan support (not for MSx225���/MSx125��� models)
3. Weighing pan
t Slide the upper draft shield panel into the guide rails from the rear�
t Slide the left and right draft shield panels into the guide rails from the rear�
Make sure the panels are within the upper and lower guide rails�
t Slide the panels in until they engage�
1. Right draft shield panel
2. Left draft shield panel
y This completes the balance assembly�
2
1
3
