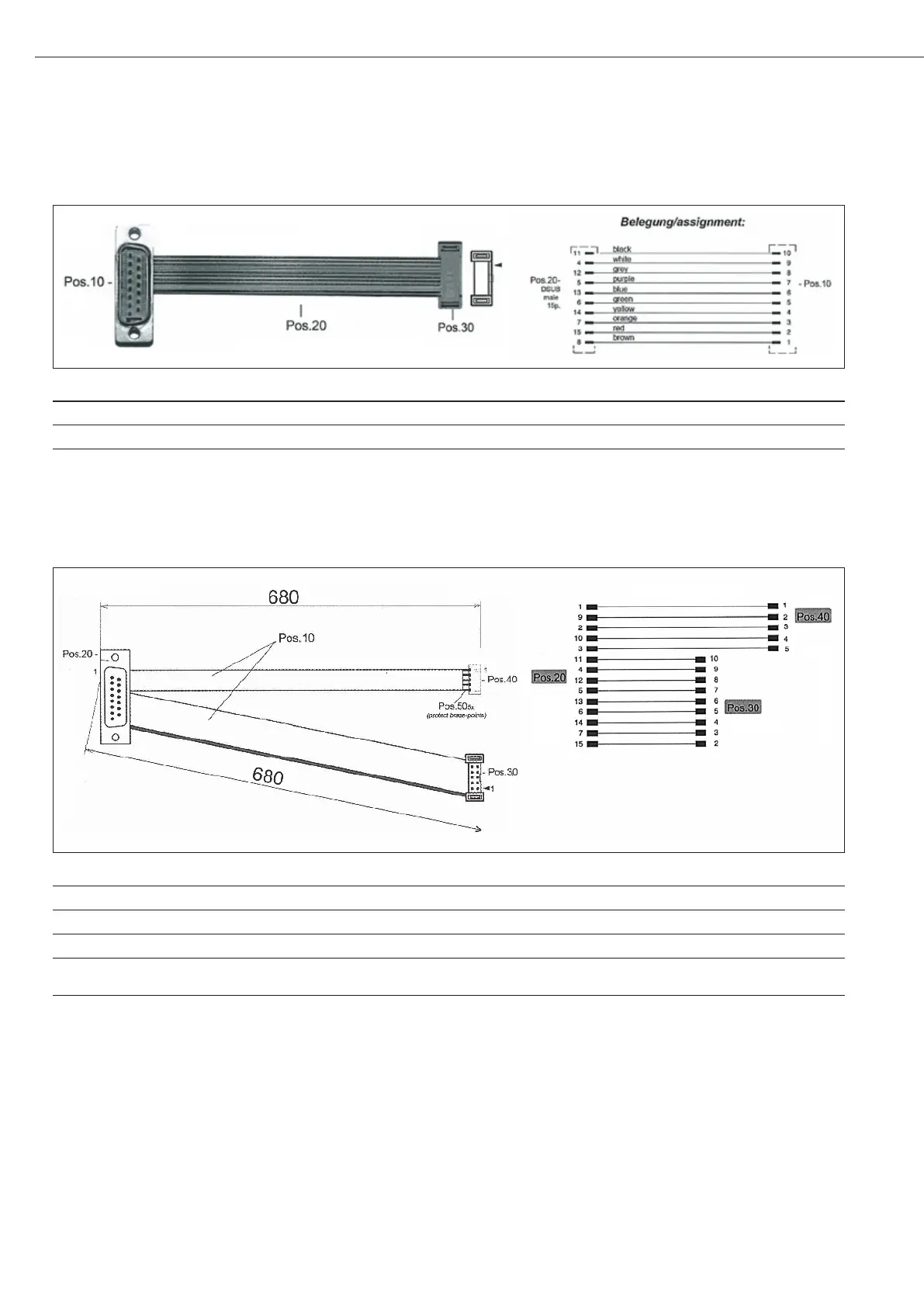

Models WZA…-L: Extension Cords between Weigh Cell and Electronics PCB
Pos.: Name: Manufacturer: Manufacturer#: Internal article #: Cutting length: Quantity: Approvals/Comments:
10 Male connector, 15-pin, D-SUB IDC free 1+ lowcost
20 Ribbon cable, 10 p. AWG28 color-coded 3M 3302-10 57001-368-01 500 mm 1+ UL-File#: E42769
30 Male connector, 10-pin, IDC 3M 4610-6051 010800 1+ UL-File#: E68080
Model WZA224-LC: Extension Cord between Weigh Cell and Electronics PCB
Pos.: Name: Manufacturer: Manufacturer: Internal article #: Cut length: Quantity: Approvals/Notes:
10 Cable ribbon, AWG28 15-pin gray 3M 3365 57001-318-01 500 mm 1+ UL file no. E42769
20 Male connector, D-SUB 15-pin IDC 54101-020-01 1+
30 Male connector, 10-pin IDC 3M 4610-6051 010800 1+ UL file no. E68080
40 Pin strip, 5-pin solder JST B5B-XH-A 57002-151-01 1+ or 57001-883-01
UL recognized E60389
50 Shrink tubing 2.4 + 1 2 31335-202-02 5+
! The user can create this cable himself/herself. The ambient conditions must be non-critical.
