34

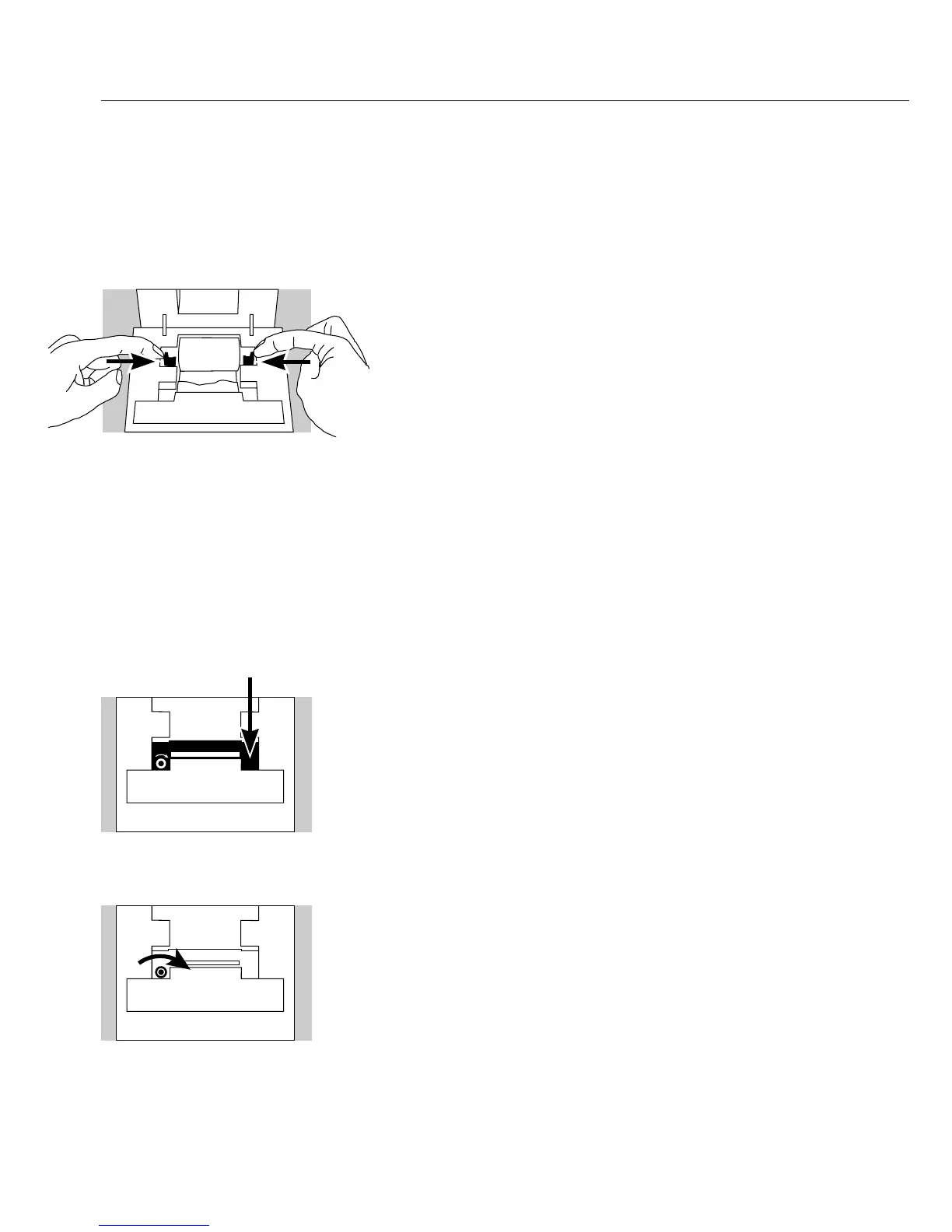

§ To align the paper roll, hold it so that you can push both
roll holders into the core
§ Release the roll holders on both sides
§ To close the paper roll compartment, lower the cover
Changing the Ink Ribbon Cassette
To operate your data printer, you must use a black ink
ribbon cassette, type ERC-22 (see “Accessories”).
§ Lift the cover of the paper roll compartment
§ To remove the paper from the ink ribbon cassette,
turn the paper roll opposite to the paper feed direction
§ Press down on the right side of the cassette
> The left side of the cassette will lift up
§ Remove the cassette
§ Insert a new ink ribbon cassette from the top
> The cassette will lock into place
$ If necessary, turn the small tension wheel located
on the left in the direction of the arrow until the ribbon
is stretched taut in front of the paper
§ To thread the paper, refer to “Changing the Paper Roll”
§ Lower the cover of the paper roll compartment to close it
