PM172 Quick Start Guide
Series PM172 Powermeters
9
Basic Setup
Entering the Password
The setup change menu is secured by a fou
r-digit user password. The meter is
primarily shipped with the password preset to 0, and password protection
disabled. You can change the password and enable password protection through
the Access Control menu.
If authorization is not required, just press the ENTER button to move to the Main
menu; otherwise enter a correct password to be authorized to access the meter
setup.

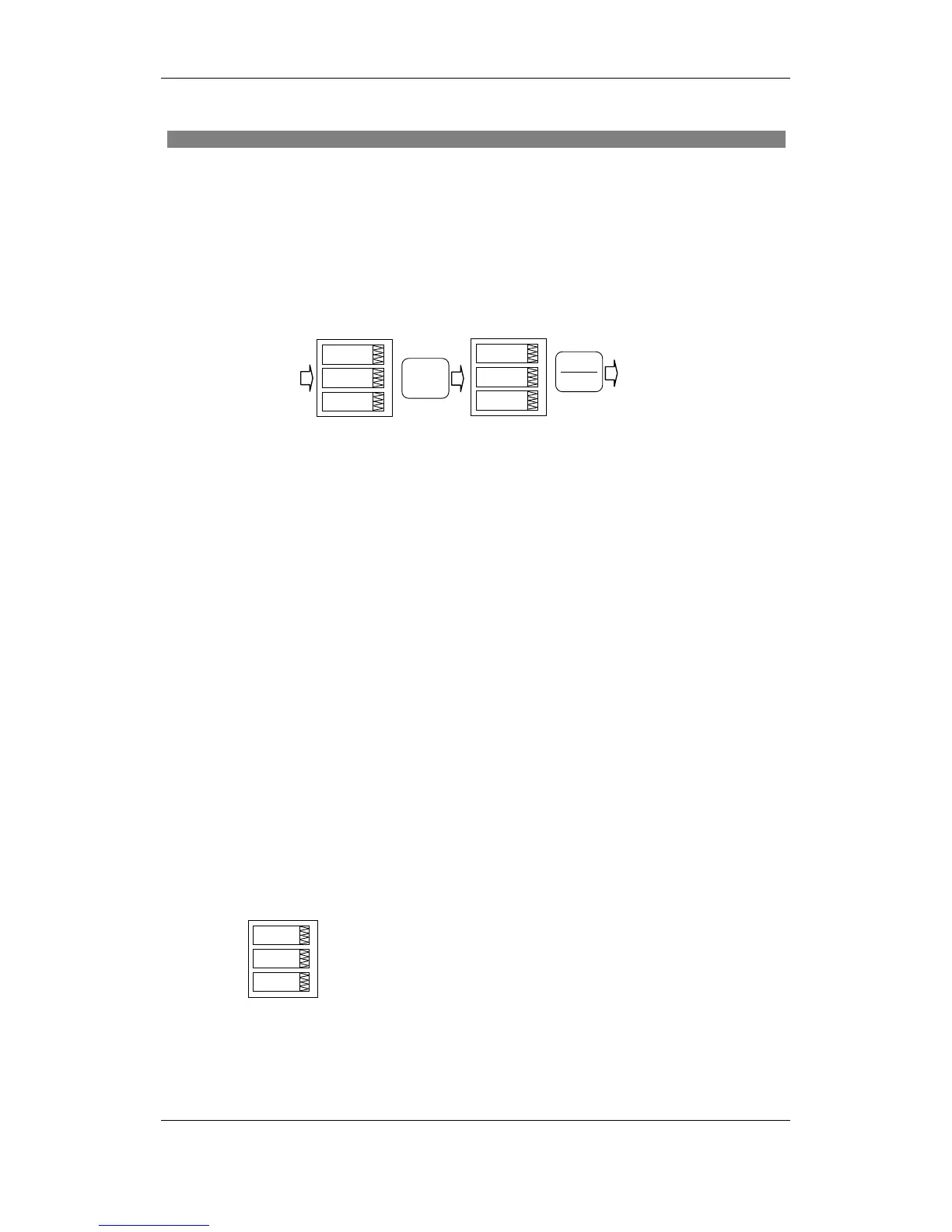

To enter the password:
1. Adjust the first digit with the UP and DOWN arrow buttons.
2. Press the SELECT button to advance to the next digit.
3. Adjust the remaining password digits in the same manner.
4. Press ENTER to confirm the password.
If the password entered is correct, you move to the Main menu, otherwise you
return to the previous menu.
Basic Configuration
Use the navigation buttons to set up the PM172 as required.
The table below shows the available options. The asterisk * shows the default
settings.
The basi
c menu allows you to configure the basic meter settings that define the
general operating characteristics of the device.
To enter the menu, select the “bASc” entry from the main menu, and then press
the ENTER button.
To select a setup option:
1. Press the SELECT button to activate the middle window.
2. Use the UP and DOWN arrow buttons to scroll to the desired option.
bASc
4Ln3
ConF
PASS
0000
ENERGY
ENTER
PASS
0201
S
