Satel ETHM-1 User Manual

10 ETHM-1 SATEL

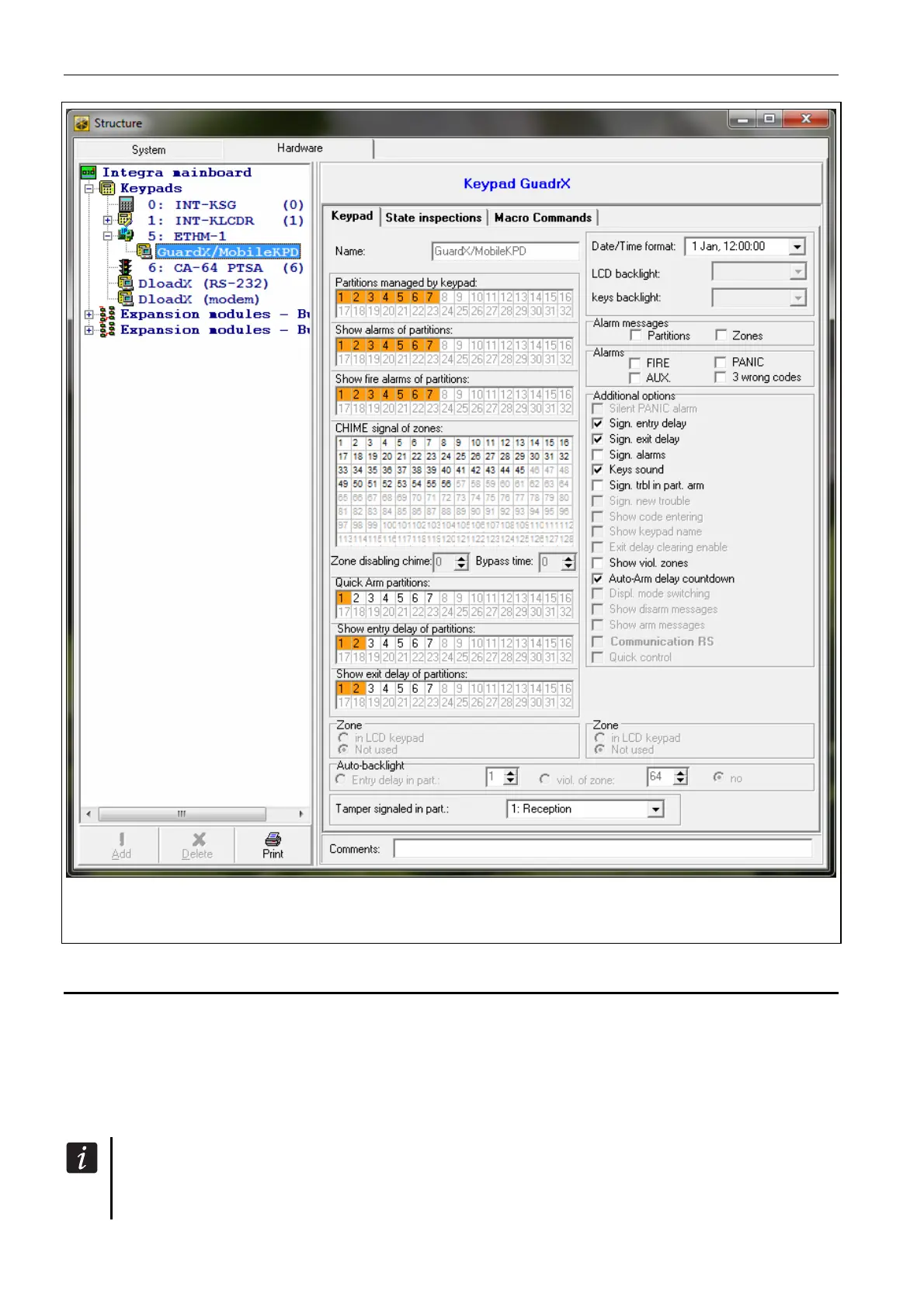

Fig. 6. DLOADX program: settings of the virtual keypad available in the GUARDX program, web
browser or mobile phone.
5.3 Macro commands
The MOBILEKPD2 PRO application allows control of the INTEGRA / INTEGRA Plus alarm
system by means of macro commands, thus enabling a number of different functions to be
executed quickly and easily by touching just a few keys. The macro commands can be
defined in the DLOADX program ("Structure" window "Hardware" tab keypad bus
"GuardX/MobileKPD" item "Macro commands" tab), and then saved to the mobile phone
memory.
The MOBILEKPD2 PRO application can be used to run the same macro commands
which have been defined for the INT-KSG keypad. In such a case, you do not have to
program any separate macro commands.

Satel ETHM-1 Specifications

Power

supply voltage	12 V DC ±15%
standby current consumption	120 mA
maximum current consumption	120 mA

Operating Environment

environmental class according to EN50130-5	II
operating temperature range	-10 to +55 °C
maximum humidity	93±3%

Weight and Dimensions

dimensions	68 x 140 mm
weight	64 g
