SATEL ETHM-1 11
5.3.1 Parameters and options

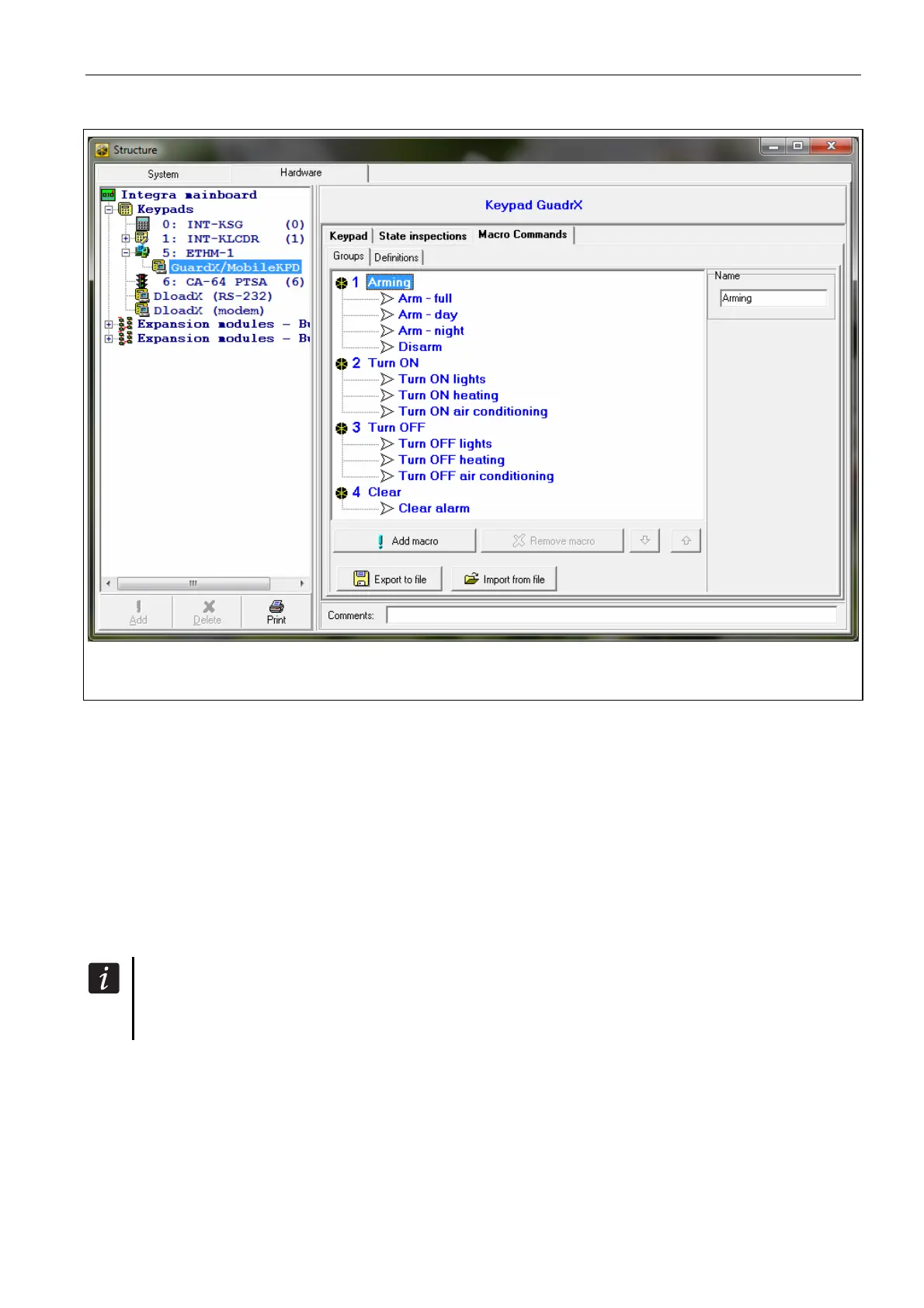

Fig. 7. DLOADX program: macro command groups programmed for the MOBILEKPD2 PRO
application.
Macro command group – the list of macro commands which will be displayed on touching
the macro key. You can define 4 macro command groups.
Name of macro command group – the name presented on the macro key (up to 8
characters).
Macro command – a sequence of actions, composed of single commands, to be executed
by the control panel on running the macro command.
Macro command name – an individual name of macro command (up to 32 characters).
Code – a code which is to be used for authorization when executing the commands
contained in macro command. For execution of these commands to be possible, an
adequate authority level has to be assigned to the code.
If, when running a macro command, it will turn out that the code is invalid (e.g. it has
been changed in the meantime), the user will be able to enter the correct one. It will be
automatically saved to the phone memory (and replace the invalid code).
Authorization required – if this option is enabled, the macro command will only be run after
user authorization by means of a code. The code entered in the "Code" field will be
ignored.
Disabled if armed – if this option is enabled, the macro command will not be available, when
any of the partitions operated by the keypad is armed.
Autoexecute – if this option is enabled and there is just one macro command in the group,
touching the macro key will not display the list of macro commands, but will run the macro

Satel ETHM-1 Specifications

Power

supply voltage	12 V DC ±15%
standby current consumption	120 mA
maximum current consumption	120 mA

Operating Environment

environmental class according to EN50130-5	II
operating temperature range	-10 to +55 °C
maximum humidity	93±3%

Weight and Dimensions

dimensions	68 x 140 mm
weight	64 g
