SL700 GNSS RTK System Getting Started
17
4. Rover settings
The mobile station receiver is fixed on the telescopic centering pole, and the handbook is fixed
on the handbook carrier. The mobile station settings are basically the same as the base station,
mainly including the working mode setting, the altitude angle, and the like. The difference is
that the mobile station working mode increases the handbook difference.

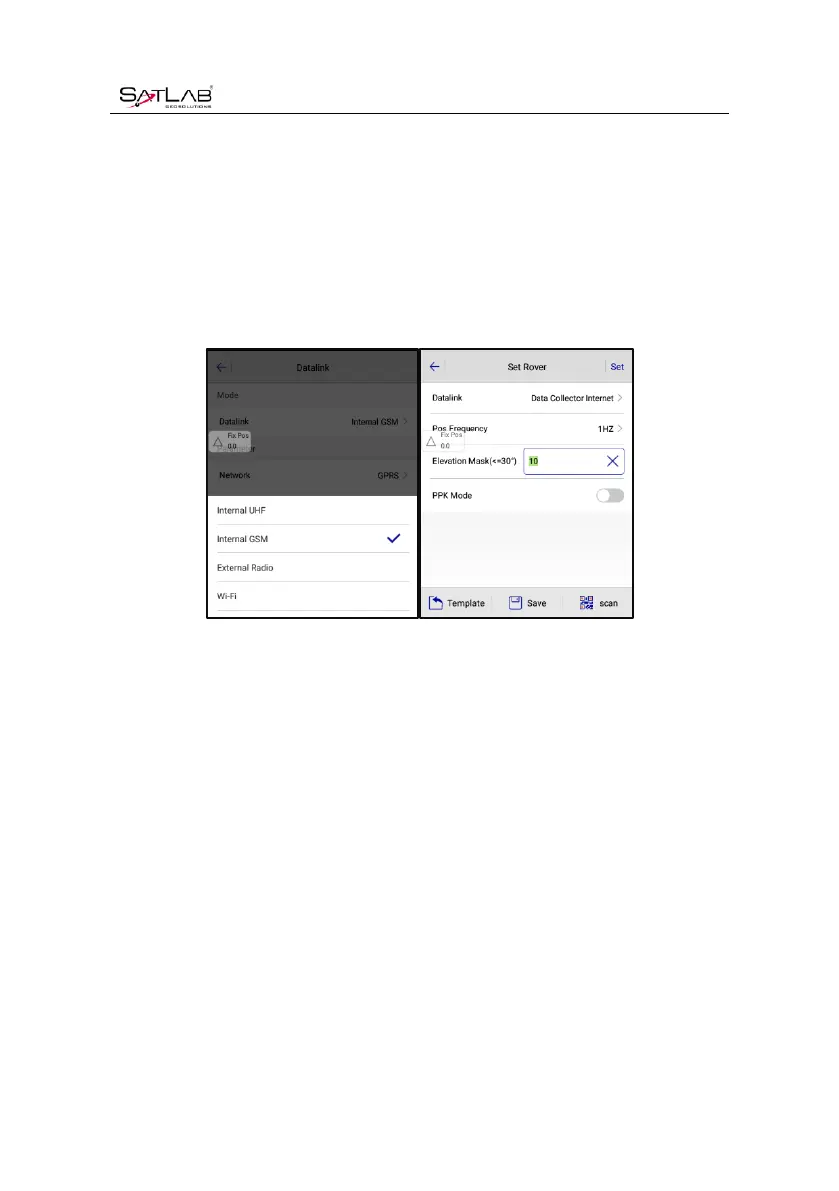

Figure 2-4-6 Choice of Radio Figure 2-4-7Other Settings
2.5 Firmware upgrade
The receiver uses 3G network, and the host firmware can be automatically upgraded through
the network ( please refer to: Satsurv Software User Manual), and the user can also choose to
manually upgrade through U disk.
Steps to upgrading the firmwareby USB cable：
1. Turn on the receiver, connect the receiver and computer with the cable attached. It will show
the update driveafter clicking thecomputer;
