SL700 GNSS RTK System Getting Started
27
2.Five-pin data cable (DG-3): to connect the host and external radio to transmit differential
data.

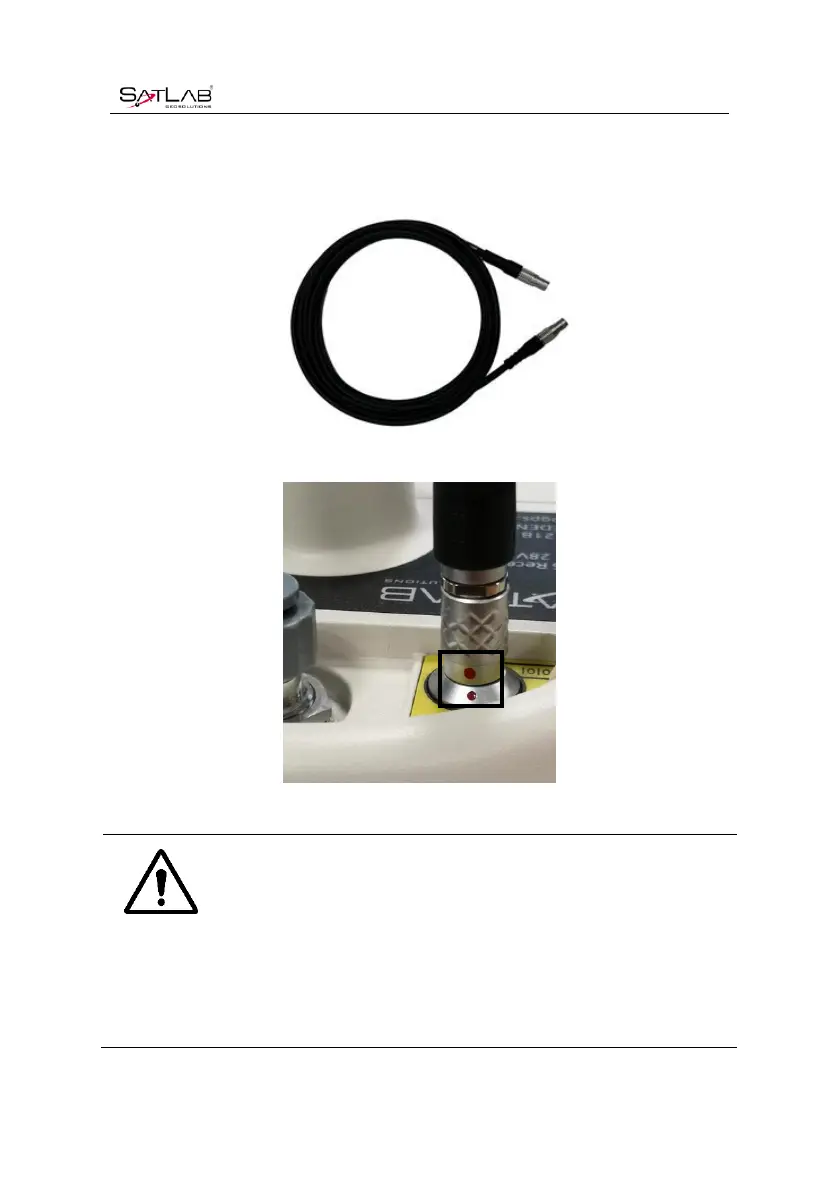

Figure 4-2-2Five-pin Data Cable
Figure 4-2-3Five-pin Plug
Notice: 1. When connecting various plugs of receiver, it shall align the red
point in line joint at the red point in receiver socket, or it will damage the
receiver socket and plugs of various lines.
2. When plug out the plug, directly grasp the sliding collar and pull out the plug
with effort. It shall not rotate the plug.
