4. MEASUREMENT
Different measurement functions can be available for different TV standards. Following sections cover most of the general
measurement functions. Special notes are added in case the measurement function described doesn’t apply to specific TV
standard.
4.1 CHANNEL PLAN
TV channel lineup can be discovered or composed and saved on the unit for easily traversing different channels in different
measurement modes without entering channel frequency. If channel number and channel frequency are known to the
user, channel plan can be composed by using Channel Editor function described below. Otherwise, Channel Discovery
function can automatically discover available TV channels from the input signal.
4.1.1 NETWORK (PROFILE) EDITOR
All information of channel lineup is grouped and saved under Network (profile). Network profile can be selected and
loaded before the measurement gets started. Multiple Network profiles can be saved with different channel lineup
information, but only one Network profile can be selected at once for measurement purpose. Depending on the TV signal
type enabled, a default Network profile might be available for selection. If default Network profile is unavailable, it’s easy to
create one by using the Add button.

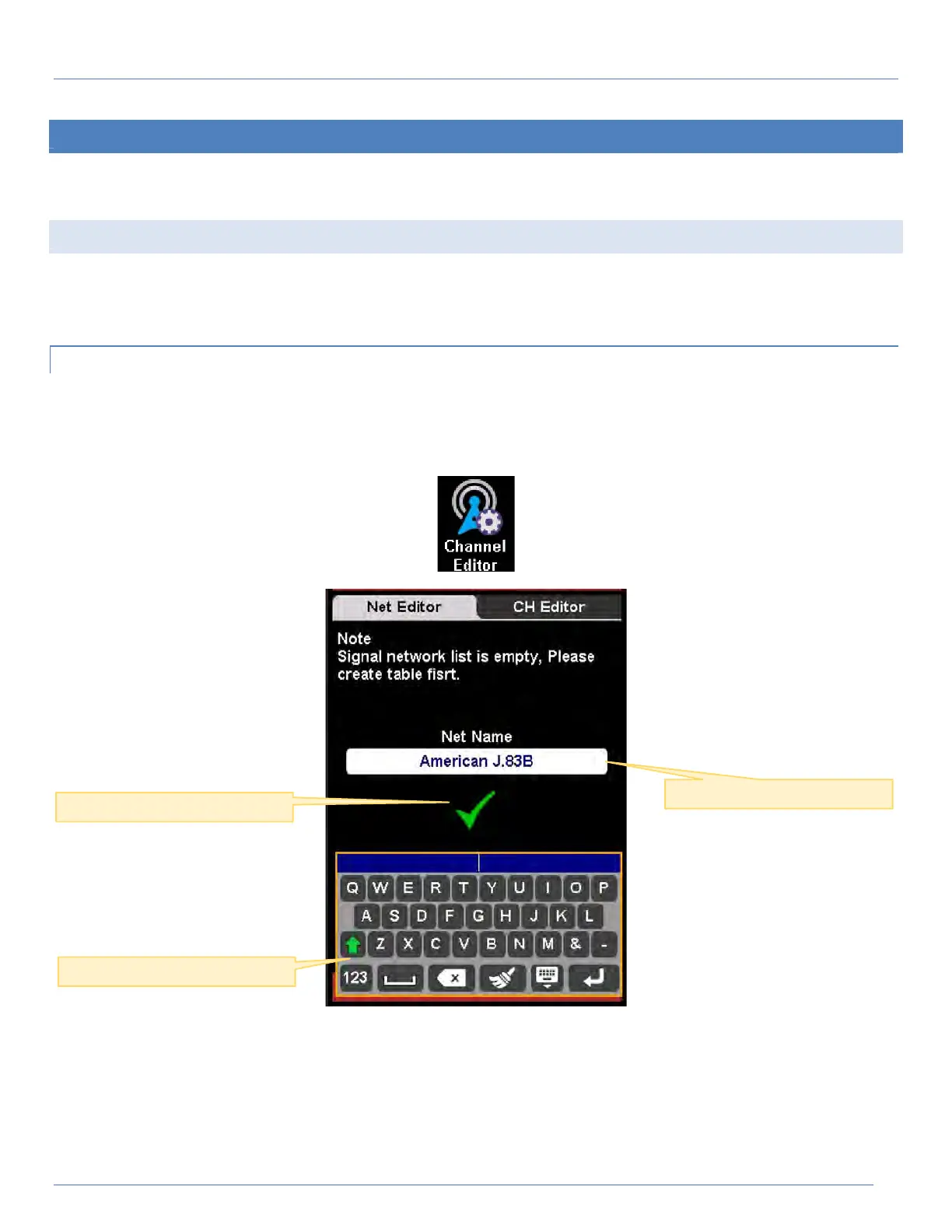

Edit Network profile Name
Alphanumerical soft keypad
Network profile name
OK button
