4.6.1 HOW TO IDENTIFY CHANNEL FREQUENCY FROM SPECTRUM TRACE

The center frequency of TV channel can also be identified by following steps below

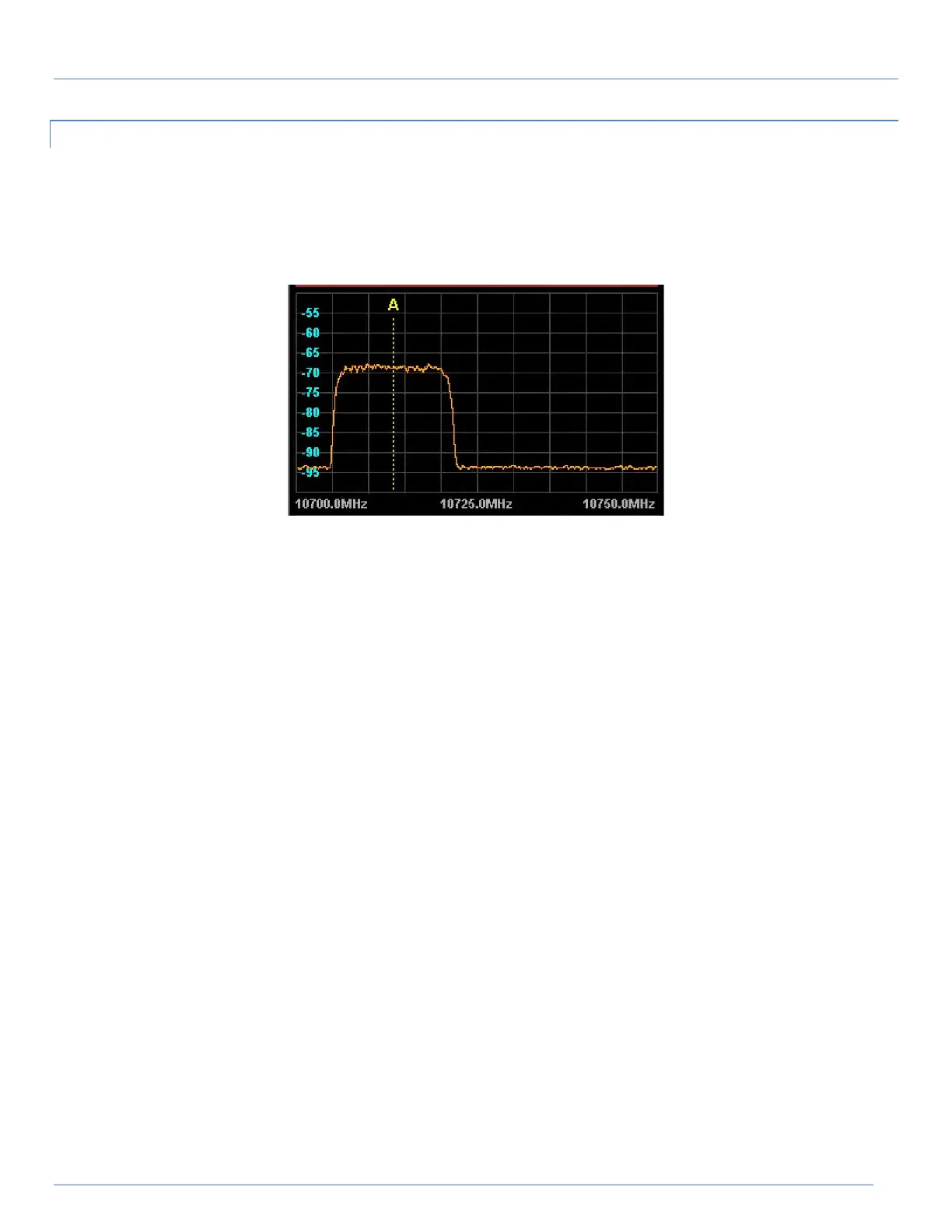

 Identify the spike of TV channel from the spectrum trace

 Zoom in to the area and set the frequency span to be 50MHz

 Enable a Marker (either A or B) and move the marker to the center of the spike

 Read the frequency of marker position as the center frequency of specific TV channel
