4.9 TILT
The Tilt measurement helps to quickly measure the flatness of a TV system and the gain of the splitters / taps by showing the
power level measurement of all channels in bar chart and tabular formats.

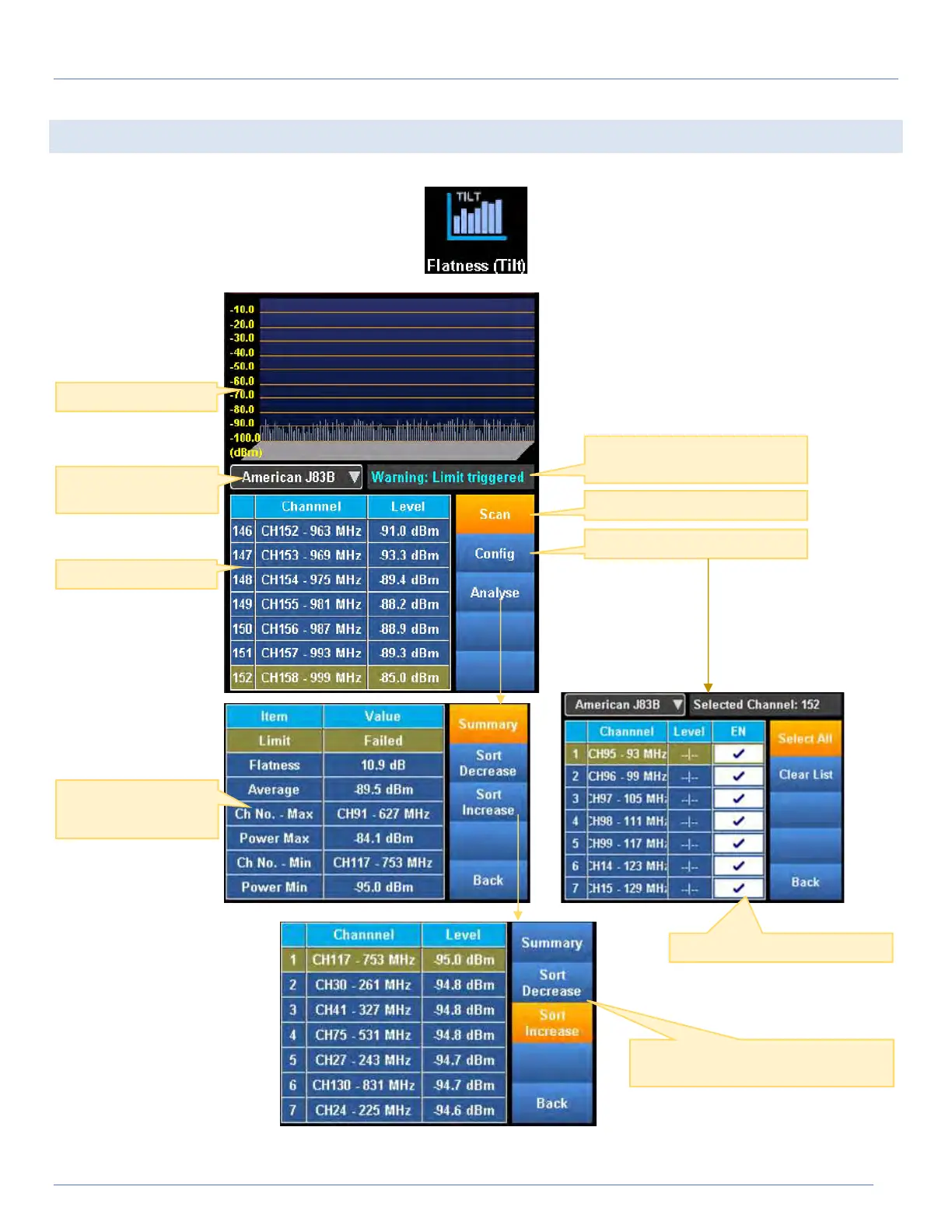

Power level table
Power level chart
Warning message if power level
limit is triggered
Tilt scan
Dropdown for Network
profile selection
Tilt measurement configuration
Enable/Disable selection
Summary of power
measurement of
selected channel
Sort channels in ascending /
descending order by power level
power
