Handheld Labeling Solutions
Lift the label roll cover by gently
pressing in on the marked grips
and lifting up.
1
Turn the tool over and lift up
on the marked tab on the tool’s
door to open up the bottom.
2
After opening the door, gently
lift the pressure plate and pull to
open up the entire tool.
3
Take the roll of labels and
remove one round, eliminating
any glue simplifying the loading
process.
4
Gently feed the labels through
the tool from the top.
5
The labels will slide through
the tool and come out from the
bottom.
6
Once loaded, pinch the levers on
either side of the tool and slide
the label roll into place. Release
the levers, tightly close the label
roll cover.
7
After closing the cover, ip
the tool upside down. Pull the
labels out about 6”, aligning the
labels within the guide. Tightly
close the pressure plate.
8
Pull the labels back, towards
the tool handle, making sure to
align the tabs of the labels with
the knobs on the reel.
9
Close the door on the bottom
of the tool by gently lifting the
door while pushing it down into
place. The tool is now ready
to use.
10
Loading Label Rolls
At the front of the
tool, pinch the
top, ribbed lever
together with the
lower lever.
1
Tilt the assembly
back and lift up to
remove from the
tool.
2
Gently slide the ink
roller free from the
assembly.
3
Slide the fresh ink
roller into place,
making sure the arrow
indicators align.
4
Pinching the levers
of the assembly
together, slide the
assembly into place.
5
Once in position,
release the levers
and the assembly
will snap into place.
6
Replacing Ink Roller
Pull the pointer in or out as
required and rotate to select
print character.
1
Push the pointer back to its
original position.
2
Setting Print Characters

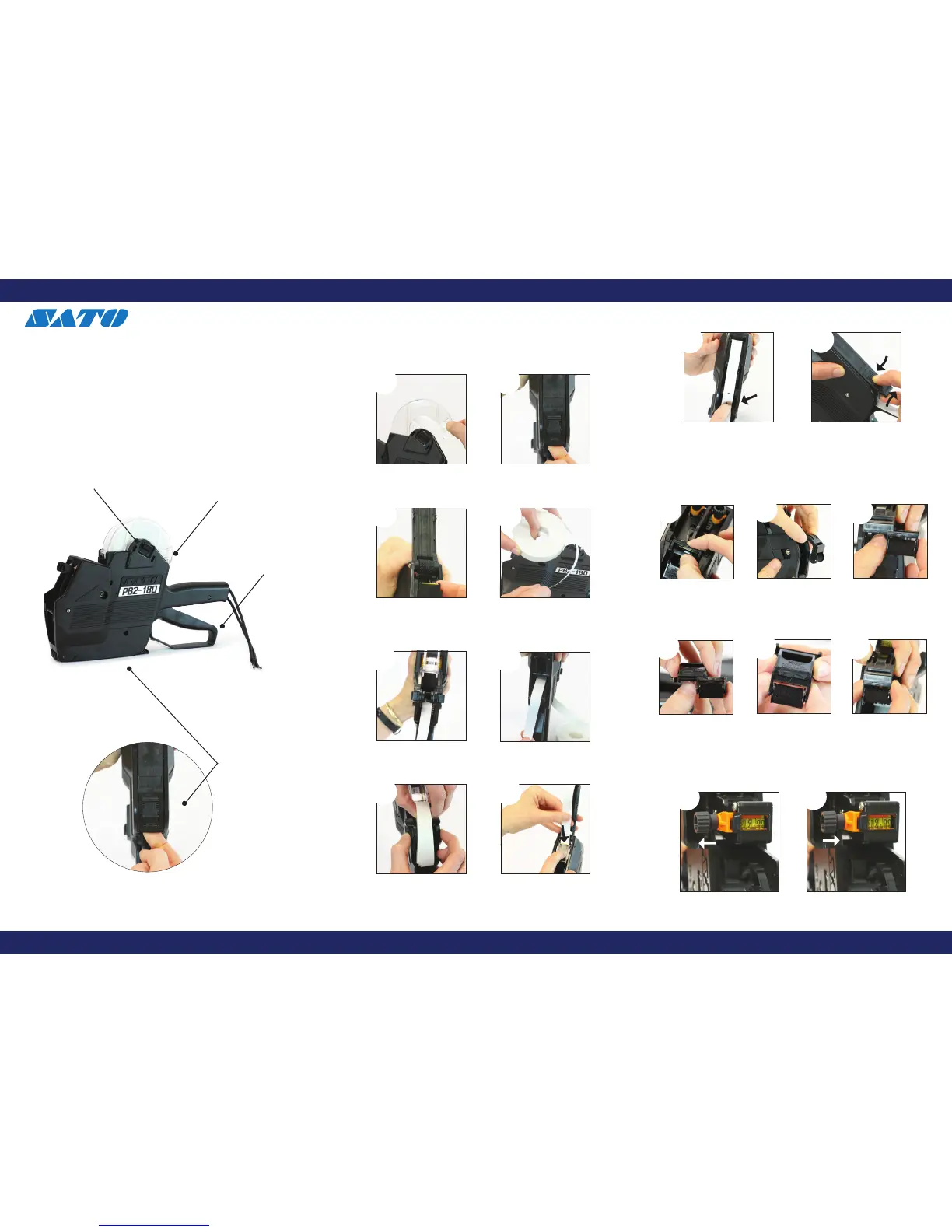

SATO’s PB2 Series of handheld labelers are equipped
with commonly used expressions, larger font size and
a wide-open path for easy label loading. The PB2
Series is intuitive to operate and user friendly.
Label Roll Cover
Levers
Tool Door
Tool Door
Handle
