Step
å

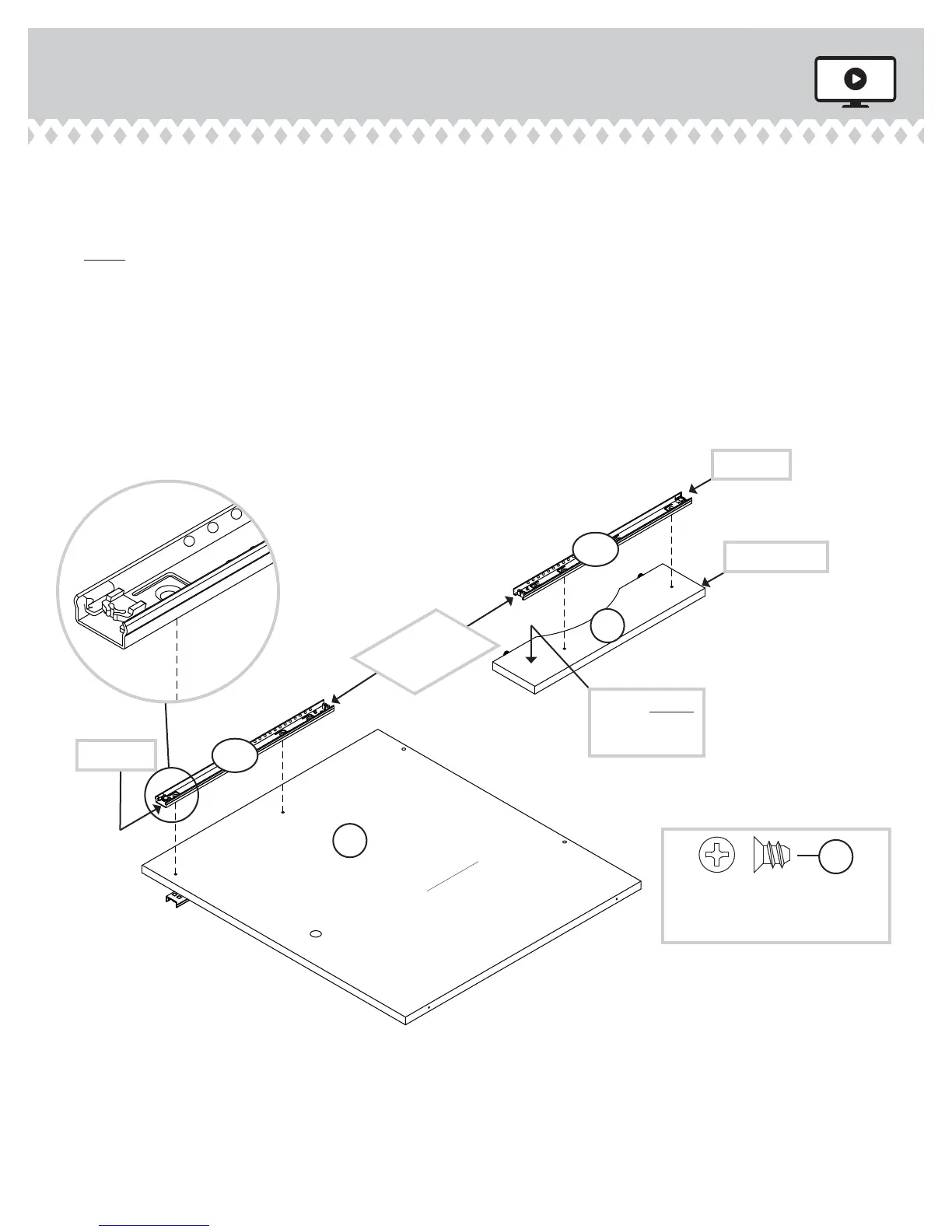

Fasten the NARROW EXTENSION RAILS (PPP) to the other
surface of the LEFT UPRIGHT (F) and KEYBOARD UPRIGHT (VV).
Use four GOLD 5/16" FLAT HEAD SCREWS (3S).
å
NOTE: For each EXTENSION RAIL, turn a SCREW into the hole
shown in the enlarged diagram. Then, slide the inner cartridge
of the EXTENSION RAIL in to fi nd the other hole that
lines up with the holes in the UPRIGHTS. Turn a
SCREW into this hole.
KEYBOARD
DRAWER ON LEFT
VV
Surface without
TWIST-LOCK
®
FASTENER holes
PPP
PPP
F
GOLD 5/16" FLAT HEAD SCREW
(4 used in this step)
3S
Narrow
Extension
Rails
Open end
Finished edge
Open end
Step 9
417714www.sauder.com/services
Page 15
Surface without
TWIST-LOCK®
FASTENERS
To Next Page
