Sauder Carson Forge 416969 - Step 29: Attach Extension Slides to File Drawer; Attach extension slides to file drawer sides

Step Step 29
416969 www.sauder.com/servicesPae 34
å

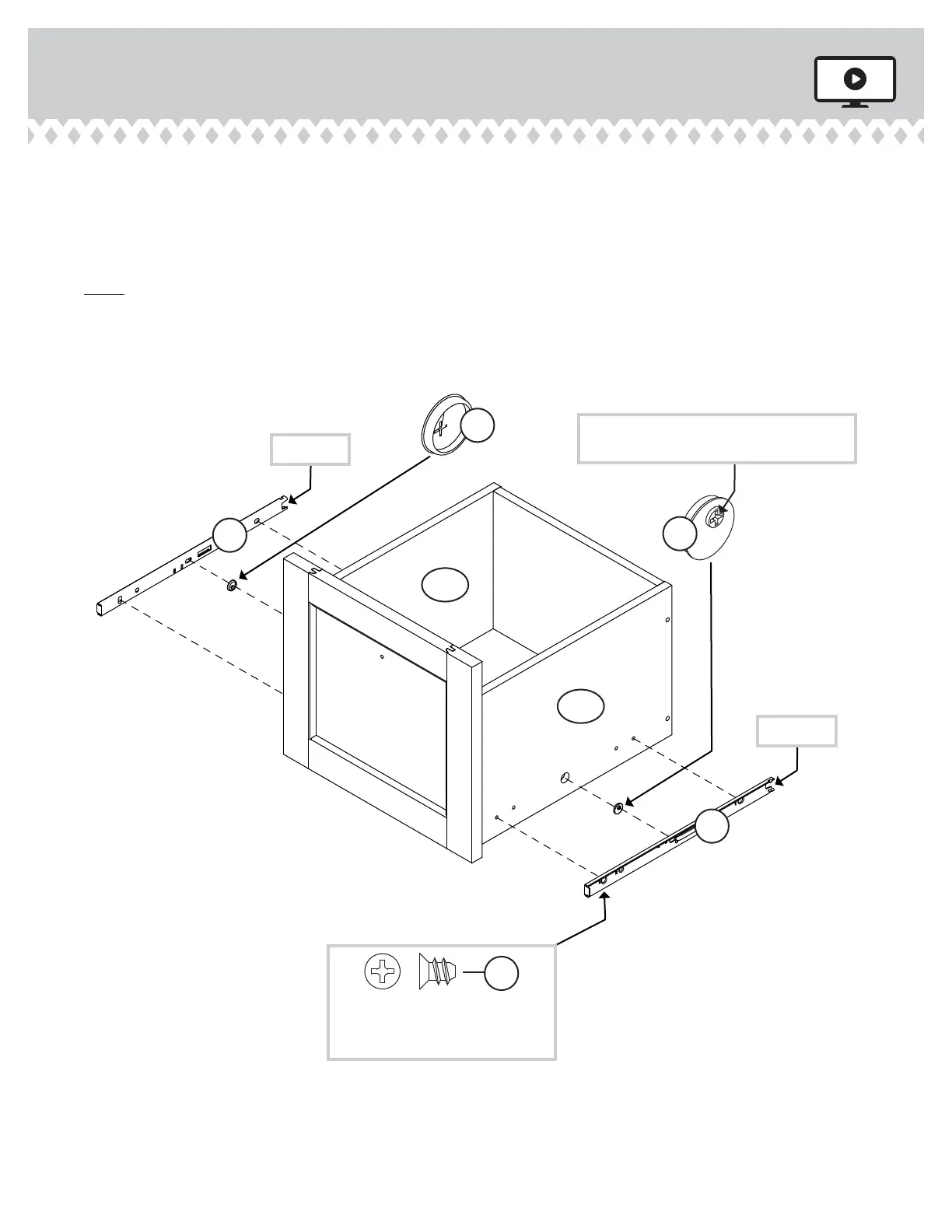

Insert a SLIDE CAM (10A) into the FILE DRAWER SIDES (D14 and D15).
å
Fasten the EXTENSION SLIDES (Z) to the FILE DRAWER SIDES (D14
and D15). Use four GOLD 5/16" FLAT HEAD SCREWS (3S) throuh
holes #1 and #3.
å
NOTE: The screw head in the CAM must be visible throuh the slotted
hole in the SLIDE.
Open end
Screw head - turn CAM to line up holes in
the SLIDES with holes in DRAWER SIDES
1
2
3
1
2
3
Z
Z
10A
10A
Open end
GOLD 5/16" FLAT HEAD SCREW
(4 used in this step)
3S
D15
D14
