Saunier Duval ECOSY 24 E - Dimensions; Boiler Schematic

9
227
520
890
140
373
201,5

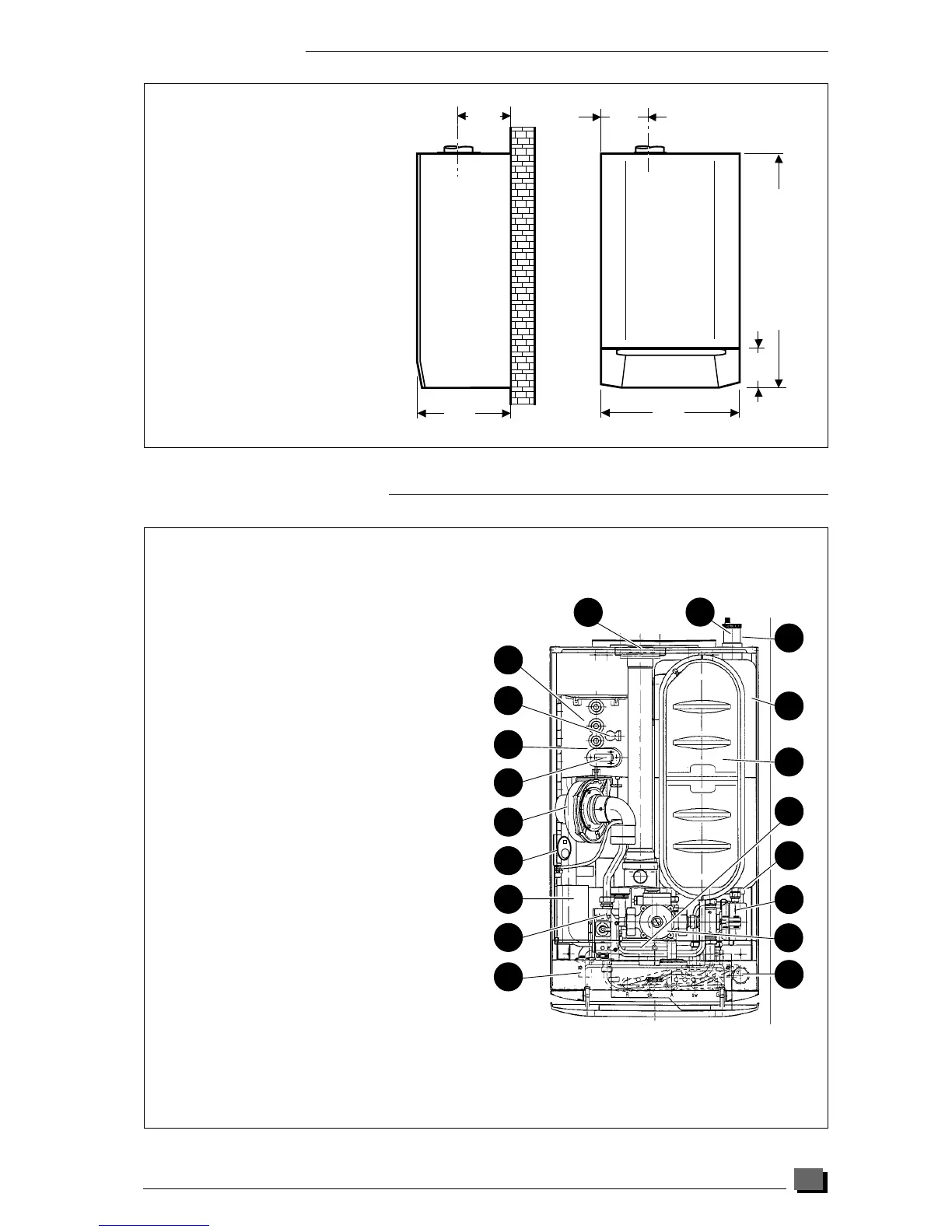

BOILER SCHEMATIC
Hab 204a
Diagram 5
1-Automatic air vent
2-Air inlet/ flue products outlet
3-Heat exchanger
4-Central heating flow thermistor
5-Burner
6-Viewing window with ignition electrode
7-Air pressure switch
8-Fan
9-Electronic control box
10 - Gas valve
11 - Condense drain
12 - Pressure gauge
13 - Pump
14 - 3-way valve (ECOSY 24 E/28 E only)
15 - Expansion vessel
16 - Cylinder (ECOSY 24 E/28 E only)
17 - Cylinder automatic air vent
(ECOSY 24 E/28 E on&ly)
18 - Central heating return thermistor
19 - Domestic hot water thermistor
(ECOSY 24 E/28 E only)
1
➞
➞
3
4
5
6
8
7
9
10
11
16
12
15
2
17
18
13
14
19
Hab 205
DIMENSIONS
Diagram 4
The boiler is delivered in three
separate packages :
- the boiler itself
- the fixing jig
- the flue system
ECOSY 24 E
Net weight : 68 kg
Gross weight : 72 kg
ECOSY SB 24 E
Net weight : 58 kg
Gross weight : 62 kg
ECOSY 28 E
Net weight : 73 kg
Gross weight : 87 kg
ECOSY SB 28 E
Net weight : 63 kg
Gross weight : 77 kg
890 (Ecosy 24 E/SB 24 E) 985 (Ecosy 28 E/SB 28 E)
