Savant CLI-W210 User Manual

Multistat Smart Thermostat Deployment Guide (CLI-W210x/W200x) 8 of 21 45 Perseverance Way, Hyannis MA 02601
009-1959-00 | 200723 Savant.com | 508.683.2500

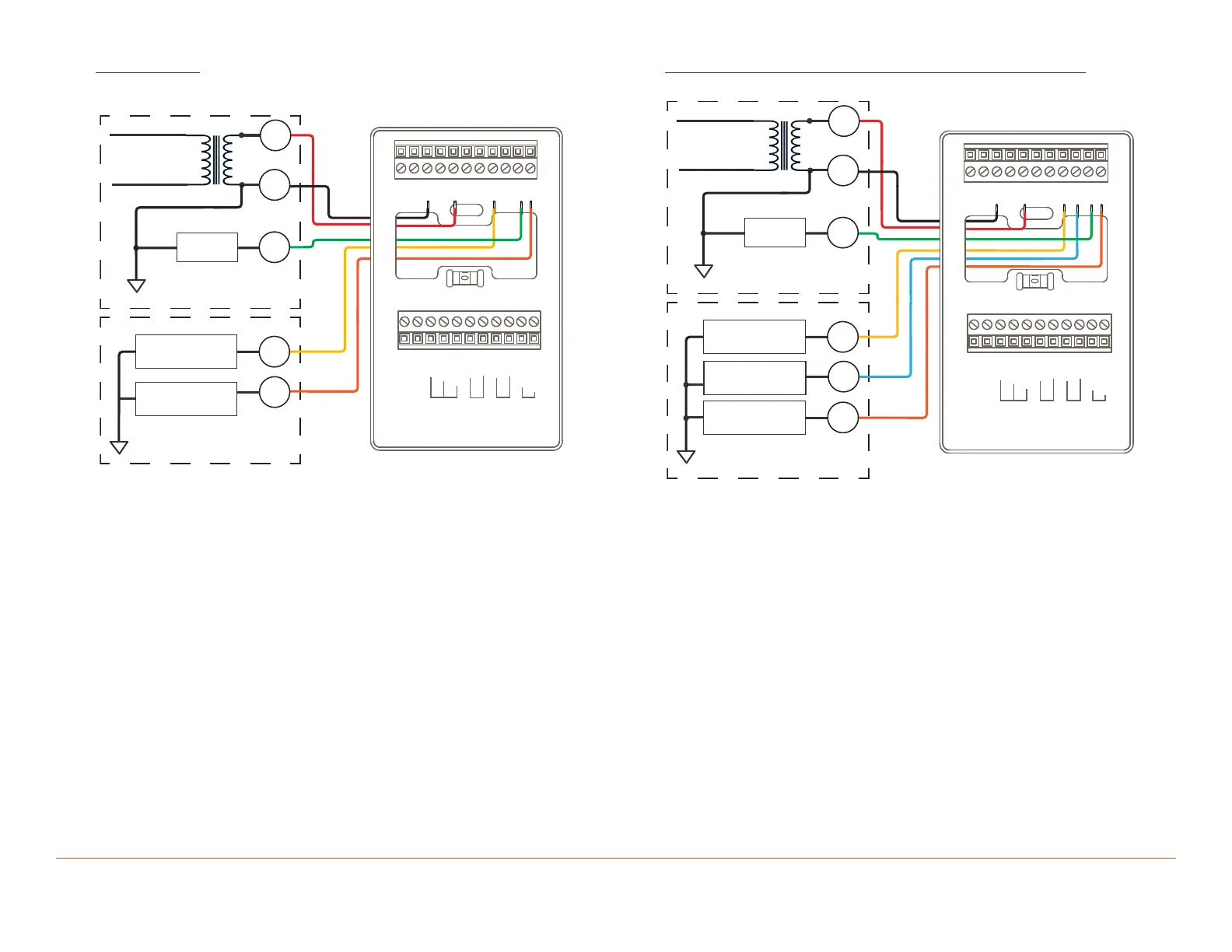

Heat Pump
o
G
AUX OUT AUX IN
RS2 RS1
GND GND
RX- RX+
GND
1-WIRE
5V DC
Y2 Y1
W2 W1
RC RH
TX+ TX-
24C
24V AC120V AC
INDOOR HANDLER
CONNECTIONS
HEAT PUMP
CONNECTIONS
Compressor
1st Stage
Fan Relay
G
Y1
R
C
Reversing
Valve
O
– Connect 24V AC from the air handler to the RC and 24C terminals on
the thermostat.
– Leave jumper shunt JP1 on the thermostat's circuit board installed.
– Connect the Y1 terminal on the thermostat to Y1 on the heat pump.
– Connect the G terminal on the thermostat to the fan on the air
handler.
– Connect the O terminal on the thermostat to the changeover/
reversing valve on the heat pump.
– Savant recommends using standard #18 AWG HVAC wiring.
Heat Pump, Two Stage Heat, Two Stage Cool
o
G
AUX OUT AUX IN
RS2 RS1
GND GND
RX- RX+
GND
1-WIRE
5V DC
Y2 Y1
W2 W1
RC RH
TX+ TX-
24C
24V AC120V AC
INDOOR HANDLER
CONNECTIONS
HEAT PUMP
CONNECTIONS
Compressor
1st Stage
Fan Relay
G
Y1
R
C
Reversing
Valve
O
Compressor
2nd Stage
Y2
– Connect 24V AC from the air handler to the RC and 24C terminals on
the thermostat.
– Leave jumper shunt JP1 on the thermostat's circuit board installed.
– Connect the Y1 terminal on the thermostat to Y1 on the heat pump.
– Connect the Y2 terminal on the thermostat to Y2 on the heat pump.
– Connect the G on the thermostat to the fan on air handler.
– Connect the O terminal on the thermostat to the changeover/
reversing valve on the heat pump.
– Savant recommends using standard #18 AWG HVAC wiring.
