ASSEMBLY12
Load bearing underlay
All of the products in our portfolio are classified as light-duty firepla-
ces; in most cases, there is no need to reinforce the floor, so that you
can typically use the normal floor.
However, you should make sure that the load bearing underlay can
bear the weight of the wood-burning stove and that of the chimney.
Floor plate
If you are setting up the stove on a flammable floor, observe national
and local regulations on the size of the non-flammable underlay that
covers the floor around the stove.
Your local Scan dealer can advise you on regulations concerning
flammable materials in the vicinity of your stove.
The idea behind the floor plate is that it protects the floor and flam-
mable material against sparks.
The floor plate can be made of steel or glass, and the stove can be set
up on brick, natural stone or similar materials.
This Scan wood-burning stove has an integrated floor plate, and
can thus be set up on any flammable material without a protective
underlay.

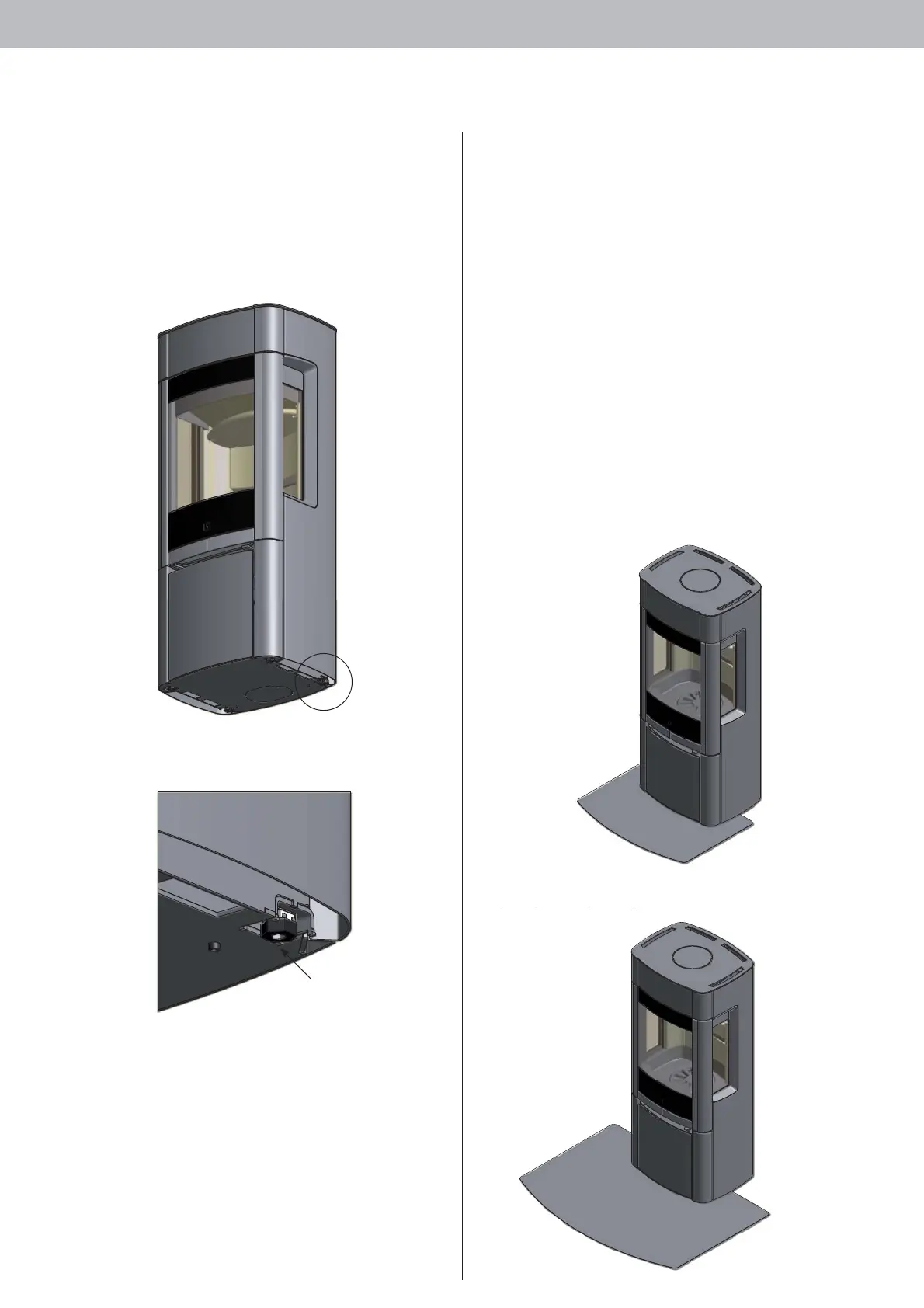

Small shaped floor plate in glass or steel.
Large shaped floor plate in glass or steel
Height adjustment of stove
The Scan 64 has four adjustment screws under the stove. Use the
adjustment screws to get the stove to stand straight and level.
Tilt the wood-burning stove and adjust the adjustment screws.
If you are using a shaped floor plate, you should adjust the stove
upwards to allow the plate to be inserted under the front of the stove.
Ajustment screw
B
B
