MAINTENANCE33
Service

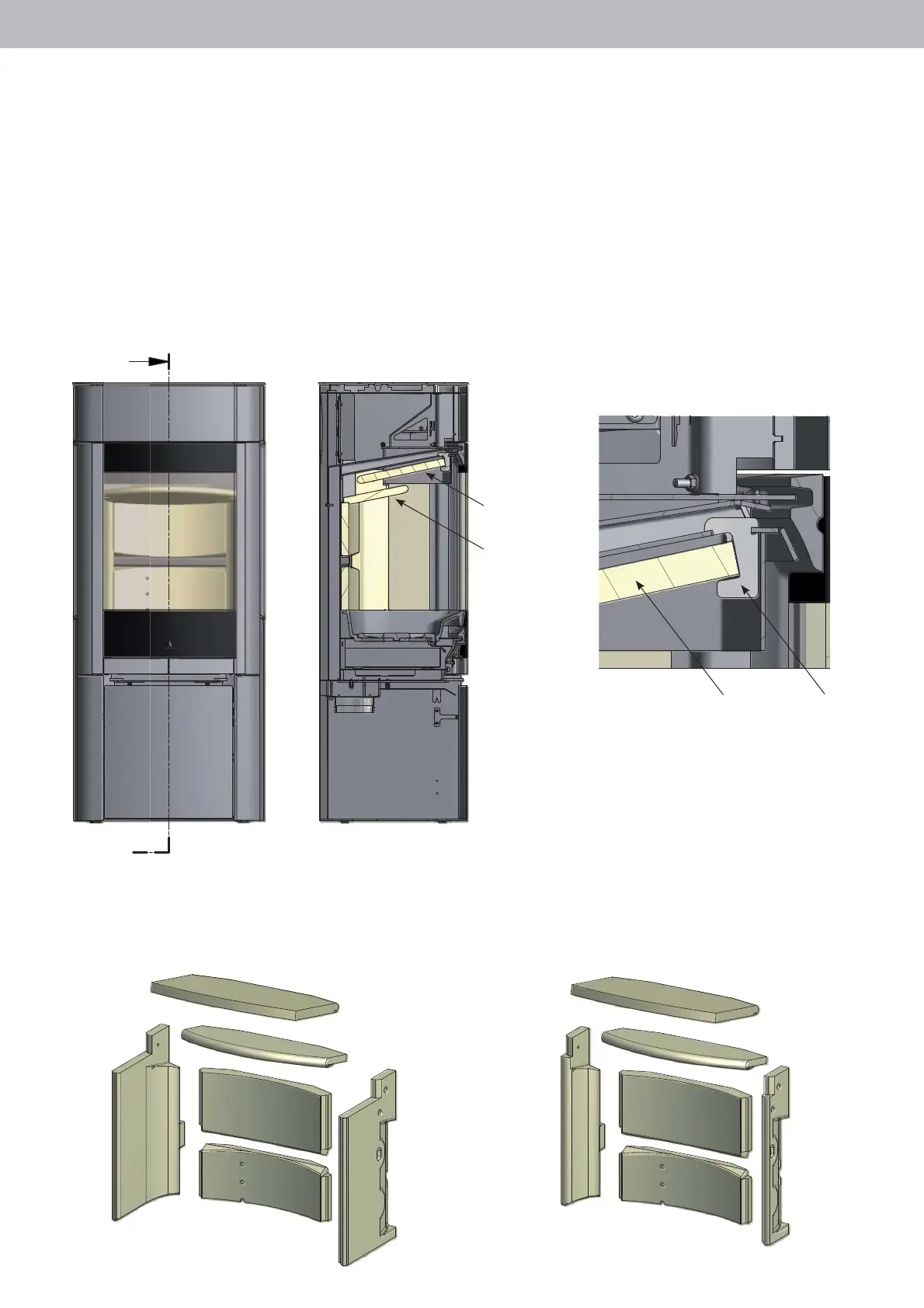

Baffle plates and combustion chamber lining
Be very careful when removing the baffle plates from the stove.
Lift up the lower baffle plate, remove the pins and take out the baffle plate.
Lift the upper baffle plate to the back of the combustion chamber. Remove pins. Pull the plate free from the baffle plate holder and remove it.
Lift the combustion chamber lining’s sides, remove them from the rear cover and take them out.
Note that the combustion chamber lining’s sides support the rear cover so this could fall when the sides are removed.
Remove the rear cover.
Upper baffle
plate
Lower baffle
plate
Scan 64-1, Scan 64-3 and Scan 64-5 (without side windows) Scan 64-2, Scan 64-4 and Scan 64-6 (with side windows)
A
Upper baffle plate Holder for
upper baf-
fle plate
