ASSEMBLY15
Connection piece / rear outlet

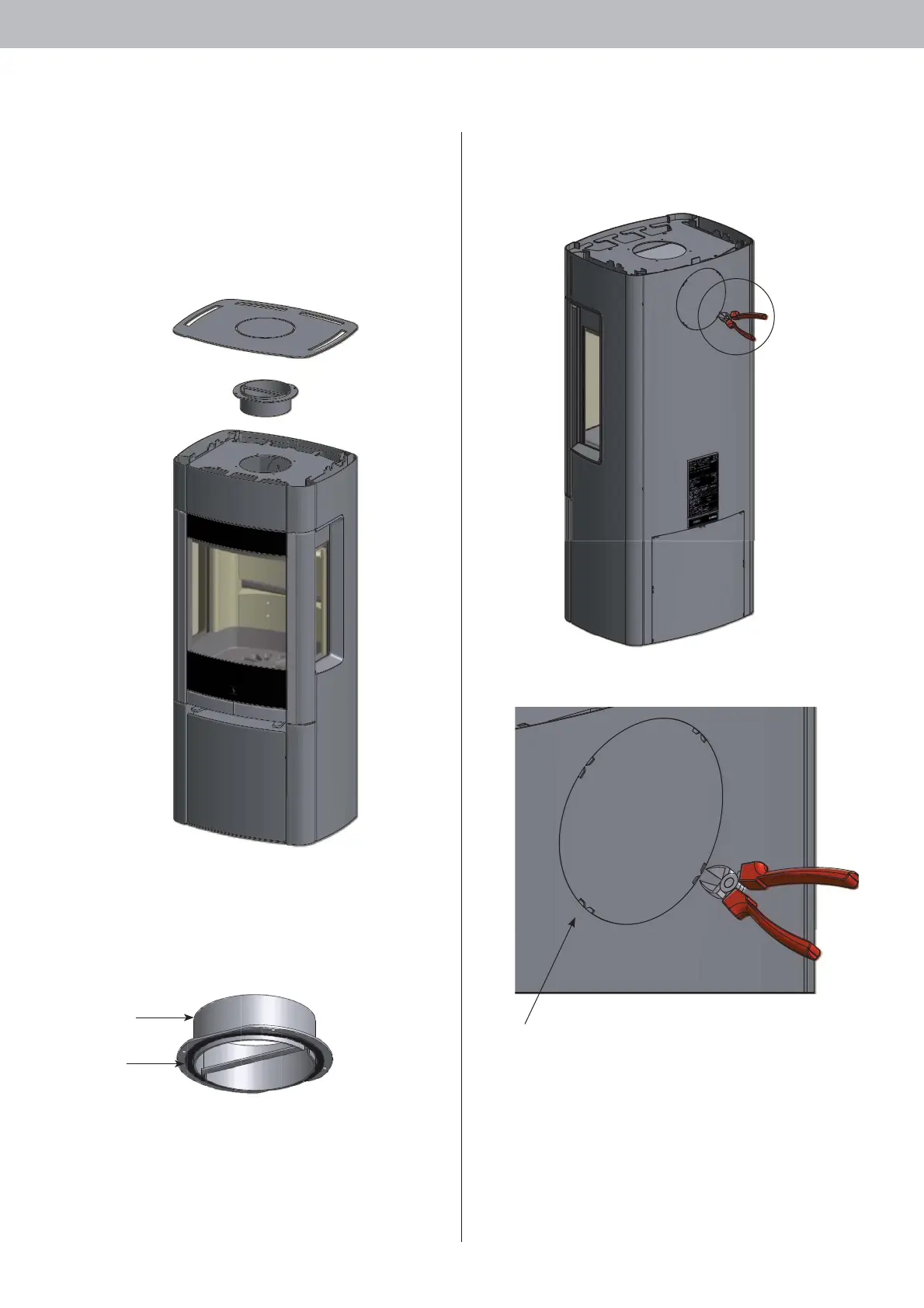

The stove is prepared from the factory for top outlet.
The connecting piece is placed loosely in the top outlet of the stove.
The gasket for the connecting piece is in the service box.
The screws for fastening the connecting piece are in the stove’s ash
drawer.
Lift the top plate and connecting piece off the stove.
Cut off the cover plate from the rear plate with cutting pliers at the
fastening points.
Fastening points
D
D
Connecting
piece
Ceramic
gasket
Mount the ceramic gasket on the connecting piece
To Next Page
