ASSEMBLY18
Fitting the soapstone sides

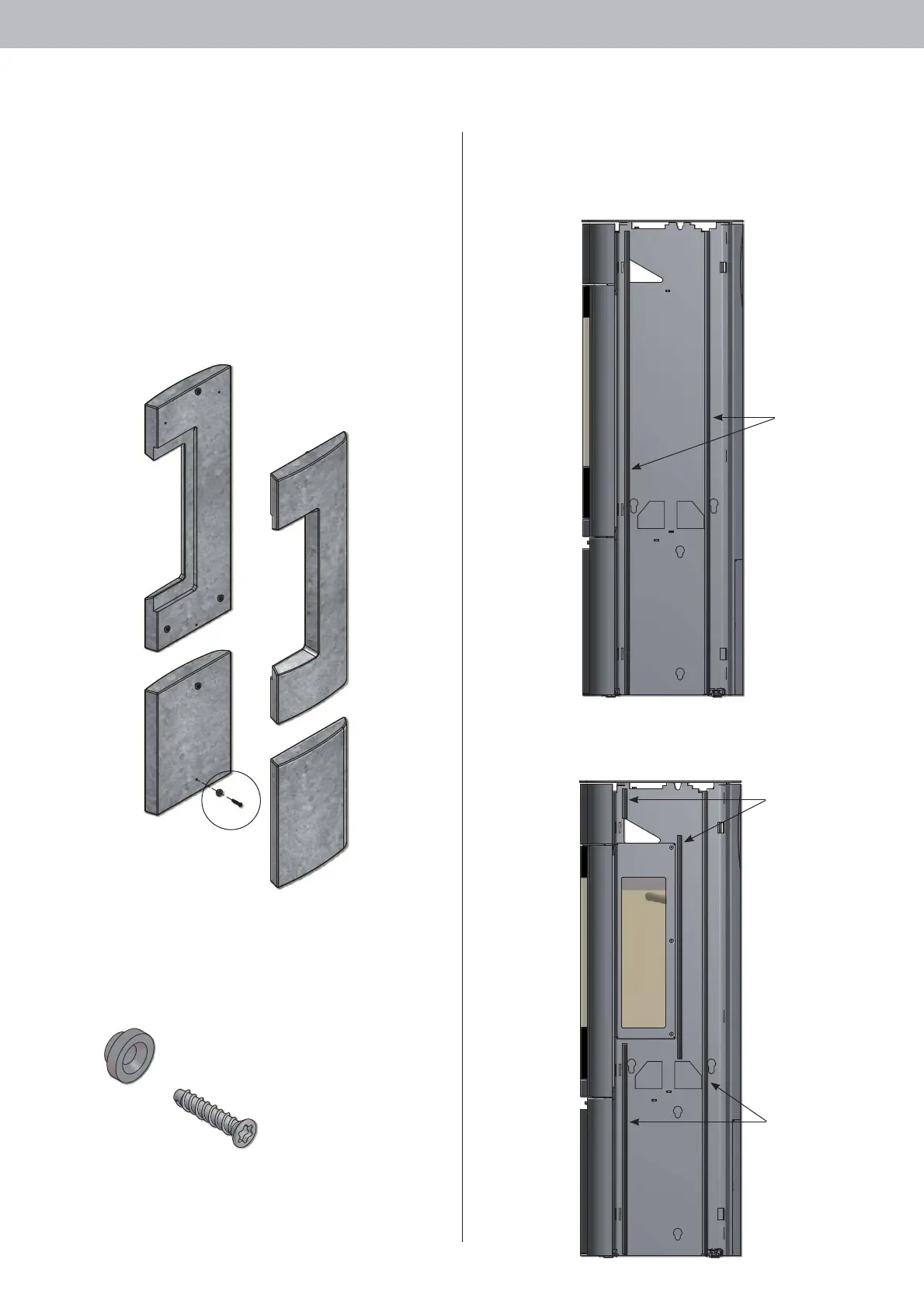

Scan 64-3 and Scan 64-4 are delivered with loose soap stone plates for
mounting on the sides of the stove.
Soap stone is a natural material, wherefore there might be differen-
ces in structure and form.
Each soap stone is to be mounted with distance bushings and screws
(pos. G). These are delivered together with the stove. Use a Torx screw-
driver for tightening the screws. You are not to use any electrical
tools, as this might tighten the screws too much, resulting in the soap
stones breaking.
10 distance bushings for soap stone
10 screws 6 x 30 mm for
soap stone
G
G
The delivered gasket (4,5 m) should be cut in appropiate lengths and
sticked onto the sides of the stove as shown below.
Scan 63-3 (without side windows)
Scan 63-4 (with side windows)
Gasket
Gasket
Gasket
