ASSEMBLY24

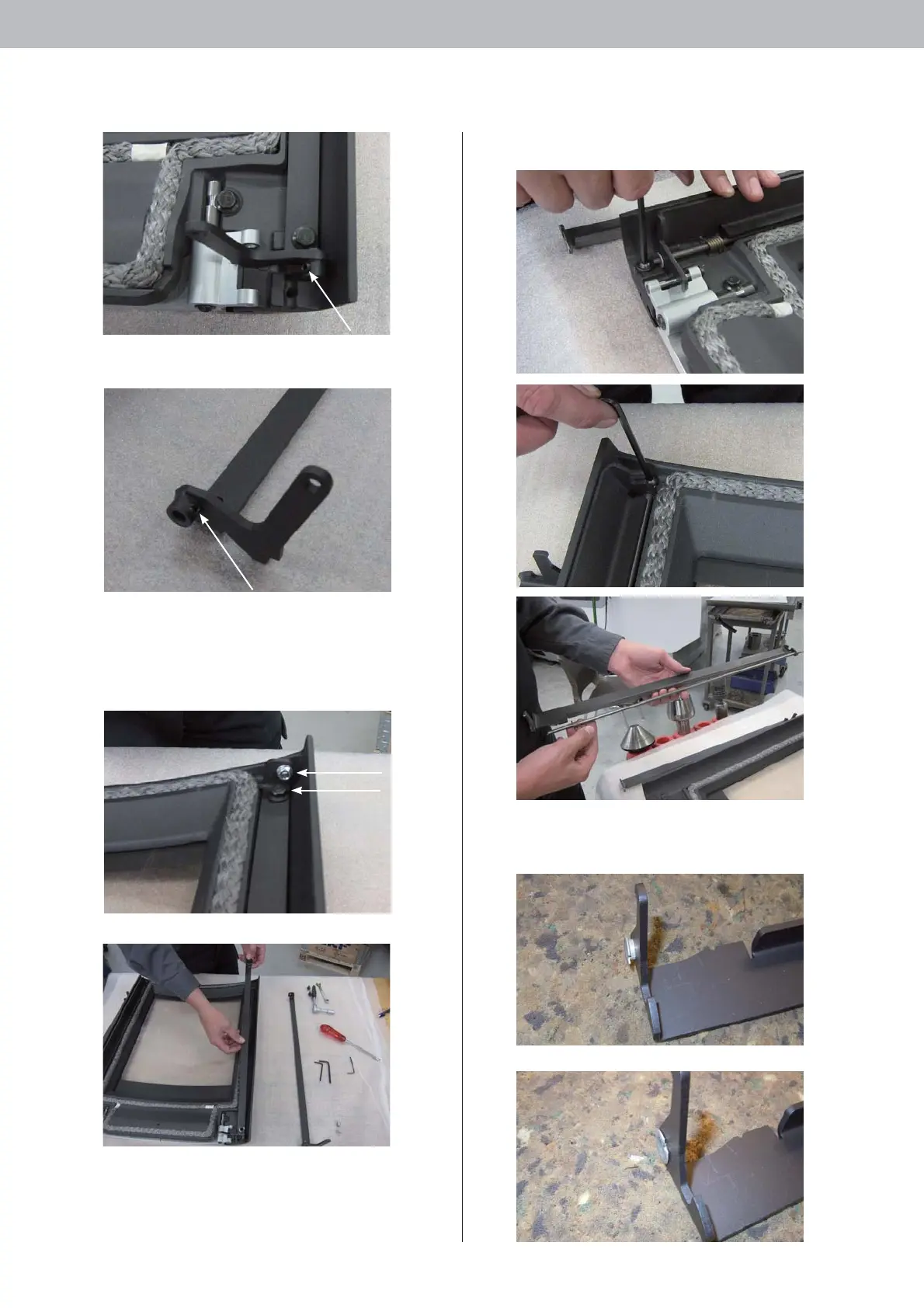

Remove the pointed screw M5x5 (1)
Screw the pointed screw M5x5 into the hinge clamp for the right-
hung door.
Remove the screws (2) in the hinge clamp and lift the clamp off the
door.
1
2
3
Lift the closing mechanism axle and rail off the door once the Allen
screws (3) have been removed.
Mount the two teflon bushings (delivered in the ash drawer) in the
rail for closing mechanism for right-hung door.
3
